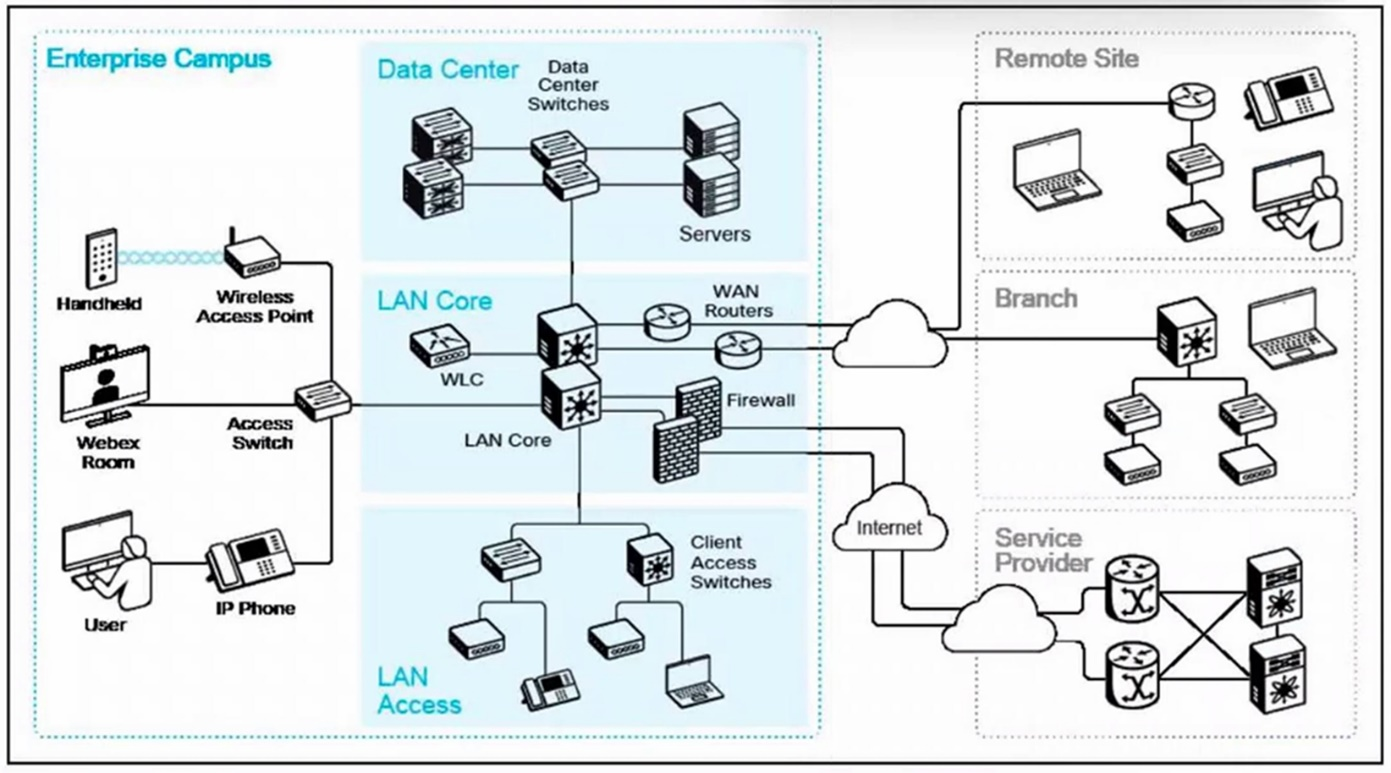

In enterprise networking, remote sites or branch offices connect to the central campus network using:

WAN Links: These are dedicated communication paths that connect geographically dispersed networks. WAN links can be leased lines, MPLS circuits, or other forms of long-distance connectivity that facilitate reliable data transmission between remote sites and the main campus.

IPsec VPN Tunnels: Internet Protocol Security (IPsec) VPNs provide secure, encrypted tunnels over the public internet, allowing remote sites to connect to the enterprise network securely. This method is cost-effective and widely used for connecting branch offices to the central network infrastructure.

Access layer switches (Option A) and LAN core switches (Option E) are components within a local network and do not facilitate remote connectivity. Ad hoc Wi-Fi networks (Option D) are temporary and lack the security and reliability required for enterprise-level remote connections.

The correct sequence for mounting a Cisco device in a rack is:

Install mounting brackets: Attach the appropriate rack-mount brackets to the sides of the device using the screws provided. This step prepares the device for secure installation in the rack.

Mount in rack: Carefully place the device into the rack, aligning the brackets with the rack posts, and secure it using the appropriate rack-mount screws.

Ground the device: After the device is securely mounted, connect the grounding wire to the chassis grounding point and then to the facility ground. This step ensures safety and compliance with electrical standards.

This sequence is recommended to ensure both the physical security of the device and the safety of personnel during installation.

The boot system command is used in global configuration mode to specify the source and filename of the Cisco IOS software image that should be loaded during the device's boot process. This command ensures that the device loads a specific IOS image, whether it's stored locally in flash or fetched from a TFTP server.

Syntax example:

boot system flash:c1900-universalk9-mz.SPA.157-3.M3.bin

boot image, boot ios, and boot source are invalid or non-existent in standard Cisco IOS.

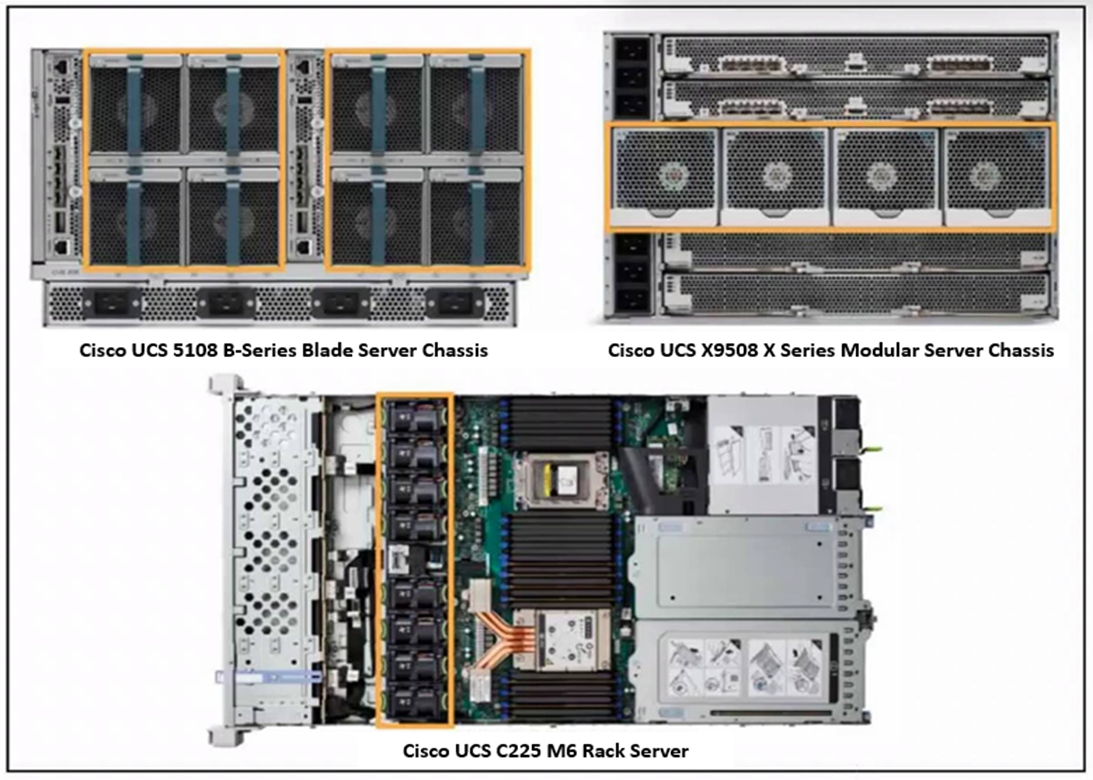

The highlighted components in all three Cisco UCS server models (5108 B-Series Blade Server Chassis, X9508 X Series Modular Server Chassis, and C225 M6 Rack Server) are fan modules, which are field-replaceable units responsible for cooling the system.

The highlighted components in the images correspond to cooling fans --- these are essential for maintaining optimal thermal conditions within each Cisco UCS server type. Here's a breakdown of what's visible in each:

Cisco UCS 5108 B-Series Blade Server Chassis: The highlighted vertical rectangular components are fan modules, which provide high-efficiency airflow for the densely packed blades.

Cisco UCS X9508 X-Series Modular Server Chassis: The front-facing fan trays are clearly marked, used to cool the modular nodes and shared infrastructure.

Cisco UCS C225 M6 Rack Server: The highlighted components on the side of the motherboard are also fan modules, directly responsible for cooling the CPU, memory, and other internal components.

These fans are field-replaceable units (FRUs) and are routinely accessed by technicians during preventive maintenance or fault replacement.

In a local area network (LAN), the primary function of a switch is to operate at Layer 2 (Data Link Layer) of the OSI model. Switches use MAC addresses to forward frames to the appropriate destination ports. This targeted forwarding mechanism divides the network into separate collision domains for each switch port. By isolating collision domains, switches significantly reduce the chance of collisions, enhancing the performance and efficiency of the network.

Unlike hubs, which forward all traffic to all ports (thus creating a single collision domain), switches intelligently forward only the necessary traffic to the correct port. This capability allows multiple simultaneous conversations on different switch ports without interference.

Routers, which operate at Layer 3 (Network Layer), are used to route packets between different networks, not within the same LAN. Wireless connectivity is provided by wireless access points (WAPs), not switches. Encryption is typically handled by security protocols or devices such as firewalls and not by switches directly.
