2026 Actual Cisco 300-630 Dumps, Updated Exam Questions for Guaranteed Pass

300-630 free sample questions and answers

Cisco 300-630 practice quiz with correct answers for search indexing.

1. Question 1

   In a Cisco ACI Multi-Site fabric, the Inter-Site BUM Traffic Allow option is enabled in a specific stretched bridge domain. What is used to forward BUM traffic to all endpoints in the same broadcast domain?

   Aingress replication on the spines in the source site


   Begress replication on the source leaf switches


   Cegress replication on the destination leaf switches


   Dingress replication on the spines in the destination site


   Correct answer: A

   In a Cisco ACI Multi-Site fabric, when the Inter-Site BUM Traffic Allow option is enabled in a specific stretched bridge domain, ingress replication on the spines in the source site is used to forward Broadcast, Unknown unicast, and Multicast (BUM) traffic to all endpoints in the same broadcast domain.This method ensures that BUM traffic is efficiently replicated across the fabric, reaching all relevant endpoints without overwhelming the network with unnecessary traffic4.




2. Question 2

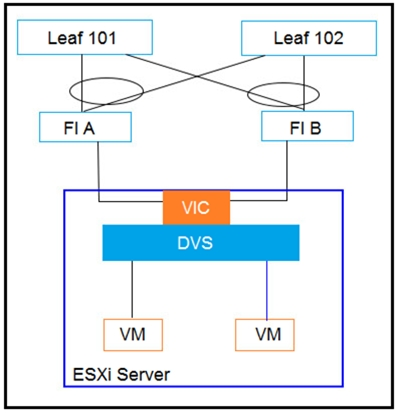

   Refer to the exhibit.



   Between Cisco UCS Fls and Cisco ACI leaf switches, CDP is disabled, the LLDP is enabled, and LACP is in Active mode. Which two discovery protocols and load-balancing mechanism combinations can be implemented for the DVS? (Choose two.)

   ACDP enabled, LLDP disabled, and LACP Active


   BCDP disabled, LLDP enabled, and MAC Pinning


   CCDP enabled, LLDP disabled, and MAC Pinning


   DCDP enabled, LLDP enabled, and LACP Active


   ECDP enabled, LLDP disabled, and LACP Passive


   FCDP disabled, LLDP enabled, and LACP Passive


   Correct answer: B, F

   In the given scenario where CDP is disabled, LLDP is enabled, and LACP is in Active mode between Cisco UCS FIs and Cisco ACI leaf switches for the DVS setup, the compatible discovery protocol would be LLDP since it's already enabled. As for load-balancing mechanisms with this setup: MAC Pinning can be used without relying on any link discovery protocol like CDP or LACP; hence option B is valid. Option F suggests using LACP in Passive mode, which could complement the existing Active mode on other devices to establish an LACP negotiation successfully.Reference: = Implementing Cisco Application Centric Infrastructure Official Cert Guide




3. Question 3

   An engineer must implement a full mesh Cisco ACI Multi-Site architecture. Which action must be taken on each spine to accomplish this goal?

   AConfigure BGP-EVPN Router-ID


   BConfigure Multi-Pod Data-Plane TEP


   CConfigure Overlay Unicast TEP


   DConfigure Overlay Multicast TEP


   Correct answer: A

   For a full mesh Cisco ACI Multi-Site architecture, configuring the BGP-EVPN Router-ID on each spine is essential.This configuration ensures unique identification and proper routing of traffic within the overlay network1




   https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/ white-paper-c11-739609.html

4. Question 4

   What does the VXLAN source port add to the overlay packet forwarding when it uses the hash of Layer 2, Layer 3, and Layer 4 headers of the inner packet?

   AECMP


   BTCP optimization


   Cdisabled fragmentation


   Djumbo frames


   Correct answer: A

   The VXLAN source port adds entropy to the overlay packet forwarding by using a hash of the inner packet's Layer 2, Layer 3, and Layer 4 headers.This entropy enables Equal-Cost Multi-Path (ECMP) routing, allowing for multiple parallel paths in the network, which increases bandwidth and redundancy2.




5. Question 5

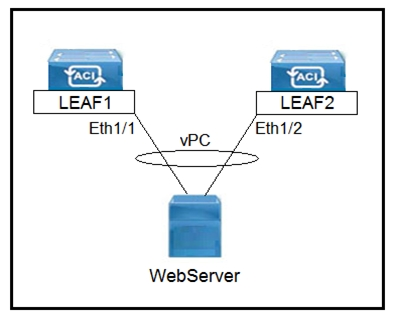

   Refer to the exhibit.



   Which three actions should be taken to implement the vPC in the Cisco ACI fabric? (Choose three.)

   ASelect a common vPC interface policy group


   BSelect individual interface profiles


   CSelect common interface profiles


   DSelect individual switch profiles


   ESelect common switch profiles


   Correct answer: A, C, E

   To implement the vPC (Virtual Port Channel) in the Cisco ACI fabric, one should select a common vPC interface policy group (Option A), select common interface profiles (Option C), and select common switch profiles (Option E). These steps ensure that both switches in a vPC domain are configured with consistent policies and profiles for interfaces and switches. This consistency is crucial for the proper functioning of a vPC setup where two or more links that are physically connected to two different Cisco ACI leaf switches appear as a single ''logical'' port channel to a third device, like the depicted WebServer.
