Cisco 300-610 Exam Dumps

Two key statements that describe Ethernet switching mode on Cisco UCS 6100 Series Fabric Interconnects are:

• Operates as a traditional switch: In Ethernet switching mode, the fabric interconnect functions as a conventional Ethernet switch with STP, VLAN support, and traditional Layer 2 switching features
• Supports multiple VLANs: The fabric interconnect can handle multiple VLANs on uplink ports and carry VLAN-tagged traffic to upstream network switches
• Requires external storage connectivity: Storage traffic must traverse external Fibre Channel infrastructure rather than being handled natively by the fabric interconnect
• Simplifies network integration: Ethernet switching mode allows easy integration with existing data center Ethernet networks without requiring specialized fabric knowledge
• Eliminates FC switching: Unlike FC switching mode, Ethernet mode dedicates fabric interconnect resources purely to Ethernet switching, not Fibre Channel
• Independent port functionality: Uplink ports function independently without requiring fabric clustering or failover mechanisms

The most important characteristics are that Ethernet switching mode provides traditional Layer 2 switching with VLAN support and straightforward integration with standard data center network designs, compared to the more specialized Fibre Channel switching capabilities of other modes.

When a Cisco ACI fabric is approaching prefix-capacity limits due to multiple tenant VRFs and VRF leaking, the solution is to consolidate and optimize the VRF architecture. Recommended approaches include:

• Tenant consolidation: Reduce the number of separate tenant network stacks where business requirements allow
• Hub-and-spoke VRF model: Implement a centralized shared services VRF that multiple tenant VRFs can communicate through, eliminating the need for full mesh VRF leaking
• Shared services VRF: Place common services (firewalls, load balancers, DNS) in a single VRF and route tenant traffic through them rather than leaking routes between every VRF pair

This reduces the total number of leaked routes and VRF instances, freeing prefix capacity on the switches.

Fibre Channel (FC) mode must be enabled on a Cisco UCS Fabric Interconnect to connect directly to a storage array.

When a Fabric Interconnect is configured in FC mode:

• It functions as a Fibre Channel switch with NPIV and NPV capabilities
• It can connect directly to Fibre Channel storage arrays using native Fibre Channel protocols
• It provides native SAN connectivity without requiring a separate Fibre Channel switch

This is in contrast to Ethernet mode, which provides only Ethernet and FCoE connectivity. FC mode enables the Fabric Interconnect to act as both a converged network device and a dedicated Fibre Channel fabric element for direct storage array connections.

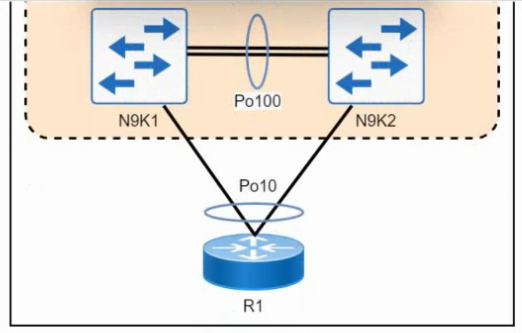

To enable two Cisco Nexus 9000 Series Switches to exchange OSPF routing information with R1:

• Enable OSPF: Configure OSPF on both Nexus 9000 switches with appropriate process IDs (preferably the same process ID as R1 for consistency).
• Configure OSPF Interfaces: Enable OSPF on the interfaces that connect to R1, specifying the correct area (typically Area 0 for backbone connectivity).
• Establish Adjacency: OSPF will automatically establish adjacencies with R1 once both devices are configured in the same area with matching network statements and configuration.
• Verify Connectivity: Once configured, use commands like 'show ip ospf neighbors' to verify that adjacencies are established and routing information is being exchanged.

This approach enables dynamic routing between the Nexus switches and R1, allowing them to share topology information and automatically calculate optimal paths.
