1. Question 1

   Your customer has 349 users in a two-story building.

   What are two benefits of a 2-Tier design? (Choose two.)

   ALayer 2 and Layer 3 protocols run close to the endpoints to better implement ACL and QoS policy at the edge.


   BImproved performance by offloading processing from the Access layer to the Core.


   CUse of layer 2 switches at the access layer can process and route traffic from attached APs.


   DSupport for WAN/MPLS, Internet, and Data Center directly on the Collapsed core.


   EProvides a more cost effective solution given that no additional switches are required for a third tier.


   Correct answer: A, E




2. Question 2

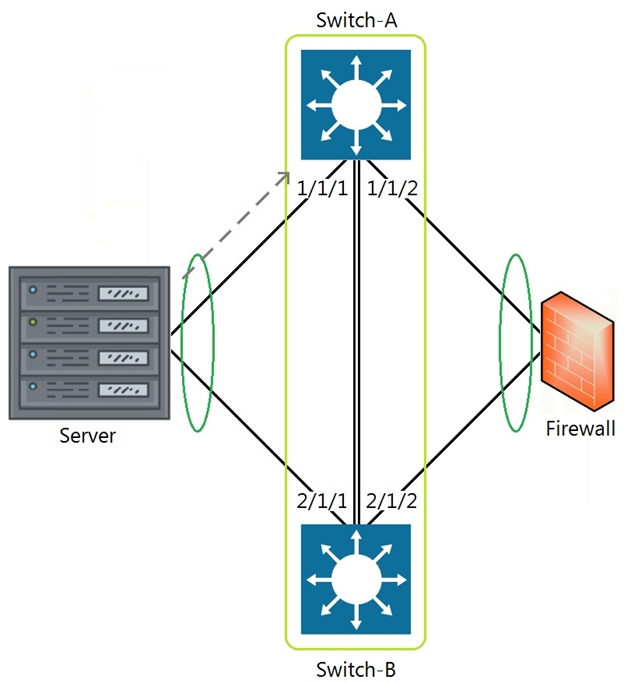

   Refer to the exhibit.



   The above scenario shows a packet from the Server destined for the Firewall. Switch-A and Switch-B are bundled as VSF stack. The LAG between the VSF stack and the firewall indicates a hash function to forward the packet on port 2/1/2.

   Which statement is true regarding how Switch-A will forward the packet?

   ASwitch-A will forward the packet on port 1/1/2. VSF will override the typical LAG hash function used for the physical interface selection.


   BSwitch-A will drop the packet. Multi-Chassis lag to multi-chassis lag is not a supported feature of VSF.


   CSwitch-A will encapsulate the packet using GRE to forward to Switch-B in order for the packet to egress on port 2/1/2 per the hash function.


   DSwitch-A will forward the packet along the VSF link to Switch-B so that it will egress on port 2/1/2 per the hash function.


   Correct answer: D




3. Question 3

   Aruba Access Points tunnel traffic in a campus to the Mobility Controller using which protocol?

   AControl and Provisioning of Wireless Access Points (CAPWAP)


   BGeneric Routing Encapsulation (GRE)


   CLightweight Access Point Protocol (LWAPP)


   DProcess Application Programming Interface (PAPI)


   Correct answer: B




4. Question 4

   You have completed a successful VSF stack between two switches.

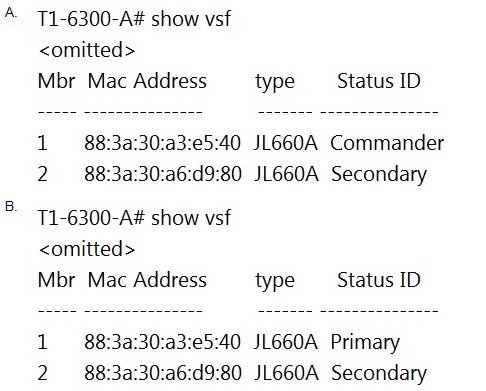

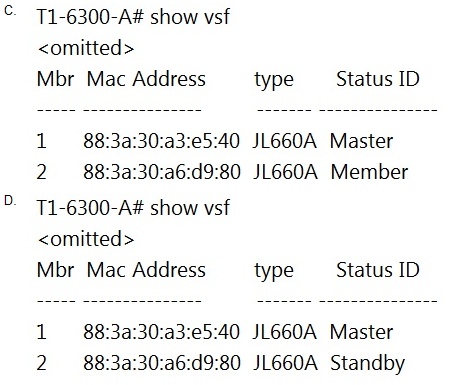

   Without manually assigning a backup switch, what is the expected output when issuing a show vsf command?





   AOption A


   BOption B


   COption C


   DOption D


   Correct answer: D




5. Question 5

   Core# configure terminal

   Core(config)# vrf Green

   Core(config-vrf)# exit

   Core(config)#

   Core(config)# interface vlan 50

   Core(config-if-vlan)# ?

   Given the configuration on the CORE switch shown above, what command would follow to assign the switched virtual interface (SVI) vlan 50 to the VRF created?

   ACore(config-if-vlan)# vrf attach Green


   BCore(config-if-vlan)# ip vpn-instance Green


   CCore(config-if-vlan)# ip vrf forwarding Green


   DCore(config-if-vlan)# routing-context Green vrf


   Correct answer: A
