The BIM manager should restore the linked instance to its previously defined shared-site position. Selecting the appropriate Shared Site and choosing to move the instance to that defined site reapplies the established coordinate transformation, including the intended horizontal position, elevation, and orientation. This is substantially more reliable than attempting to reconstruct the placement manually.

Using the Move command would rely on visual alignment or manually entered offsets and might not reproduce the original coordinate relationship precisely. Even a small positional or rotational error could affect consultant overlays, federated coordination, survey references, and downstream exports.

Publishing coordinates is not the appropriate recovery action after the link instance has been accidentally dragged. Publishing from the incorrectly positioned instance could redefine or overwrite the coordinate relationship based on the displaced location rather than restore the approved position. The source CAD file itself has not changed, so requesting that the consultant revise and resubmit it would not address the actual cause.

After restoring the defined site position, the BIM manager should verify the alignment against known control points and repin the link to prevent further unintended movement.

Reference topics: Shared coordinates; named Shared Sites; linked CAD positioning; coordinate recovery; link pinning; site-control verification.

The DWG should be cleaned in AutoCAD before it is accepted as a Revit link. Setting PROXYGRAPHICS=1 preserves graphical representations of custom or proxy objects so that applications without the originating object enabler can display the relevant geometry. PURGE ALL removes unused layers, blocks, linetypes, text styles, registered applications, and other unreferenced definitions that unnecessarily increase file complexity.

AUDIT identifies and repairs database errors, while OVERKILL removes duplicate or overlapping lines and can consolidate redundant geometry. Together, these operations reduce the amount of irrelevant data Revit must interpret when loading and regenerating the linked file.

Deleting every XREF may remove required design information, while changing fonts does not resolve database corruption or excessive geometry. Deleting all text and exploding all geometry is destructive and commonly increases the number of individual entities, making performance worse. Setting PROXYGRAPHICS=0 can prevent required custom-object representations from being retained for downstream display.

The cleaned DWG should also be limited to the required layers and extents, checked for correct units and coordinates, and linked rather than imported wherever feasible.

Reference topics: DWG preparation; linked versus imported CAD; PURGE; AUDIT; OVERKILL; proxy graphics; Revit model-performance management.

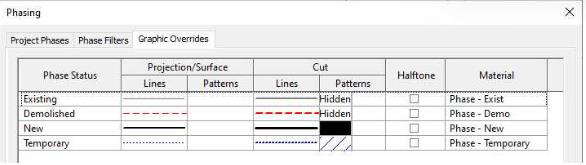

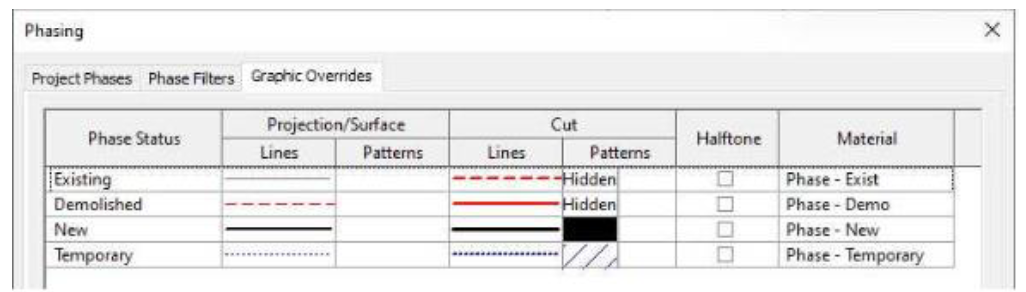

Exhibit 1 correctly assigns a red dashed line pattern to the Demolished phase status for both Projection/Surface Lines and Cut Lines. This is required because demolished elements may appear either in projection or in section, depending on the view orientation and whether the element is intersected by the view's cut plane.

Configuring only Projection/Surface Lines would leave demolished elements displayed differently when cut. Conversely, changing only Cut Lines would not produce the required standard in elevations, plans, or other views where the elements are viewed in projection. The phase graphic override must therefore consistently define the colour and line pattern in both graphical conditions.

This setting belongs in the firm's Revit project template so that future projects inherit the standard. The corresponding phase filters must also be configured to apply the Demolished override in relevant demolition and construction views. A graphic override does not operate independently; the active phase and phase filter determine whether an element is classified and displayed as existing, demolished, new, or temporary.

Reference topics: Revit phasing; Phase Graphic Overrides; demolished-element standards; phase filters; projection and cut graphics; corporate project templates.

Repositioning the authoritative civil site resource relative to the established building model and then publishing the revised positional relationship is the least disruptive approach. At Design Development, multiple disciplines may already have linked the building model, established views, placed annotations, configured worksets, and coordinated systems around its current internal geometry. Physically moving all building elements would therefore create extensive risk, including displaced annotations, broken constraints, altered links, and inconsistent consultant coordination.

Publishing the updated position preserves the controlled relationship between the project model and the site resource without requiring each discipline to relocate its authored geometry manually. The revised coordinate relationship can then be distributed through the established shared-coordinate workflow.

Specify Coordinates at Point is not appropriate merely because a setback changed; it can redefine the project's coordinate basis based on an isolated point rather than maintaining the managed relationship with the civil reference. Resetting coordinates and reacquiring them is substantially more disruptive because it discards the existing shared-coordinate relationship and can affect every connected model. Moving all model elements is the highest-risk option because it changes design geometry rather than correcting the external positional reference.

Reference topics: Shared coordinates; civil-site coordination; Publish Coordinates; model positioning; geolocation governance; change management during design development.

Models approaching 1 GB represent a significant operational risk, particularly when the project has already missed a major documentation milestone. The BIM manager should coordinate a controlled health-improvement programme with the project team rather than make unilateral changes. This includes reviewing and purging genuinely unused content, removing redundant views, evaluating imported files and excessive families, and prioritizing warnings that affect performance, accuracy, or documentation reliability.

Purging must be performed carefully because apparently unused content may still be required for future deliverables or corporate standards. The team should preserve backups and validate the model after each significant cleanup operation.

Creating a separate sheet model is a major restructuring decision and should not be imposed merely because of file size. Daily auditing and compacting can add unnecessary disruption and does not correct poor authoring practices. Ignoring the problem because users have not formally complained is unacceptable; the missed deadline and excessive model size are objective warning signs. Assigning several BIM managers to eliminate every warning is also disproportionate because not all warnings carry equal risk.

Reference topics: Model-health management; Revit file-size control; Purge Unused; view management; warning prioritization; project-team coordination; performance risk.
