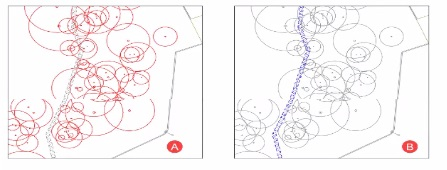

To achieve the desired appearance where the trail system is blue and all other content is gray in Viewport B, the designer needs to utilize the viewport layer properties.

Open the Layer Properties Manager:

Type LAYER in the command line and press Enter.

Modify VP Layer Colors:

In the Layer Properties Manager, find the layers that need to be changed (the trail system and other content layers).

Select the specific viewport (Viewport B) from the 'Viewport Overrides' column.

Change the Colors for Viewport B:

For the trail system layer, set the color to blue.

For all other layers, set the color to gray.

This can be done by double-clicking the color cell in the 'VP Color' column and selecting the desired color.

Apply Changes:

Close the Layer Properties Manager after making the necessary changes. The viewport overrides will apply, showing the trail system in blue and other content in gray in Viewport B.

AutoCAD Help: Layer Property Overrides in Viewports - Autodesk Knowledge Network

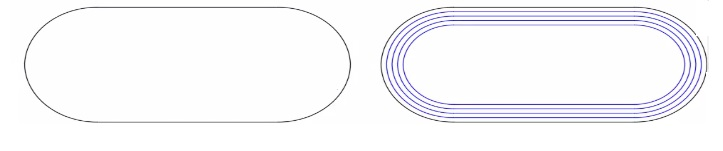

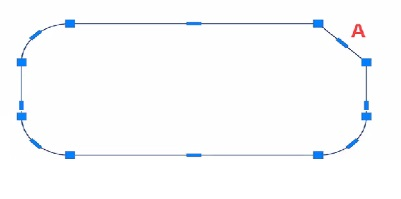

To create multiple parallel lines (lanes) for a running track using the OFFSET command in AutoCAD, and to ensure they are placed on the current layer (LANES), follow these steps:

Initiate the OFFSET command:

Type OFFSET in the command line and press Enter.

Set the offset distance:

When prompted for the offset distance, type 10 and press Enter.

Use the Layer option:

To place the offset lines on the current layer, type L for Layer and press Enter.

Select Current to ensure the new offset lines are created on the current layer (LANES).

Select the Multiple option:

To create multiple offsets at the same distance, type M for Multiple and press Enter.

Create the offsets:

Select the polyline (outside lane) as the object to offset.

Click to the side where the offsets are to be created (inside of the original polyline).

Repeat the clicks to create the necessary number of lanes.

This method ensures that each new lane is created at a consistent distance of 10 units from the previous one and that all new lanes are placed on the current layer.

AutoCAD OFFSET Command: Creating Multiple Offsets - Autodesk Knowledge Network

Issue with PDF Text Objects:

When importing a PDF into AutoCAD, text objects may be converted to polylines.

This happens because AutoCAD interprets the text as vector graphics rather than editable text.

Conversion Process:

Option A: The Combine Text tool (TXT2MTXT) is used to combine multiple text objects into a single multiline text object. It does not convert polylines back to text.

Option C: The Edit Polyline (PEDIT) command and Join option are used to join polylines, not convert them to text.

Option D: The JOIN command is similar to PEDIT and is used for joining polylines.

Correct Tool:

Option B: The Recognize SHX Text tool (PDFSHXTEXT) is specifically designed to recognize text that has been converted to polylines during PDF import. It converts these polylines back into text objects.

Conclusion:

Use the Recognize SHX Text tool to select all polyline text objects and convert them back to editable text.

AutoCAD Knowledge Base on PDF Import and Text Recognition.

AutoCAD 2024 User Guide on PDF Import Tools.

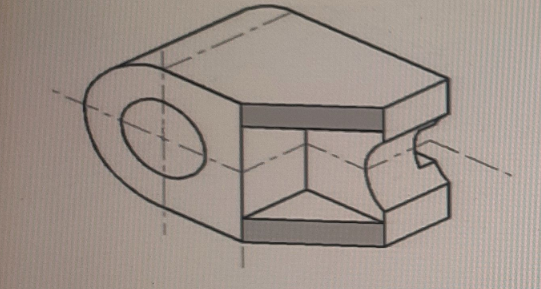

The UCS is a moveable Cartesian coordinate system that establishes the XY work plane, horizontal and vertical directions, axes of rotation, and other useful geometric references1.You can change the UCS origin and orientation for convenience as you specify points, enter coordinates, and work with drawing aids1.

The face option sets a new UCS based on a selected face of a 3D solid object2.This option will align the XY plane of the UCS with the selected face and show its correct size and shape2.

To ensure that the 'Walls' layer is not visible while drafting, the appropriate property to set is 'Layer Off.' This will make the entire layer invisible in the drawing.

Layer Off:

Effect: Turns off the visibility of the layer in the drawing, making it not visible.

Usage: This is useful when you want to hide certain elements temporarily without affecting the actual data or properties of the elements on that layer.

Layer Freeze:

Effect: Similar to 'Layer Off,' but additionally, it removes the layer from memory, which can improve performance in large drawings. However, 'Layer Freeze' is not the primary choice when only visibility control is needed.

Layer Lock:

Effect: Prevents editing of the layer's content but does not hide it from view.

Usage: Useful when you want to protect the layer's content from accidental modifications.

Layer Unlock:

Effect: Opposite of 'Layer Lock,' allows editing of the layer's content.
