You are asked to create a Claim service that is capable of retrieving insurance claim records. To fulfill this requirement, you first define an XML schema that describes the structure of the messages. The request message that is sent to the service will need to be based on a "ClaimLookup" element that contains the claim number within a "claimNumber" child element. The response message sent from the service needs to be based on the "ClaimLookupResponse" element that contains the same "claimNumber" element along with the "claimAmount" and "claimStatus" child elements. The schema (named "Claims.xsd") looks like this:

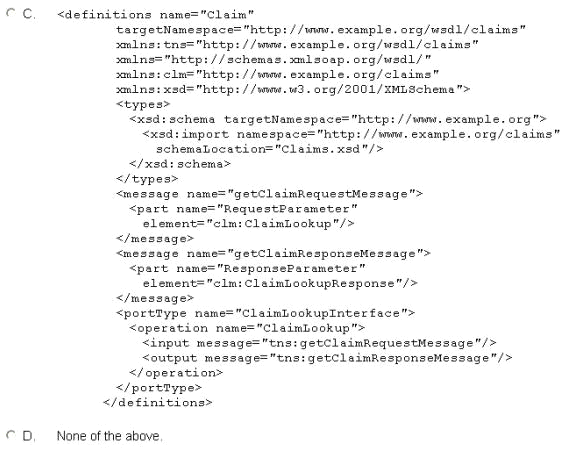

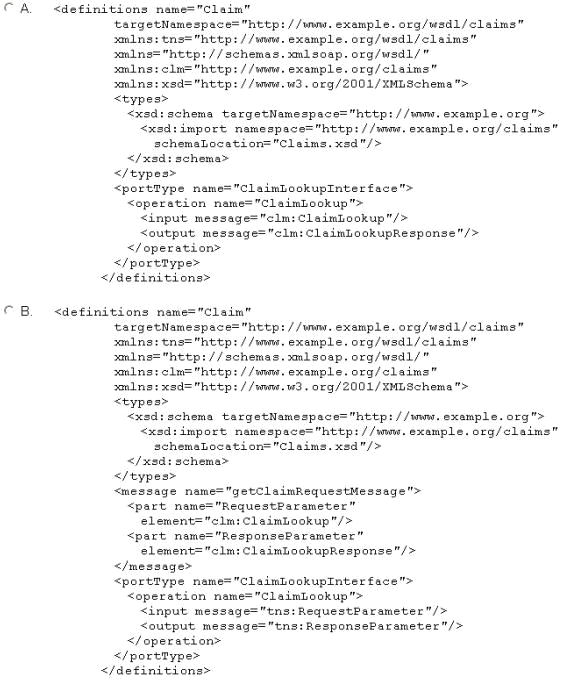

Your next task is to define the WSDL definition for the Claim service. Which of the following WSDL definitions correctly incorporates the above schema?

Show Answer Hide Answer

You are asked to build a newTimesheet service that needs to provide centralized access to timesheet-related data access functions. Because the service delivery project team follows a "contract-first" approach when building any service, you and your group of developers are asked to create a WSDL definition that will need to import an existing "Employee.xsd" schem

a. Furthermore, in order to comply with established design standards and conventions, you are given the following instructions as to how the WSDL definition must be designed:

* It must contain a "message" element for the request message with the name "getWeeklyHoursRequestMessage". The "message" element must contain a "part" element that references the "EmployeeHoursRequestType" element defined in the imported XML schema.

* It must contain a "message" element for the response message with the name "getWeeklyHoursResponseMessage".The "message" element must contain a "part" element that references the "EmployeeHoursResponseType" element defined in the imported XML schema.

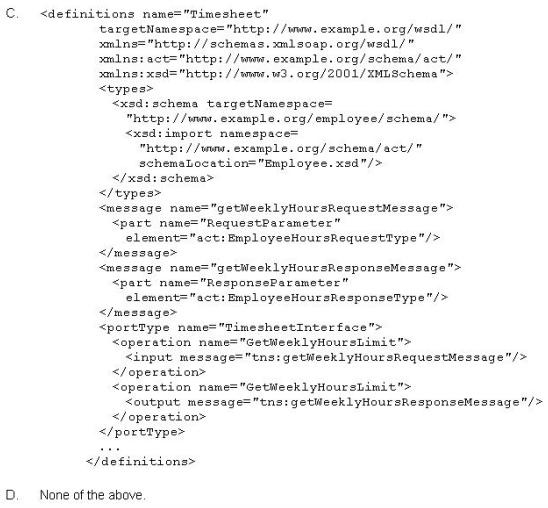

* It must contain a "portType" element called Timesheetlnterface" that contains an "operation" element called "GetWeeklyHoursLimit", an "input" element referencing the request message and an "output" element referencing the response message.Three of your junior developers take on this assignment. At the end of the day, each developer presents you with a different WSDL definition. Which of the following is a correctly designed WSDL definition that also complies with the above instructions?

Show Answer Hide Answer

A partner organization has been trying to send an invoice XML document as part of a SOAP message to your Invoice service. The IT people at the partner organization are convinced that the invoice XML document is correctly structured and contains valid data. However, the SOAP message has been repeatedly rejected by your Invoice service. Someone from the partner organization e-mails you the following XML document fragment that was extracted from the SOAP message:

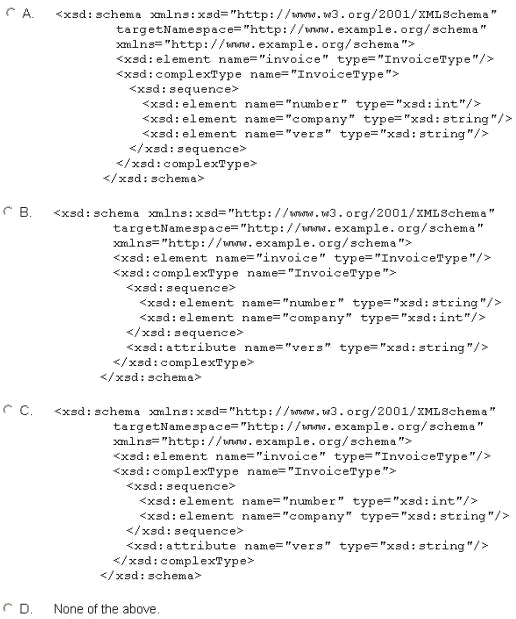

Subsequent to some further investigation, you determine that you are actually supporting four different versions of the Invoice WSDL definition, each with a different XML schema. Which of the following XML schemas will successfully validate the above XML document fragment?

Show Answer Hide Answer

Your company has developed an Articles service that will allow authors to submit article documents. The service currently provides a "SubmitArticle" operation that only accepts a request message but does not respond with a response message. The request message sent to the service is based on an "article" element that includes information about the article, as well as its content. Below are the "message" and "portType" elements from the current WSDL definition for the Articles service:

Authors have requested that this service be updated to issue an acknowledgement message as a response after an article is submitted. You are asked to make this update. You begin by adding an "art:acknowledgement" element to the XML schema. Now you must update the WSDL definition. Which of the following shows how the above "message" and "portType" elements are correctly updated to fulfill these requirements?

Show Answer Hide Answer

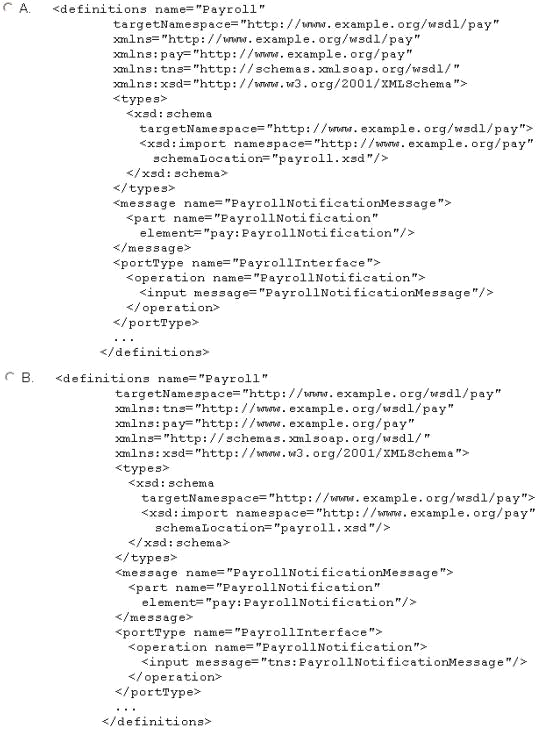

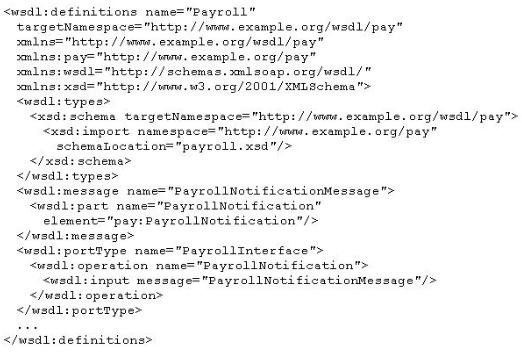

You have written the following WSDL definition to describe the Payroll service, which provides a "PayrollNotification" operation that sends out employee payroll information:

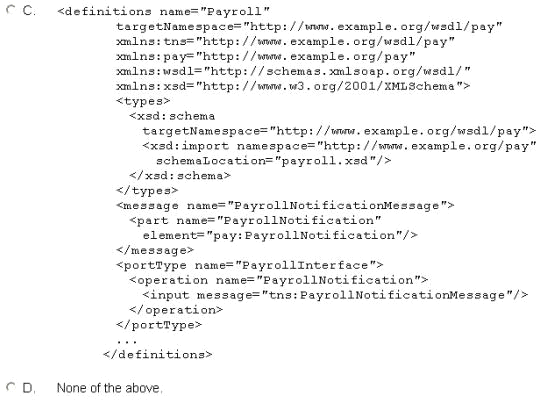

Subsequent to a review by the enterprise architecture team, you are notified that although this WSDL definition is technically correct, it is not in compliance with current internal design standards. Specifically, it is a current convention for the WSDL namespace to be the default namespace, rather than using the "wsdl" prefix. Furthermore, another design standard dictates that the "Ins" always be used to represent the target namespace. Which of the following WSDL definitions have been correctly revised to comply with the design standards?

Show Answer Hide Answer
