A ''Loss too low'' message can be displayed after a power adjustment has been provided if there is an issue with unstable optical power levels. Unstable optical power levels can be caused by various factors, such as environmental conditions, fiber aging, equipment malfunction, or configuration errors. Unstable optical power levels can affect the accuracy and reliability of the power adjustment process, which relies on measuring the optical loss between two points in the network. A ''Loss too low'' message means that the measured optical loss is lower than the expected value, which can indicate a problem with the optical signal quality or integrity. The other issues are incorrect because they either cause a different type of message or do not affect the power adjustment process.Reference:Nokia Optical Diagnostics and Troubleshooting Course,OAM and Diagnostics Guide

The commandshow wavekey wtmonitor 1/6/LINE summarydisplays a list of all channels detected against the selected interface (in and out); it shows if a Wave Keys pair is expected, if a Wave Keys pair is received, and if the received Wave Keys pair is unexpected. A Wave Keys pair is a pair of unique identifiers that are transmitted along with an optical channel to provide channel identification and monitoring functions. The command can be used to verify the presence and correctness of the Wave Keys pairs on an interface and to detect any mismatch or misconfiguration. The other options are incorrect because they either describe a different command or provide incorrect information.Reference:Nokia Optical Diagnostics and Troubleshooting Course,OAM and Diagnostics Guide

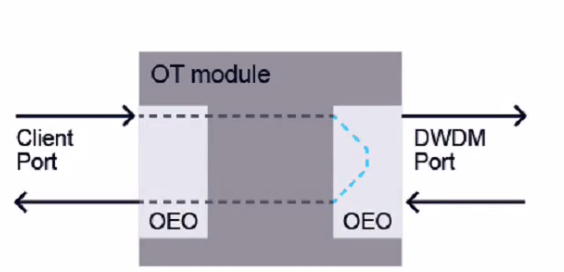

The exhibit shows a diagram of an OT module with a client port and a DWDM port. The client port is looped back to itself with an OEO (Optical-Electrical-Optical) device. This means that the signal received by the client port is converted to an electrical signal, then back to an optical signal, and then transmitted back to the same port. This type of loopback is called a client port terminal loopback.It is used to test the functionality of the client port without involving the DWDM port or any other network element4. A client port facility loopback would involve looping back the signal from the DWDM port to the client port. A line port facility loopback would involve looping back the signal from another OT module or network element to the DWDM port.A line port terminal loopback would involve looping back the signal from the DWDM port to itself5.Reference:Nokia Optical Diagnostics and Troubleshooting Course | Nokia,Loopback - Wikipedia

The exhibit shows a diagram of a network with two nodes, Node A and Node B, connected by a fiber span. The diagram also shows the power readings at different points of the span. The calculated span loss from Node A to Node B is the difference between the output power at Node A and the input power at Node B. According to the diagram, the output power at Node A is +3.5 dBm and the input power at Node B is -4.5 dBm. Therefore, the span loss from Node A to Node B is 3.5 - (-4.5) = 8.0 dB.

When assessing optical signal quality and link health via EPT reports, the critical parameters are OSNR (Optical Signal-to-Noise Ratio), Q-factor, and pre-FEC Bit Error Rate. These parameters directly indicate the quality of the optical signal before forward error correction is applied. OSNR and Q-factor provide real-time insight into signal degradation caused by noise, dispersion, or attenuation—helping you distinguish signal-quality issues from configuration problems. Pre-FEC BER shows raw bit errors before correction, which is essential for detecting whether errors are within acceptable limits or indicate imminent link failure.

The other options represent layer 2/layer 3 metrics, port configuration details, or buffer management statistics—none of which directly measure optical signal integrity. While these may be useful in other troubleshooting scenarios, they do not help diagnose the optical signal quality issue described in the scenario.
