Huawei H12-821_V1.0 Exam Dumps

When routes are imported into BGP using the import-route command, the origin attribute is set to incomplete by default. This indicates that the route's origin is not known or is from an external source, as opposed to being explicitly learned through an IGP (IGP) or EGP (EGP) protocol .

The command output confirms that the VLANs with IDs 2 and 4 are part of the VLAN pool named 'STA.' The VLAN pool concept is used to allocate VLANs dynamically to devices or subnets, which reduces broadcast domain size and improves network efficiency. The total number of VLAN pools is unrelated to this output, and the assignment algorithm (hash or even) is not explicitly mentioned in the output. Huawei VLAN pool management references align with this analysis .

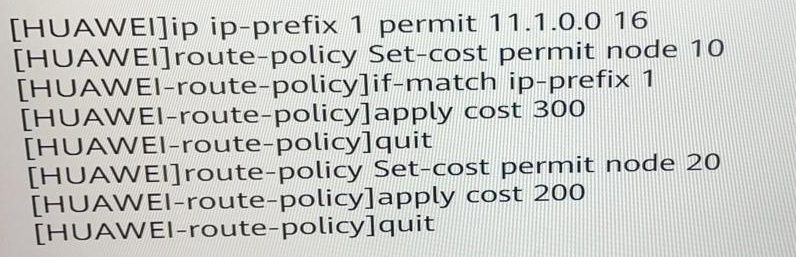

Routing policies are used to control how routes are imported, advertised, or received. Policy-Based Routing (PBR) is used to forward packets based on policies, bypassing the routing table. Routing policies are not used for packet forwarding .

For single-hop BFD (Bidirectional Forwarding Detection), the configuration must include the local and remote discriminators to uniquely identify the session endpoints. Additionally, enabling BFD globally is a prerequisite for initiating BFD sessions. Configuring multicast IP addresses is unnecessary for single-hop BFD, as it operates over direct links. Huawei's configuration guidelines specify these requirements to ensure effective deployment and operation of BFD.

* Understanding BFD (Bidirectional Forwarding Detection):

BFD is a protocol used to detect link faults quickly between two routers.

Single-hop BFD operates on directly connected links and is commonly used for fast fault detection in routing protocols like OSPF and BGP.

* Mandatory Configurations for Single-Hop BFD:

A . Configure the remote discriminator of a BFD session:

The remote discriminator is used to uniquely identify the BFD session at the remote end. This is essential for session establishment.

B . Configure the local discriminator of a BFD session:

The local discriminator uniquely identifies the BFD session at the local end. This is required to establish a BFD session.

D . Enable BFD globally:

BFD must be enabled globally on the router for the protocol to operate and for session configurations to take effect.

* Optional Configuration:

C . Configure a multicast IP address for BFD:

This is not required for single-hop BFD, as it operates over direct links using unicast communication. Multicast is used in other scenarios, like multi-hop BFD.

* Conclusion:

The correct configurations for single-hop BFD are A, B, and D.

The virtual MAC address for a VRRP virtual router is determined by the formula 00-00-5E-00-01-[VRID in hexadecimal]. For VRID 3, the hexadecimal equivalent is 03. Thus, the virtual MAC address is 00-00-5E-00-01-03 .
