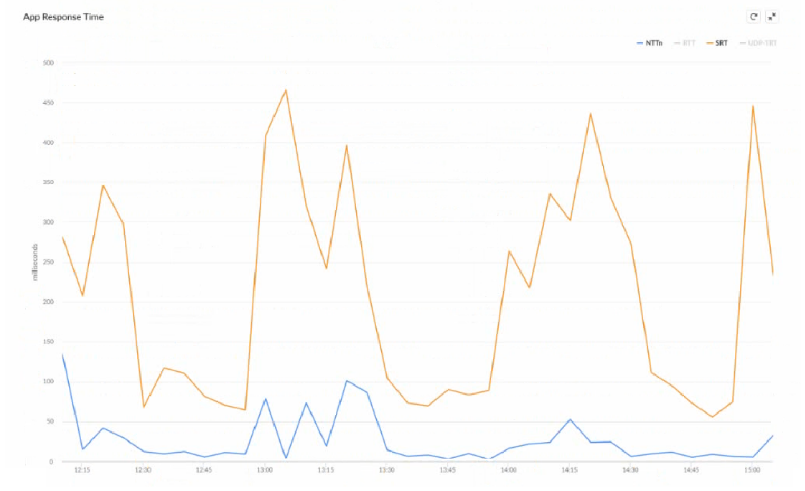

Comprehensive and Detailed Explanation

Prisma SD-WAN utilizes a hierarchical QoS model (typically based on Hierarchical Token Bucket or similar shaping algorithms) to manage bandwidth contention.

Guaranteed Bandwidth: The 'Platinum' class (used for Real-Time voice/video) is assigned a guaranteed bandwidth percentage (floor) in the QoS profile. This ensures that even if 'Gold' (Transactional) or 'Silver' (Bulk) traffic is trying to consume 100% of the link, the scheduler reserves the specific portion (e.g., 30%) for Platinum traffic, preventing starvation.

Shaping, not Policing: Unlike simple policing which drops excess traffic hard, the ION device shapes the egress traffic. If the link is congested, the scheduler delays the lower-priority packets (buffering) to allow the high-priority Platinum packets to exit immediately.

Why not Strict Priority (A)? While Platinum behaves like a priority queue, pure Strict Priority can completely starve lower queues if the high-priority traffic is misbehaving or voluminous. Prisma SD-WAN typically uses bandwidth guarantees (floors) and limits (ceilings) to ensure fair sharing while protecting critical apps.

Comprehensive and Detailed Explanation

The ION 9000 is the flagship high-performance hardware model designed for large Data Centers and Campus Cores.

10GbE Connectivity (C): The defining hardware differentiator for the ION 9000 is its inclusion of multiple 10 Gigabit Ethernet (SFP+) interfaces. This allows it to interconnect with Data Center core switches at 10Gbps speeds, supporting the multi-gigabit aggregate throughput required for hub sites aggregating traffic from hundreds of branches.

ION 3000: The ION 3000 is a branch-tier device limited to 1 Gigabit Ethernet (copper/SFP) interfaces.

Bypass Pairs (B): Both models (and others like ION 2000/7000) support Bypass Pairs.

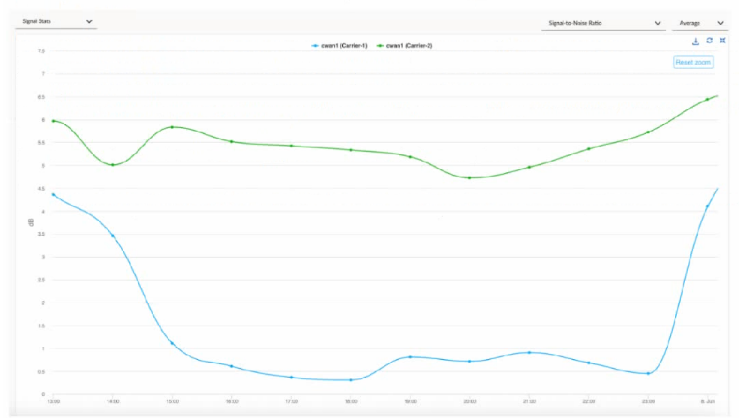

LTE/PoE (A/D): These are typically features of smaller branch/edge models (like ION 1200), not the high-end DC concentrators.

Comprehensive and Detailed Explanation

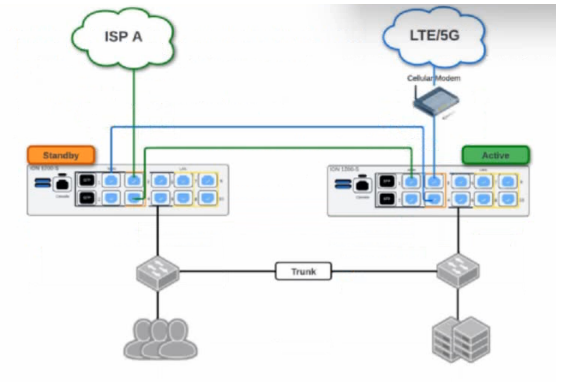

The Bypass Pair feature on Prisma SD-WAN ION devices (specifically supported models like ION 2000, 3000, 7000, 9000) is a hardware-based resiliency mechanism known as Fail-to-Wire.

Operation: A 'Bypass Pair' logically groups two physical interfaces (e.g., WAN 1 and LAN 1). Under normal operation, the ION processes traffic between them.

Power Loss: In the event of a total power loss (or critical software failure), a mechanical relay inside the device physically closes the circuit between the two ports.

Result: This creates a direct electrical connection (like a patch cable) between the upstream device (ISP Modem) and the downstream device (Legacy Firewall or Router). This ensures that internet connectivity is preserved for the site, even if the SD-WAN appliance is completely dead. This is critical for single-point-of-failure deployments where maintaining basic dial-tone is more important than SD-WAN optimization during a hardware outage.

Comprehensive and Detailed Explanation

Prisma SD-WAN (formerly CloudGenix) integrates with Palo Alto Networks IoT Security to provide comprehensive visibility into all devices at a branch, including those that are not directly connected to the ION device. While the ION automatically detects and classifies devices connected directly to its interfaces via traffic inspection (DPI), DHCP, and ARP analysis, gaining visibility into off-branch devices (devices connected to downstream switches or access points) requires additional discovery mechanisms that can query the network infrastructure or ingest its logs.

1. SNMP (Simple Network Management Protocol): This is the primary active discovery method for off-branch devices. The Prisma SD-WAN ION device acts as a sensor that actively polls local network switches and wireless controllers using SNMP. By querying the ARP tables and MAC address tables (Bridge MIBs) of these intermediate network devices, the ION can identify endpoints that are connected to the switch ports, even if those endpoints are not currently sending traffic through the ION. This allows the system to map the topology and discover silent or lateral-traffic-only devices.

2. Syslog: In conjunction with SNMP, the IoT Security solution can utilize Syslog messages to discover and profile devices. Network infrastructure devices (like switches and WLAN controllers) can be configured to send Syslog messages to the collection point (which enables the IoT Security service) whenever a device connects or disconnects (e.g., port up/down events, DHCP snooping logs, or 802.1x authentication logs). These logs provide real-time data about device presence and identity (MAC/IP mappings) for devices that are not directly adjacent to the ION, ensuring 100% visibility across the branch network segments. LLDP (A) and CDP (B) are typically Link Layer discovery protocols used for discovering directly connected neighbors and do not propagate beyond the immediate link, making them unsuitable for discovering devices multiple hops away or behind a switch.

Comprehensive and Detailed Explanation

In Prisma SD-WAN Path Policies, the Service & DC Group (Destination) field determines where the traffic is sent.

Direct: This is the specific keyword/object used to instruct the ION to route traffic directly out to the local WAN interface (Local Breakout) towards the Internet, without encapsulation in a VPN tunnel. This is the correct setting for Guest Wi-Fi, SaaS applications (like Office 365), or any public web browsing that does not need to be backhauled.

Standard VPN / Default-Cluster: These options direct traffic into an IPSec overlay tunnel destined for a Data Center or another ION. Selecting these would 'backhaul' the guest traffic, which contradicts the requirement for DIA.

When 'Direct' is selected, the ION uses its available 'Internet' category links. The policy can further specify which internet link to use (e.g., 'Use Broadband, avoid LTE') via the path preference list, but the Destination type must be 'Direct'.
