The error message in the image indicates that the cluster creation failed due to reaching the maximum retries for provisioning cluster nodes. Here are two possible scenarios that could lead to this issue:

Insufficient Permissions (Answer B):

If the AWS user or role used to create the cluster does not have sufficient permissions, it can result in failures during the provisioning process. Proper IAM policies must be attached to ensure that the necessary actions can be performed, such as launching instances, creating VPCs, or managing networking components.

AWS Quota Exceeded/Instance Limit Exceeded (Answer D):

AWS imposes quotas and limits on the number of instances and other resources that can be created within an account. If these quotas are exceeded, new instances cannot be provisioned, causing the cluster creation to fail. This can be resolved by requesting a quota increase from AWS.

Nutanix Knowledge Base Article 9774

AWS Service Quotas

Nutanix NC2 on AWS Documentation

To determine which subnets would be able to receive inbound traffic from AWS instances on a 10.0.0.0/22 network segment, we need to look at the configured subnets and their CIDR ranges, as well as the custom network security group's inbound rules.

Available CIDR ranges in VPC:

70.73.0.0/16

10.79.107.0/24

10.0.0.0/22

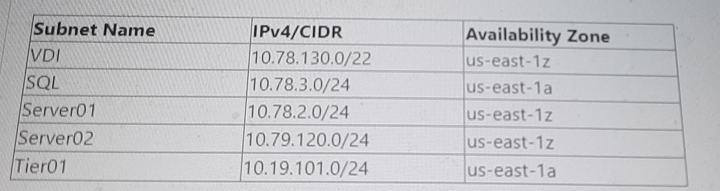

Configured Subnets in NC2 AWS VPC:

VDI: 10.78.130.0/22

SQL: 10.78.3.0/24

Server01: 10.78.2.0/24

Server02: 10.79.120.0/24

Tier01: 10.19.101.0/24

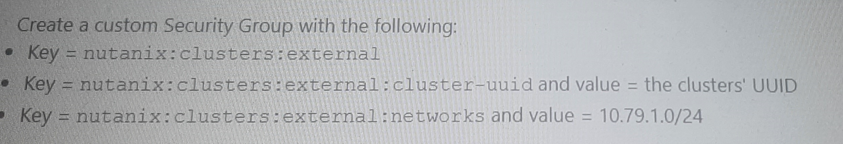

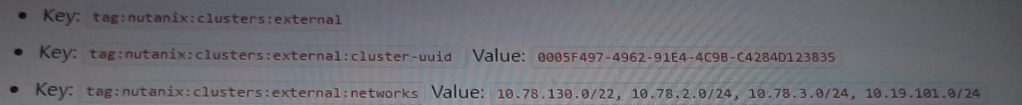

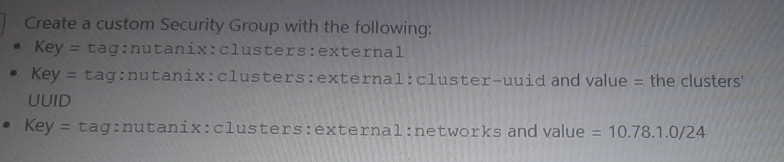

Custom Network Security Group Inbound Rule:

Allows all inbound traffic from 10.0.0.0/22.

Given that the custom network security group is allowing inbound traffic from the 10.0.0.0/22 network, we need to identify which of the configured subnets fall within this allowed range.

Analysis:

The subnets 10.78.130.0/22, 10.78.3.0/24, 10.78.2.0/24, 10.79.120.0/24, and 10.19.101.0/24 do not overlap with 10.0.0.0/22. Therefore, none of these subnets would naturally fall within the 10.0.0.0/22 range directly.

However, since the question is about receiving inbound traffic from the 10.0.0.0/22 network and considering security group rules, all subnets mentioned can technically receive traffic if the inbound rules are configured correctly, but since we are strictly asked about the configuration from the image and the overlap in the ranges:

Server01 (10.78.2.0/24) and Tier01 (10.19.101.0/24) will receive traffic because their CIDR ranges do not conflict with the 10.0.0.0/22 range, thus allowing traffic without additional restrictions.

Nutanix Clusters on AWS Administration Guide

AWS VPC and Subnet documentation

Network Security Group rules configuration in Nutanix documentation

To establish full connectivity between the company's on-premises datacenter and the AWS cloud, the following AWS offerings will satisfy this requirement:

AWS VPN: This service allows you to create a secure connection between your on-premises network or other remote network and your AWS VPC using an IPsec VPN tunnel. It is suitable for low to moderate bandwidth requirements and provides secure, encrypted connections.

Direct Connect: AWS Direct Connect is a dedicated network connection from your premises to AWS. It provides a private, high-bandwidth, low-latency connection which is ideal for high-throughput applications and workloads that need consistent network performance.

AWS VPN Documentation

AWS Direct Connect Documentation

To resolve the IP conflict issue when an EC2 instance is powered on in a subnet also used by Nutanix NC2, the administrator should block or exclude the IP address used by the NC2 VM from being assigned to EC2 instances. This can be done by configuring the IP address management (IPAM) settings to ensure that the specific IP addresses allocated to the NC2 VMs are not used by EC2 instances, preventing IP conflicts and ensuring smooth operation of both environments.

Nutanix Cloud Clusters on AWS Deployment Guide

Nutanix Support & Insights

When setting up a landing zone for Nutanix clusters on AWS, having only private subnets for cluster management and user VMs is not sufficient for full cluster functionality. Nutanix clusters often need to communicate with the internet for updates, patches, and other cloud services.

VPC Configuration:

The VPC already has two private subnets (one for cluster management and one for user VMs).

Additional Requirements:

To access public services like S3 or for the cluster nodes to reach Nutanix services for updates, a public subnet is essential.

Why Public Subnet for Internet Access?:

A public subnet allows resources within it to communicate directly with the internet, which is necessary for accessing Nutanix's update servers, applying patches, and other maintenance tasks.

This subnet typically includes an internet gateway, enabling instances in the public subnet to receive and send traffic directly to the internet.

Nutanix Cloud Clusters on AWS Administration Guide

AWS Networking Best Practices

Nutanix Networking and Subnet Configuration Guidelines
