Comprehensive and Detailed Explanation From Nokia Optical Networking Fundamentals:

In the Optical Transport Network (OTN) hierarchy, the TTI (Trail Trace Identifier) is a 64-byte overhead signal used to ensure that the source and destination of a path are correctly connected. It is part of the overhead in the OTU (Optical Transport Unit) and ODU (Optical Data Unit) layers. The TTI provides a mechanism for 'path trace' to prevent misconnections. It specifically carries the SAPI (Source Access Point Identifier) and the DAPI (Destination Access Point Identifier).

These identifiers are strings that uniquely identify the source and destination ports. By comparing the 'Expected SAPI/DAPI' configured on a port with the 'Received SAPI/DAPI' actually coming in over the fiber, the Nokia 1830 PSS can detect fiber patching errors or cross-connect mistakes. If there is a mismatch, the system can trigger a TIM (Trace Identifier Mismatch) alarm and potentially squelch the traffic to prevent data from being delivered to the wrong customer. This is a Layer 1 (OTN) function and is entirely independent of Layer 2 MAC addresses or Layer 3 IP addresses used by the management system for DCN (Data Communication Network) connectivity.

Comprehensive and Detailed Explanation From Nokia Optical Networking Fundamentals:

In the context of the Nokia 1830 Engineering and Planning Tool (EPT)---now known as WaveSuite Planner (WS-P)---a Demand is a fundamental planning object that represents the customer's traffic requirement between two or more nodes. Specifically, it refers to one or more client signals that need to be transported across the optical network. When a user defines a demand in EPT, they specify the source and destination nodes, the type of client service (e.g., 10GE, 100GE, or STM-64), the quantity of these services, and the required protection level (e.g., Unprotected, 1+1, or O-SNCP).

The tool uses these defined demands to calculate the most efficient optical path, select the appropriate hardware (transponders and muxponders), and determine the necessary wavelength assignments. While a demand eventually results in the creation of optical trails and utilizes network element capacity, the term itself strictly refers to the input traffic requirement or the client signal(s) that the network is being designed to carry. Without defining demands, the planning tool cannot generate a Bill of Materials (BOM) or perform power balancing simulations, as it wouldn't know the traffic load the physical infrastructure must support.

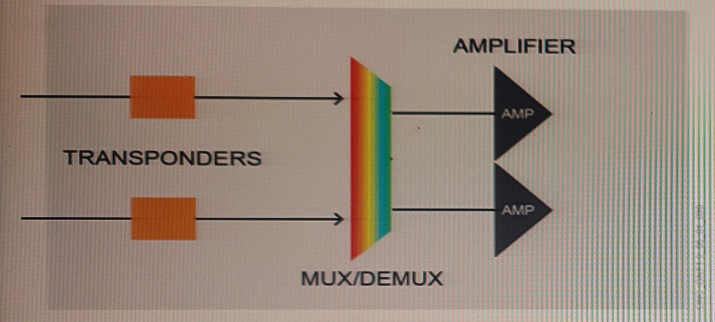

In optical fiber propagation context, the first, second, and third window refer to different wavelength intervals where the WDM (Wavelength Division Multiplexing) optical transmission occurs.

The first window is the lowest loss window and is typically in the range of 1300-1324nm. This is the most commonly used window for long-haul communications.

The second window is the 1550 nm window and is the most widely used window for long-haul and ultra-long-haul communications. This window has a lower attenuation than the first window, but it also has more dispersion, which can limit the maximum transmission distance.

The third window is the range of 1625-1675 nm, it is also called the L-band window. This window has lower attenuation than the first and second window but its usage is limited due to the high cost of equipment and lack of commercial devices.

These windows are used in WDM systems to increase the capacity of the fiber by transmitting multiple channels of data at different wavelengths on the same fiber.

A,C,D are not correct as they are not related to the meaning of first, second, and third window in the optical fiber propagation context.

Nokia Optical Networking Fundamentals, Nokia Press (ISBN:978-1-4822-8109-4)

https://www.nokia.com/networks/solutions/optical-networking/

https://en.wikipedia.org/wiki/Wavelength-division_multiplexing

In Raman amplification, a pump laser is used to excite the Raman-active molecules in the fiber, which then amplifies the signal light as it travels in the opposite direction. In the 1830 specific implementation, the pump laser is typically a high-power laser that is launched into the fiber in the opposite direction to the signal. The pump light interacts with the Raman-active molecules in the fiber, which then amplifies the signal light as it travels in the opposite direction. This allows the Raman pump to provide a gain that increases with distance, which can be used to compensate for the loss of signal power as it travels through the fiber.
