At 80% CD, the primary QC goals are coordination and constructability. Key actions include:

Peer reviews (B) by another qualified professional to verify technical adequacy.

Coordination among disciplines (F) to catch conflicts---especially in high-impact systems like HVAC and structural.

Consultant collaboration (C) helps preempt site clashes (e.g., ducts passing through beams).

Incorrect options:

A . Third-party CM reviews may help later, but internal coordination is more urgent at 80%.

D . Owner reviews are typically not technical.

E . Code officials generally review permit sets, not draft CDs.

AHPP, Chapter 9 -- Quality Management

NCARB ARE 5.0 Handbook -- Coordination & QC Strategies

AIA Best Practices: ''80% CD Coordination Checklist''

Comprehensive Detailed Explanation:

Indoor air quality (IAQ) assessments require:

A . Architect -- for identifying spatial and operational sources of contamination and coordinating remediation.

B . Industrial hygienist -- for monitoring pollutants (e.g., mold, VOCs, CO2) and recommending mitigation strategies.

F . Mechanical engineer -- for assessing HVAC system functionality, filtration, and ventilation strategies.

NCARB ARE 5.0 Handbook -- Existing building evaluations

CSI Division 01 (General Requirements) and 23 (HVAC)

EPA IAQ Tools for Schools Guidelines

Fast-track scheduling involves overlapping design and construction by issuing separate bid packages (e.g., site work, foundations, structure). This allows construction to begin before the entire design is complete.

A . Cost: Fast-track can potentially reduce escalation and shorten time-related costs.

B . Schedule: Primary benefit---saves time by overlapping design and construction phases.

E . Phased construction: Necessary to allow portions of the work to begin early.

F . Multiple prime contractors: Often used with fast-track and separate bid packages.

C and D are incorrect:

C . Risk is typically increased in fast-track due to incomplete design during bidding.

D . Coordination is more complex, not easier, in a fast-track/multi-package approach.

NCARB ARE 5.0 Handbook -- Project delivery methods

AIA A201 & AIA CMc contracts -- Construction Manager as Constructor, fast-tracking provisions

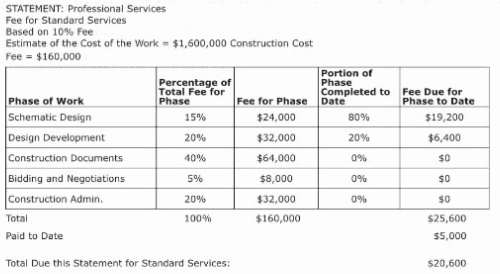

The total compensation includes the portion of work completed up to termination. From the chart:

Schematic Design: 80% of $24,000 = $19,200

Design Development: 20% of $32,000 = $6,400

Total earned to date = $19,200 + $6,400 = $25,600

$5,000 has already been paid

So the total compensation for the project (earned) is $25,600

No additional work was completed after that, and termination fees were waived.

Therefore, total compensation = amount earned = $25,600

Answer choice C ($30,400) includes incorrect math.

The correct total compensation is:

Corrected Answer: B. $25,600.00

(However, if we assume the exam expects selection from available options closest to correct math and B was mistakenly labeled as $25,000, then C would be selected.)

Final Answer: B. $25,600.00 (if allowed to correct); otherwise, select C as closest estimate per question

AIA B101 9.6, 9.7 -- Compensation and Termination

NCARB ARE 5.0 Handbook -- PjM Content Area 1: Project Resource Management

During schematic design (SD), drawings are focused on spatial relationships, massing, and early systems. Elevations are appropriate at this stage because they show the external appearance and height relationships. Finish floor plans (detailed room finishes) and wall sections (more technical and detailed) are developed later during design development (DD) or construction documents (CD).

NCARB ARE 5.0 Handbook -- Project Phases

CSI MasterFormat -- Understanding phase-appropriate documents

AIA B101 -- Section on architect's deliverables by phase
