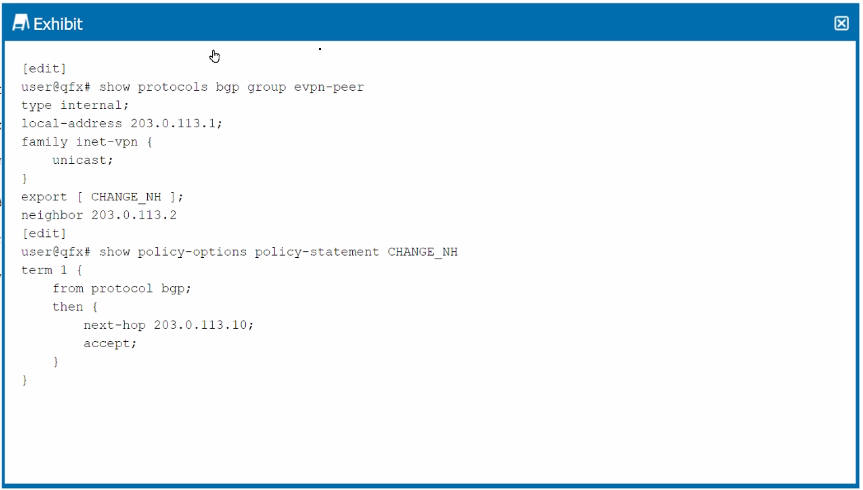

Understanding VPN Route Table Association:

In MPLS/VPN and EVPN networks, the route-target community is a BGP extended community attribute used to control the import and export of VPN routes. It associates received routes with the appropriate VPN route tables on the PE (Provider Edge) routers.

Function of Route-Target Community:

The route-target community tag ensures that routes are imported into the correct VRF (Virtual Routing and Forwarding) instance, allowing them to be correctly routed within the VPN.

Conclusion:

Option A: Correct---The route-target community is used to associate received routes with a local VPN route table.

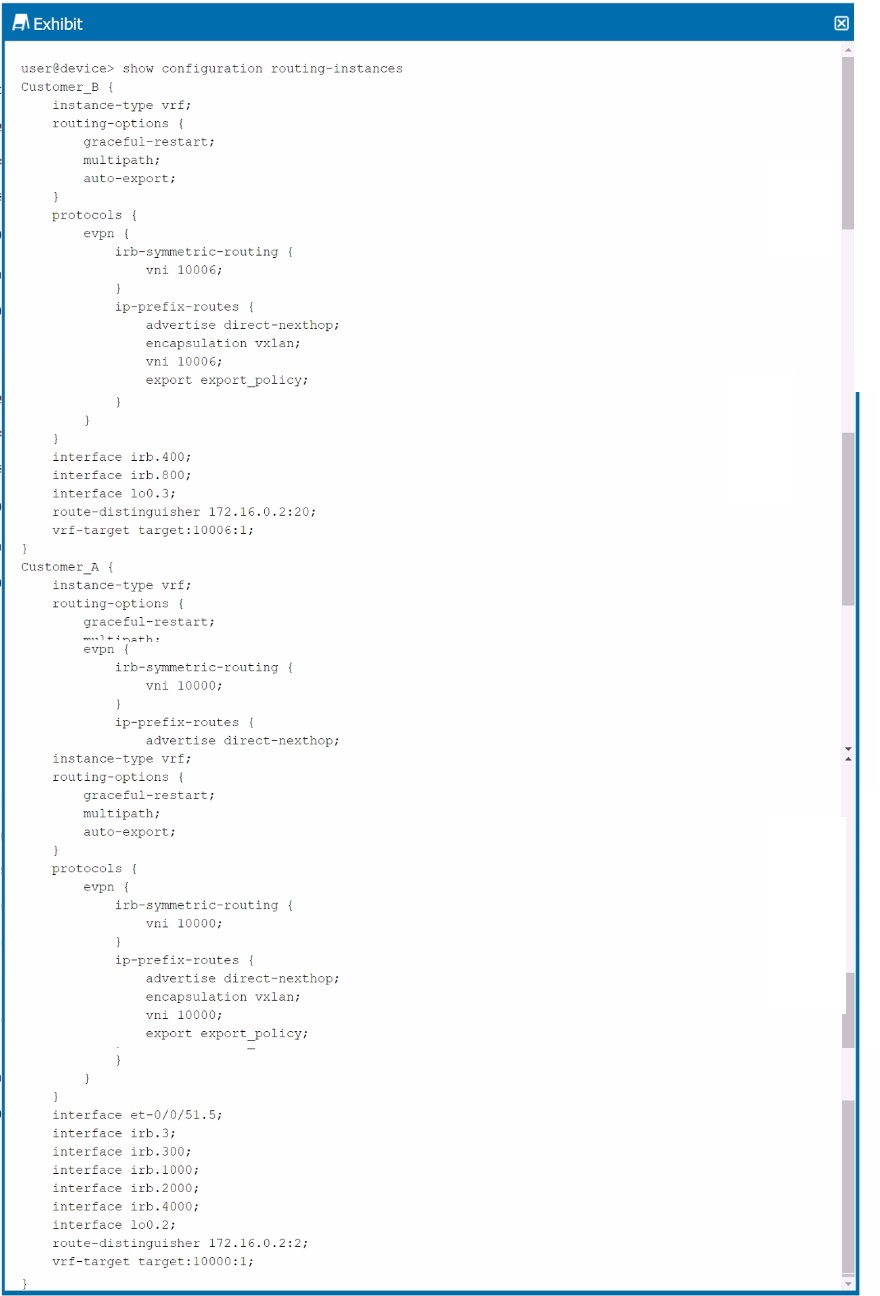

Understanding VRF and Routing Instances:

In an EVPN-VXLAN overlay network, multiple tenants are separated using unique VRF (Virtual Routing and Forwarding) instances. Each VRF instance maintains its own routing table, allowing for isolated routing domains within the same network infrastructure.

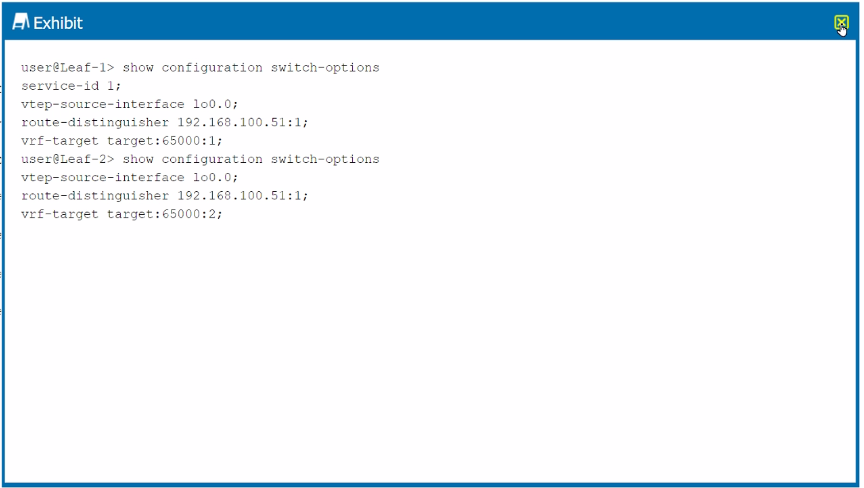

Role of Route Distinguisher:

Route Distinguisher (RD): The RD is a unique identifier used in MPLS and EVPN environments to distinguish routes belonging to different VRFs. The RD is prepended to the IP address in the route advertisement, ensuring that routes from different tenants remain unique even if they use the same IP address range.

Correct Property:

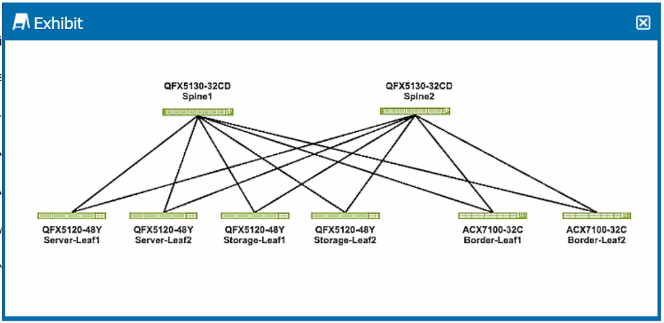

Requirements for AI Workloads:

The scenario requires a network that supports at least 400 Gbps Ethernet and does not require Layer 2 VLANs. This setup is well-suited for a pure Layer 3 network, which can efficiently route traffic between devices without the overhead or complexity of maintaining Layer 2 domains.

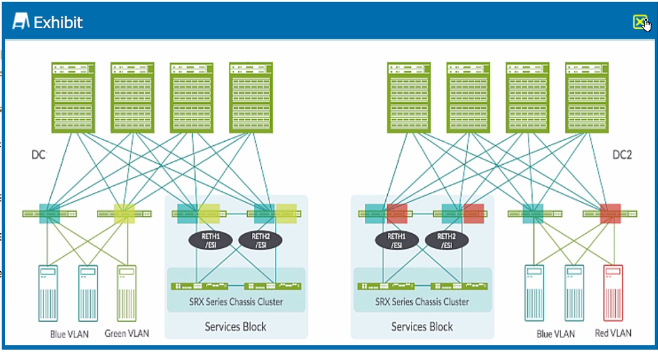

Choosing the Right Network Architecture:

Option D: An IP fabric using EBGP (External BGP) is ideal for this scenario. In a typical IP fabric, EBGP is used to handle routing between spine and leaf switches, creating a scalable and efficient network. Since there is no need for Layer 2 VLANs, the pure IP fabric design with EBGP provides a straightforward and effective solution.

Options A, B, and C involve more complex architectures (like VXLAN or EVPN), which are unnecessary when there's no requirement for Layer 2 overlays or VLANs.

Conclusion:

Option D: Correct---An IP fabric with EBGP is the most suitable and straightforward architecture for a network that needs to support high-speed AI workloads without Layer 2 VLANs.

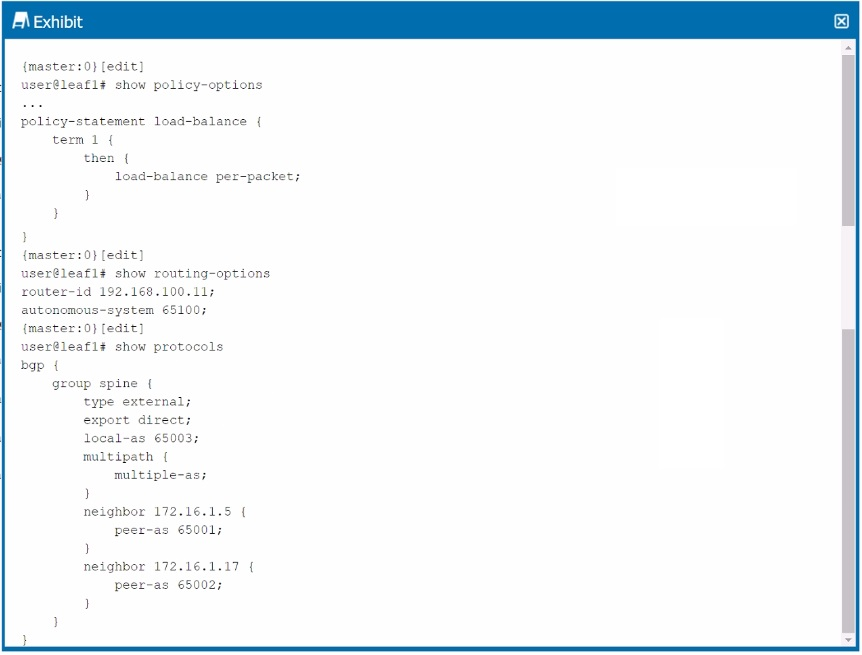

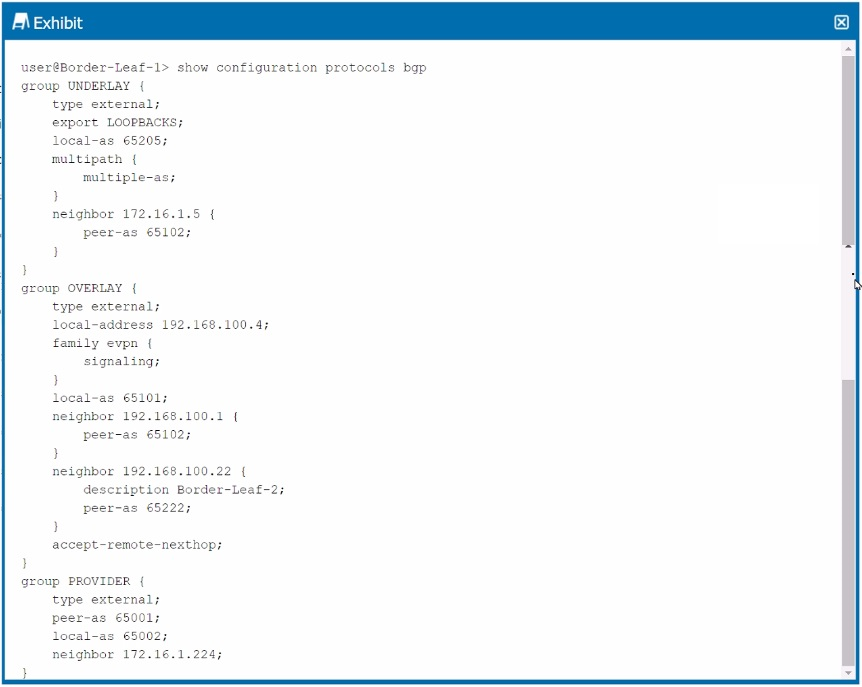

Understanding BGP Configuration in the Exhibit:

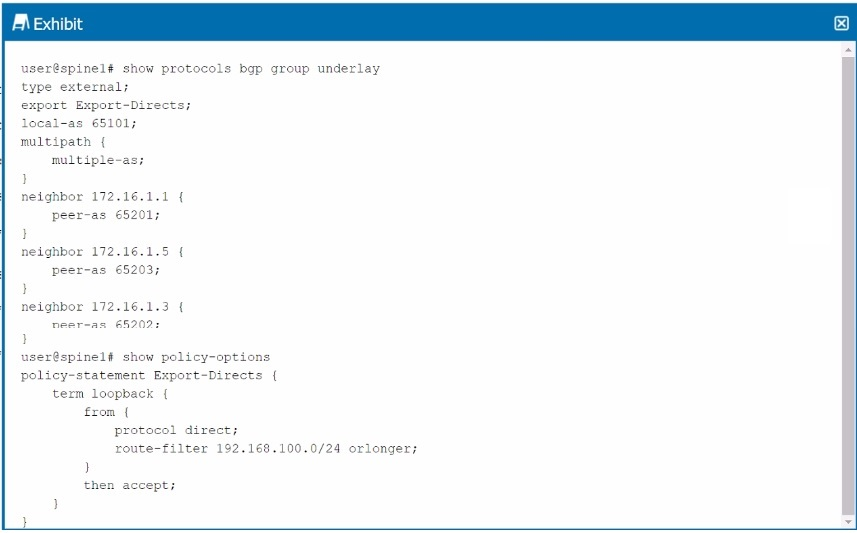

The exhibit shows a BGP configuration on spine1 with a group named underlay, configured to peer with directly connected interfaces of other devices in the network.

Multipath multiple-as: This statement allows the router to install multiple paths in the routing table for routes learned from different ASes, facilitating load balancing.

Key Statements:

A . The multihop statement is not required to establish the underlay BGP sessions: In this case, the BGP peers are directly connected (as indicated by their neighbor IP addresses), so the multihop statement is unnecessary. Multihop is typically used when BGP peers are not directly connected and packets need to traverse multiple hops.

D . Load balancing for the underlay is configured correctly: The multipath { multiple-as; } statement in the configuration enables load balancing across multiple paths from different autonomous systems, which is appropriate for underlay networks in data center fabrics.

Incorrect Statements:

C . The multihop statement is required to establish the underlay BGP sessions: This is incorrect because the peers are directly connected, making the multihop statement unnecessary.

B . Load balancing for the underlay is not configured correctly: This is incorrect because the configuration includes the necessary multipath settings for load balancing.

Data Center Reference:

BGP configurations in EVPN-VXLAN underlay networks are crucial for ensuring redundancy, load balancing, and efficient route propagation across the data center fabric.

Understanding the Exhibit Setup:

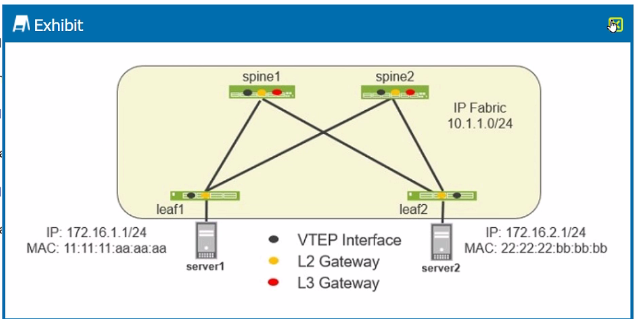

The network diagram shows an EVPN-VXLAN setup, a common design for modern data centers enabling Layer 2 and Layer 3 services over an IP fabric.

Leaf1 and Leaf2 are the leaf switches connected to Server1 and Server2, respectively, with each server in a different subnet (172.16.1.0/24 and 172.16.2.0/24).

Spine1 and Spine2 are part of the IP fabric, interconnecting the leaf switches.

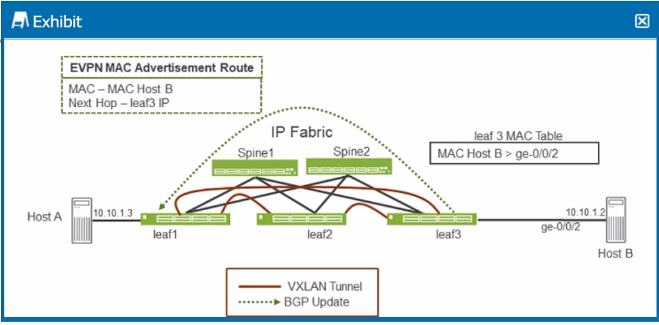

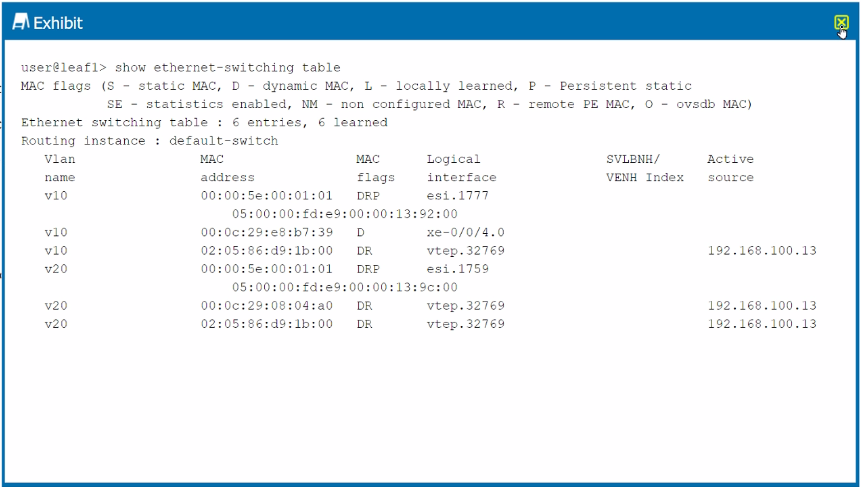

EVPN-VXLAN Basics:

EVPN (Ethernet VPN) provides Layer 2 and Layer 3 VPN services using MP-BGP.

VXLAN (Virtual Extensible LAN) encapsulates Layer 2 frames into Layer 3 packets for transmission across an IP network.

VTEP (VXLAN Tunnel Endpoint) interfaces on leaf devices handle VXLAN encapsulation and decapsulation.

Integrated Routing and Bridging (IRB):

IRB interfaces are required on leaf1 and leaf2 (where the endpoints are directly connected) to route between different subnets (in this case, between 172.16.1.0/24 and 172.16.2.0/24).

The IRB interfaces provide the necessary L3 gateway functions for inter-subnet communication.

Traffic Flow Analysis:

Traffic from Server1 (172.16.1.1) destined for Server2 (172.16.2.1) must traverse from leaf1 to leaf2.

The traffic will be VXLAN encapsulated on leaf1, sent over the IP fabric, and decapsulated on leaf2.

Since the communication is between different subnets, the IRB interfaces on leaf1 and leaf2 are crucial for routing the traffic correctly.

Correct Statements:

C . An IRB Interface must be configured on leaf1 and leaf2: This is necessary to perform the inter-subnet routing for traffic between Server1 and Server2.

D . Traffic from server1 to server2 will transit the VXLAN tunnel between leaf1 and leaf2: This describes the correct VXLAN operation where the traffic is encapsulated by leaf1 and decapsulated by leaf2.

Data Center Reference:

In EVPN-VXLAN architectures, the leaf switches often handle both Layer 2 switching and Layer 3 routing via IRB interfaces. This allows for efficient routing within the data center fabric without the need to involve the spine switches for every routing decision.

The described traffic flow aligns with standard EVPN-VXLAN designs, where direct VXLAN tunnels between leaf switches enable seamless and scalable communication across a data center network.
