Understanding the Scenario:

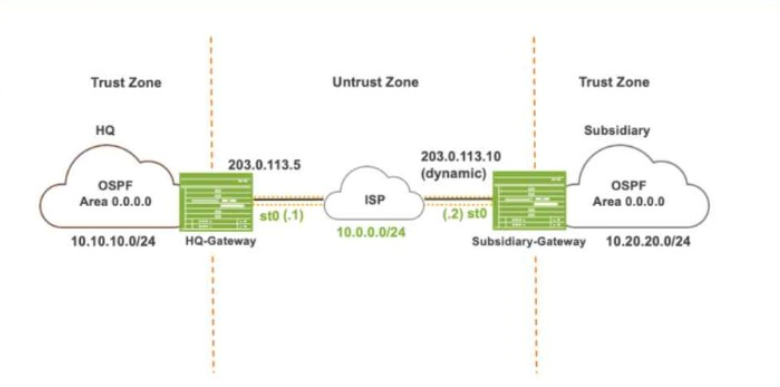

Objective: Deploy IPsec VPNs connecting multiple enterprise sites using OSPF for dynamic routing.

Challenge: Some sites use third-party devices not running Junos OS.

Considerations:

Compatibility between Juniper and third-party devices.

Support for dynamic routing protocols (OSPF) over IPsec VPNs.

Handling overlapping IP address spaces.

Option Analysis:

Option A: OSPF over IPsec can be used for intersite dynamic routing.

OSPF Characteristics:

OSPF uses multicast addresses (224.0.0.5 and 224.0.0.6) for neighbor discovery and routing updates.

IPsec Limitations:

Standard IPsec tunnel mode does not support multicast traffic natively.

Multicast traffic cannot traverse IPsec tunnels unless encapsulated.

Juniper Solution:

Juniper devices can use routed VPNs (route-based VPNs) with st0 interfaces, allowing OSPF over IPsec.

However, this requires support from both ends of the VPN tunnel.

Third-Party Devices:

May not support OSPF over IPsec without additional configurations.

Conclusion:

Option A is not universally true in this scenario due to third-party device limitations.

'OSPF can be run over IPsec VPNs using route-based VPNs, but interoperability with third-party devices must be verified.'

Source: Juniper TechLibrary - OSPF over IPsec VPNs

Option B: Sites with overlapping address spaces can be supported.

Overlapping IP Address Spaces:

Occurs when different sites use the same IP subnets.

Can cause routing ambiguities and conflicts.

Solution:

NAT over VPN:

Use Network Address Translation (NAT) to translate overlapping IP addresses to unique addresses.

Juniper devices support NAT over IPsec VPNs.

Third-Party Device Considerations:

Need to ensure third-party devices support NAT over IPsec.

Many enterprise-grade devices provide this functionality.

Conclusion:

Option B is true; overlapping address spaces can be supported using NAT.

'When sites have overlapping IP addresses, NAT can be used over IPsec VPNs to resolve address conflicts.'

Source: Juniper TechLibrary - NAT with IPsec VPNs

Option C: OSPF over GRE over IPsec is required to enable intersite dynamic routing.

GRE Tunnels:

Generic Routing Encapsulation (GRE) can encapsulate multicast and broadcast traffic.

Allows OSPF packets to be transmitted over IPsec VPNs.

IPsec Encryption:

GRE tunnels can be encrypted using IPsec for secure communication.

Interoperability:

GRE over IPsec is a common method to support OSPF between devices from different vendors.

Third-party devices are more likely to support GRE over IPsec than OSPF over IPsec directly.

Conclusion:

Option C is true; using OSPF over GRE over IPsec is required in this scenario.

'To run OSPF between devices that do not support multicast over IPsec, GRE tunnels can be used over IPsec VPNs.'

Source: Juniper TechLibrary - Configuring GRE over IPsec

Option D: Sites with overlapping address spaces cannot be supported.

Contradicts Option B.

As established, overlapping address spaces can be supported using NAT over IPsec VPNs.

Conclusion:

Option D is false.

Conclusion:

Correct Answers: B and C

Option B: Overlapping address spaces can be supported using NAT over IPsec VPNs.

Option C: OSPF over GRE over IPsec is required to enable intersite dynamic routing, especially when third-party devices are involved.

Additional Detailed

Why OSPF over IPsec May Not Be Feasible (Option A):

Multicast Traffic:

OSPF relies on multicast for neighbor discovery and updates.

IPsec in tunnel mode does not natively support multicast traffic.

Third-Party Devices:

May not support proprietary extensions or configurations required to run OSPF directly over IPsec.

Workaround:

Encapsulate OSPF multicast packets within GRE tunnels, which can carry multicast traffic over unicast IPsec tunnels.

Why OSPF over GRE over IPsec Is Necessary (Option C):

GRE Tunnels:

Encapsulate multicast/broadcast traffic into unicast packets.

Allow routing protocols like OSPF to function over IPsec VPNs.

Compatibility:

GRE is a widely supported protocol across different vendors.

Facilitates interoperability between Juniper and third-party devices.

Supporting Overlapping Address Spaces (Option B):

NAT over IPsec:

Translates private IP addresses to unique addresses across the VPN.

Prevents routing conflicts and allows communication between sites with overlapping subnets.

Considerations:

Requires proper configuration on both ends of the VPN tunnel.

Third-party devices must support NAT over IPsec.

Reference to Juniper Security Concepts:

Route-Based VPNs:

'Route-based VPNs use virtual tunnel interfaces (st0) and support dynamic routing protocols over IPsec.'

Source: Juniper TechLibrary - Route-Based VPNs

GRE over IPsec:

'GRE over IPsec allows the transmission of multicast and non-IP protocols over IPsec tunnels.'

Source: Juniper TechLibrary - GRE over IPsec Overview

NAT with IPsec VPNs:

'NAT can be applied to IPsec VPN traffic to resolve overlapping address issues and facilitate communication between sites.'

Source: Juniper TechLibrary - NAT with IPsec

Final Notes:

Interoperability:

When working with third-party devices, always verify compatibility for protocols and features.

Best Practices:

Use GRE over IPsec for dynamic routing protocols requiring multicast support across IPsec VPNs.

Implement NAT over VPN when dealing with overlapping address spaces.

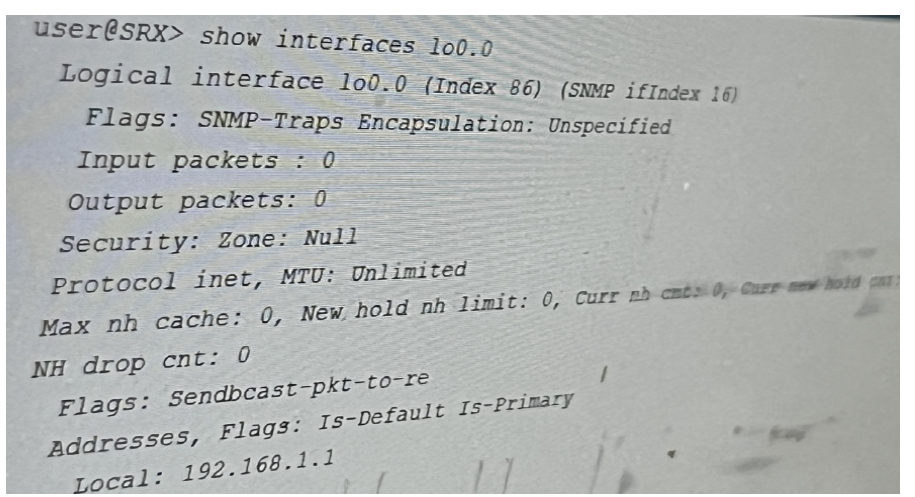

A . The interface is not assigned to a security zone.

SRX Series devices rely heavily on security zones for traffic management. If an interface isn't assigned to a zone, the device won't know how to handle traffic arriving on that interface, including ping requests (ICMP echo requests).

B . The interface's host-inbound-traffic security zone configuration does not permit ping.

Even if an interface is in a zone, you must explicitly allow ICMP ping traffic within the zone's host-inbound-traffic settings. By default, most zones block ping for security reasons.

C . The ping traffic is matching a firewall filter.

Firewall filters (configured using the security policies hierarchy) can block specific traffic types, including ICMP. If a filter is applied to the interface or zone, and it doesn't have a rule to permit ping, the ping will be unsuccessful.

Why other options are incorrect:

D . The device has J-Web enabled. J-Web is a web-based management interface and has no direct impact on the device's ability to respond to pings.

E . The interface has multiple logical units configured. Logical units divide a physical interface into multiple virtual interfaces. While this can affect routing and traffic flow, it doesn't inherently prevent ping responses as long as the relevant zones and policies are correctly configured.

Troubleshooting Steps:

If you're unable to ping an SRX interface, here's a systematic approach to troubleshoot:

Verify Interface Status: Ensure the interface is up and operational using show interfaces terse.

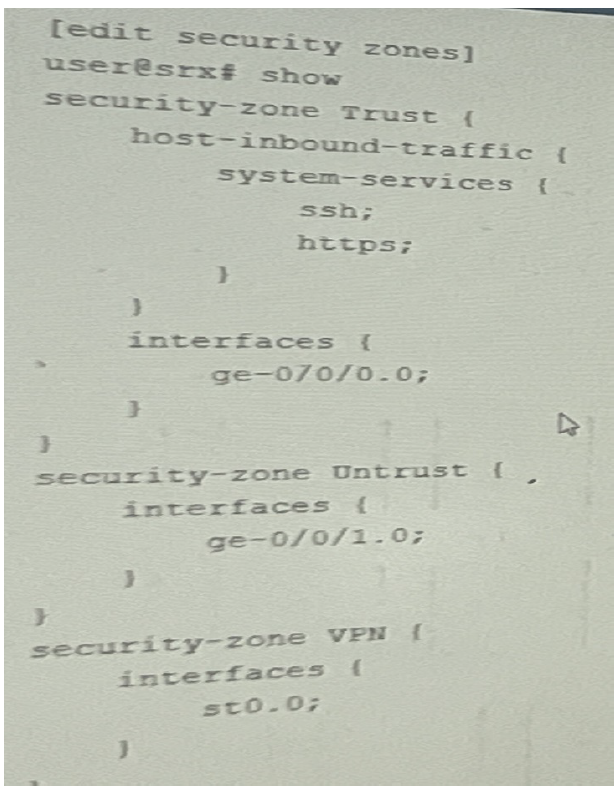

Check Zone Assignment: Confirm the interface belongs to a security zone using show security zones.

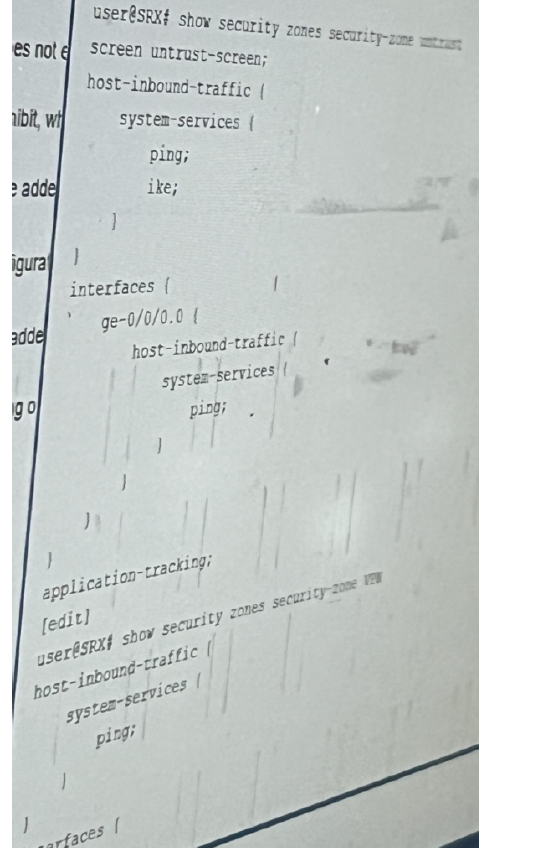

Examine host-inbound-traffic: Verify that the zone's host-inbound-traffic settings allow ping (e.g., set security zones security-zone trust host-inbound-traffic system-services ping).

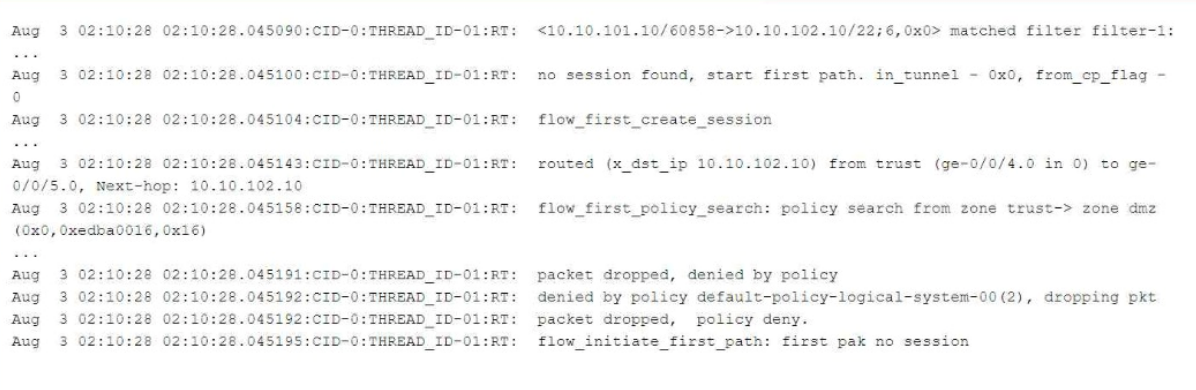

Analyze Firewall Filters: Review any firewall filters applied to the interface or zone to ensure they allow ICMP ping traffic. Use show security policies and monitor traffic to diagnose filter behavior.

Test from Different Zones: Try pinging the interface from devices in different zones to isolate potential policy issues.

By systematically checking these aspects, you can identify the root cause and resolve the ping issue on your SRX Series device.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

When two networks with overlapping IP address spaces need to communicate, Network Address Translation (NAT) is required to translate the IP addresses so that they become unique across the combined network. In this scenario, both the local network and the new branch office use the same subnet: 192.168.100.0/24. To enable communication without IP conflicts, we need to translate the overlapping addresses to unique ones.

Understanding the Problem:

Local Network (Office A): 192.168.100.0/24

Branch Office (Office B): 192.168.100.0/24

Objective: Allow communication between Office A and Office B despite overlapping IP ranges.

Solution Overview:

To resolve the overlapping IP addresses, we can use Static NAT to create a one-to-one mapping between the overlapping IP addresses and a unique IP range. This way, when packets traverse the network boundary, their IP addresses are translated to a non-overlapping range, avoiding conflicts.

Option B and Option C implement Static NAT to resolve the issue:

Option B (At Office A):

Translates destination addresses from 192.168.200.0/24 to 192.168.100.0/24.

This allows Office B to reach Office A's overlapping network by targeting a unique IP range (192.168.200.0/24).

Option C (At Office B):

Translates destination addresses from 192.168.210.0/24 to 192.168.100.0/24.

This allows Office A to reach Office B's overlapping network by targeting a unique IP range (192.168.210.0/24).

Detailed

1. Static NAT Configuration at Office A (Option B):

Configuration:

[edit security nat static]

user@OfficeA# show rule-set From-Office-B {

from interface ge-0/0/0.0;

rule 1 {

match {

destination-address 192.168.200.0/24;

}

then {

static-nat {

prefix { 192.168.100.0/24; }

}

}

}

}

from interface ge-0/0/0.0;: Specifies the interface through which the traffic is received.

Matching Traffic:

destination-address 192.168.200.0/24;: Matches packets destined for 192.168.200.0/24.

Action:

static-nat { prefix { 192.168.100.0/24; } }: Translates the destination address to 192.168.100.0/24.

Result:

Office B sends packets to 192.168.200.0/24, which are translated to 192.168.100.0/24 upon arrival at Office A.

Juniper Networks Documentation: 'Configuring Static NAT'

2. Static NAT Configuration at Office B (Option C):

Configuration:

[edit security nat static]

user@OfficeB# show rule-set From-Office-A {

from interface ge-0/0/0.0;

rule 1 {

match {

destination-address 192.168.210.0/24;

}

then {

static-nat {

prefix { 192.168.100.0/24; }

}

}

}

}

from interface ge-0/0/0.0;: Specifies the interface through which the traffic is received.

Matching Traffic:

destination-address 192.168.210.0/24;: Matches packets destined for 192.168.210.0/24.

Action:

static-nat { prefix { 192.168.100.0/24; } }: Translates the destination address to 192.168.100.0/24.

Result:

Office A sends packets to 192.168.210.0/24, which are translated to 192.168.100.0/24 upon arrival at Office B.

Juniper Networks Documentation: 'Configuring Static NAT'

Why Options A and D are Incorrect:

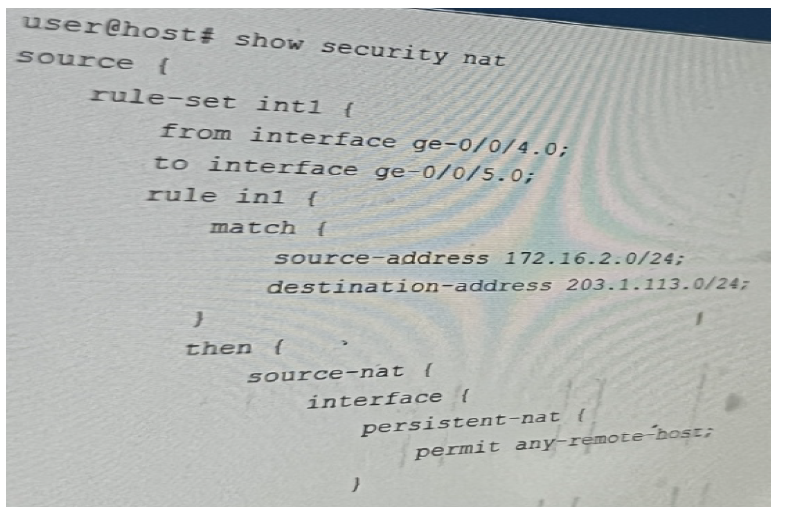

Option A and Option D use Source NAT, which is typically used for translating the source IP address of outgoing traffic.

Source NAT with interface-based translation may not resolve overlapping IP issues effectively because it doesn't provide a one-to-one mapping of the overlapping addresses.

In scenarios with overlapping networks, Static NAT is preferred as it allows for consistent and predictable address translation, essential for two-way communication.

Key Juniper Concepts:

Static NAT:

Provides a one-to-one mapping between local and global addresses.

Useful for scenarios where bidirectional communication is required.

Source NAT:

Typically used for translating private IP addresses to public IP addresses for outbound traffic.

Interface-based Source NAT translates the source IP to the IP address of the egress interface.

Not ideal for resolving overlapping IP spaces in bidirectional communication.

Additional Reference:

Juniper TechLibrary:

'Understanding NAT in SRX Series Devices'

'Configuring NAT for Overlapping Networks'

Juniper Forums and Knowledge Base Articles:

Discussions on resolving overlapping IP address spaces using Static NAT.

Conclusion:

By implementing Static NAT configurations as shown in Options B and C, both offices can effectively communicate despite having overlapping IP address spaces. Static NAT ensures that IP addresses are uniquely translated, avoiding conflicts and enabling seamless connectivity between the two networks.
