XML Schema Definition (XSD) files are used to define the structure and data types of an XML document. They ensure that the XML document adheres to a specific structure by defining the allowed elements, attributes, and their data types, thereby enforcing a consistent format.

Option A is correct because XSD files define the elements, attributes, and structure (hierarchy) of an XML document.

Option D is correct because XSD files provide a standardized format, ensuring that all parties working with the XML document use the same set of tags and structure.

Option B (Every XML document must have an XSD file defined for it) is incorrect; not every XML document requires an XSD file, although it's beneficial for validation.

Option C (An XSD file is not an XML document) is incorrect because XSD files themselves are written in XML.

Supporting Reference:

W3C XML Schema Definition (XSD) Documentation: Explains the purpose and structure of XSD files, including their role in defining XML document schemas.

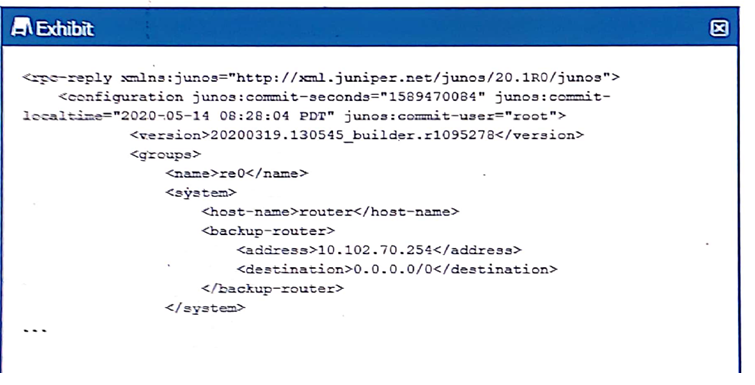

The NETCONF protocol, used for network management, utilizes XML for encoding the RPC (Remote Procedure Call) requests and responses. XML is chosen because of its flexibility and ability to represent hierarchical data structures, making it well-suited for representing network configurations and states.

Option B is correct because XML is the standard format used for NETCONF RPC payloads.

Options A (YAML), C (JSON), and D (HTML) are incorrect because these formats are not used by NETCONF for its RPC payloads.

Supporting Reference:

RFC 6241 - NETCONF Protocol: This RFC describes the use of XML for encoding NETCONF messages.

A. It supports data in CSV format: The Junos REST API supports multiple data formats for transferring information between systems, including XML, JSON, and CSV (Comma Separated Values). This flexibility allows for easier data parsing, especially in environments where structured data (like CSV) is a standard. CSV is often used for bulk data export or import and reporting purposes, making it an essential format for automation tasks involving external systems or large datasets.

Example Usage in REST API: When using the Junos REST API, a user can request configuration or operational data and specify the response format (XML, JSON, or CSV). CSV is particularly useful when integrating Junos devices with systems that require easily readable, tabular formats.

D. It is a simple configuration: The Junos REST API is designed to be relatively simple to configure. Once the REST API service is enabled on the Junos device, it can be accessed via HTTP or HTTPS, making it an easy entry point for automation and management tasks. Unlike more complex protocols (such as NETCONF), the REST API is lightweight and easier to use for simple configuration changes and retrieving operational data.

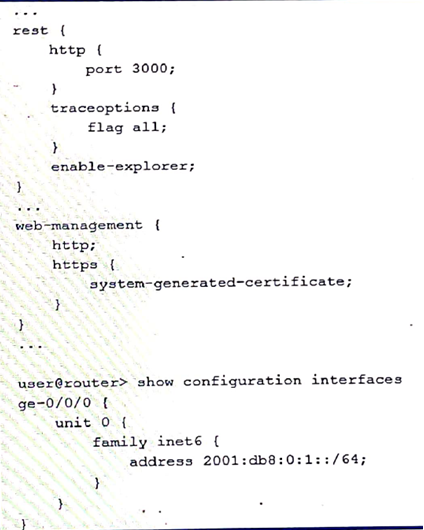

Configuration Example:

To enable the REST API, you can add the following configuration:

set system services rest http

set system services rest https

After enabling the service, API requests can be made to interact with the device for automation tasks, without needing the complexity of SSH or NETCONF configuration.

Why the Other Options Are Incorrect:

B . It must use SSH for a connection: This is incorrect. The Junos REST API uses HTTP or HTTPS for communication, not SSH. While SSH is commonly used for NETCONF, it is not required for REST API connections. REST APIs operate over standard web protocols.

C . NETCONF is not supported: This is incorrect. Junos supports both REST API and NETCONF for automation and configuration management. NETCONF is an XML-based protocol used for device configuration, which operates over SSH. The REST API and NETCONF can coexist on the same device, offering multiple avenues for automation.

Juniper Automation in DevOps Context: The simplicity and flexibility of the Junos REST API make it ideal for DevOps automation tasks. It allows teams to easily interact with Junos devices using lightweight RESTful methods, integrating with external systems through formats like CSV. The ease of configuration supports rapid deployment and scaling of automated management tasks.

Reference from Juniper Documentation:

Junos REST API Documentation
