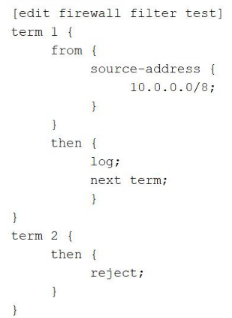

Junos OS firewall filters operate on a sequential, 'first-match' logic, but their behavior is significantly influenced by the use of terminating versus non-terminating actions. In this exhibit, a packet with a source address of 10.0.0.0/8 is evaluated against the filter named test.

Evaluation begins with term 1. The packet matches the source-address criteria, triggering the actions defined in the then statement. The first action is log, which sends the packet header information to the firewall task buffer for logging. The second action is next term. This is a critical non-terminating action; it instructs the Packet Forwarding Engine (PFE) to continue the evaluation process using the subsequent term in the filter rather than stopping after the match.

Evaluation then moves to term 2. Because term 2 contains no from match conditions, it acts as a 'catch-all' for any traffic that reaches it. The action in this term is reject. This is a terminating action that discards the packet and sends an ICMP 'destination unreachable' message back to the source. Therefore, the packet is first recorded by the logging process and is subsequently dropped by the rejection mechanism. If next term had not been present in term 1, the packet would have been implicitly accepted (as any matched term without a terminating action like discard, reject, or accept defaults to an implicit accept in that specific term). However, the explicit instruction to move forward ensures the packet hits the reject statement.

Transit traffic represents the primary 'workload' of a Junos device; it is the data that enters one network interface and exits another, destined for a remote host. Unlike exception traffic, transit traffic is forwarded exclusively by the Packet Forwarding Engine (PFE). The PFE uses specialized Application-Specific Integrated Circuits (ASICs) or programmable NPUs to perform lookups in the hardware-based forwarding table (FIB) at wire speed.

A defining characteristic of transit traffic is that it does not require control plane processing. Once the Routing Engine (RE) has populated the PFE with the necessary forwarding instructions, the RE steps out of the way. The packets pass through the PFE's ingress processing, lookups, and egress queuing without ever consuming CPU cycles on the Routing Engine. This bypass is what allows Junos devices to maintain massive throughput and low latency, even if the RE is busy recalculating a complex BGP table. Routing protocol packets (like OSPF updates) and traffic destined for the router's own management IP address are explicitly not transit traffic; they are control plane traffic because they terminate at the device's 'brain.' Transit traffic is strictly 'pass-through' data.

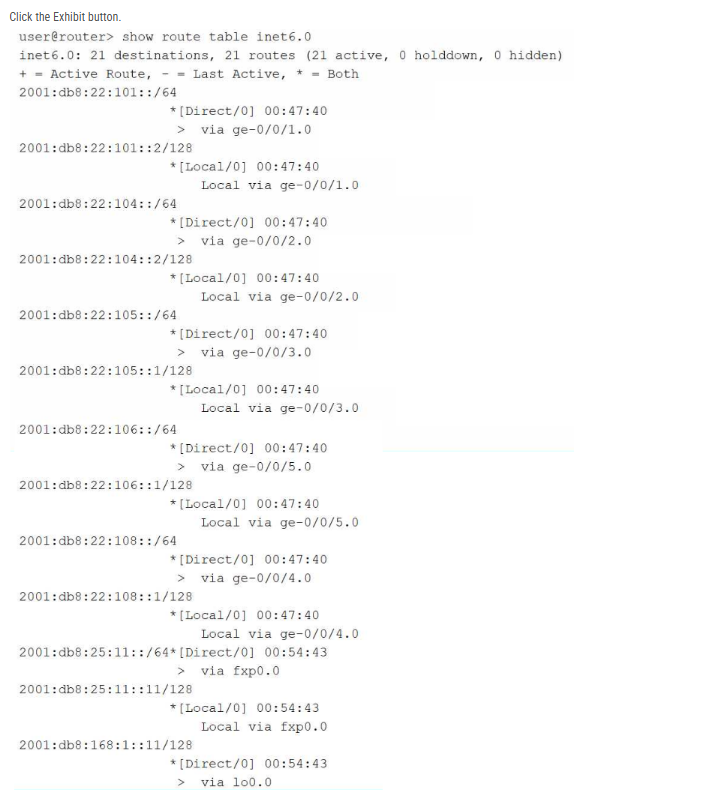

In Junos OS, routing information is meticulously organized into separate databases known as routing tables, each identified by a specific name corresponding to an address family and its intended operational purpose. The master routing table for IPv4 unicast information is inet.0. For the IPv6 address family, Junos OS utilizes inet6.0 as the default master routing table for all unicast reachability information. This table stores all IPv6 prefixes learned from directly connected interfaces, static configurations, and dynamic routing protocols such as OSPFv3, IS-IS, or BGP.

It is a core architectural principle in Junos to isolate these families to ensure management clarity and prevent address space collisions. While the system utilizes other specialized tables for specific functions---such as inet.3 for MPLS path information or inet.1 for multicast forwarding caches---inet6.0 remains the primary repository for IPv6-based forwarding decisions. When a Junos device receives an IPv6 packet, the Packet Forwarding Engine (PFE) performs a lookup against the entries derived from this table to determine the appropriate egress interface and next-hop address. Understanding this default table structure is essential for network architects when troubleshooting dual-stack environments or configuring protocol-specific import and export policies.

The exhibit illustrates the configuration of a firewall filter named mgmt_fill and its subsequent application to an interface. The first true statement is that the filter is applied to a physical interface. The configuration shows the filter attached to me0, which in Junos nomenclature represents the Management Ethernet port---a dedicated physical port for out-of-band management traffic. This is separate from logical or virtual interfaces, as me0 provides the physical link for administrative access.

The second true statement is that the filter evaluates SSH packets egressing from the management interface. In the provided snippet, term t1 specifically matches the destination-port ssh, and the filter is applied to the interface unit. When a filter is applied to an interface, it can monitor traffic entering or leaving the device. Furthermore, the filter utilizes a count action (count c1), which is a non-terminating action used to provide telemetry on specific traffic types passing through that physical port. There is no mention of a syslog or log action in the configuration, meaning that while packets are counted, they are not being written to the system log files. This configuration is a standard method for hardening the management plane and tracking administrative session activity on the Routing Engine. Reference: Routing Policy and Firewall Filters, Firewall Filter Actions, Management Interfaces.

When you need to visualize the hop-by-hop journey of a packet across a multi-vendor or Junos-based network, traceroute is the definitive operational tool. Unlike ping, which merely confirms end-to-end reachability by eliciting an Echo Reply, traceroute provides a clinical breakdown of every Layer 3 device (router or switch) in the path.

The mechanics of this tool are quite clever: it sends out a sequence of packets (usually UDP or ICMP) with an increasing Time-to-Live (TTL) value, starting at 1. When the first router receives the packet, it decrements the TTL to 0, discards the packet, and sends an ICMP 'Time Exceeded' message back to the source. This informs your Junos device of the first hop's identity. This process repeats, incrementing the TTL each time, until the packet reaches the final destination. This path discovery is vital for identifying where traffic might be diverted by a misconfigured routing policy or where latency is being introduced in the network fabric. While monitor interface traffic gives you real-time throughput on a local port and SNMP provides historical telemetry to a management station, neither can map the external topological path like traceroute. In the Junos CLI, you can even specify the source address or bypass the routing table to test specific egress paths.
