ISTQB CTFL-Foundation Exam Dumps

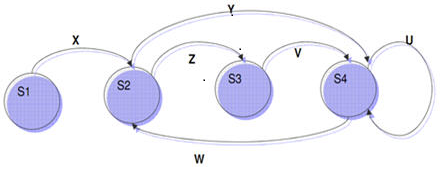

In state transition testing, test cases are designed to execute specific sequences of state transitions. Referring to the provided state transition diagram:

For test case (i) X-Z-V-W, the corresponding state transitions are S1 (X) S2, S2 (Z) S3, S3 (V) S4, and S4 (W) S2. Therefore, the sequence of state transitions is S1 -- S2 -- S3 -- S4 -- S2.

For test case (ii) W-Y-U-U, the corresponding state transitions are S4 (W) S2, S2 (Y) S4, S4 (U) S4, and S4 (U) S4. Therefore, the sequence of state transitions is S4 -- S2 -- S4 -- S4 -- S4.

This ensures that the transitions accurately reflect the states and paths described in the test cases.

A deviation from the specified or expected behavior that is visible to end-users is defined as a 'failure.' According to the ISTQB CTFL Syllabus, version 4.0:

An error is a human action that produces an incorrect result.

A fault (also known as a defect or bug) is a flaw in a component or system that can cause the system to fail to perform its required function.

A failure occurs when a fault is executed, leading to a deviation from the expected behavior, and this deviation becomes apparent to the end-users.

Thus, a visible deviation from the specified or expected behavior is termed a failure in the context of software testing.

The cost of fixing a fault increases as the software progresses through the development lifecycle. Fixing defects identified early in the requirements or design phases is less expensive compared to fixing those found later in testing or after the software has been deployed. This is due to the larger impact on the system, more extensive rework required, and potential disruptions to the user experience in later stages.

Exploratory testing is used when it is unclear what the system is supposed to do. Therefore test execution tools are of little use because expected results cannot be predicted.

However, the record feature of a test execution tool can be used to log the actions performed so that defects can be recreated (option (A)) and rectified more easily.

Test planning involves defining the overall approach to testing and assigning resources. According to the ISTQB CTFL syllabus v4.0, the activities that form part of test planning include determining the scope, approach, resources, and schedule of testing activities. Developing test cases, building the test environment, and writing test conditions are activities that belong to the later phases of the testing process, such as test design and implementation.
