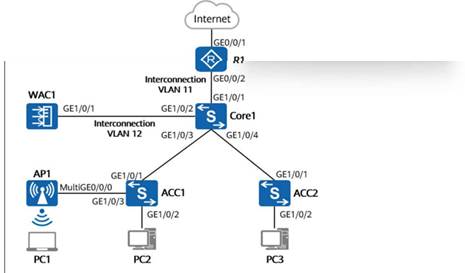

According to the original topology and service-planning question, the required VLANs are VLAN 100, VLAN 101, and VLAN 102, so options A, B, and C are correct. In HCIA-Datacom campus design questions, VLAN planning is usually based on service separation, such as user services, voice services, wireless services, management services, or specific departmental segmentation. Each service type is assigned an appropriate VLAN so that broadcast domains are separated and policies can be applied more effectively.

The reason option D is not selected is that it does not match the service requirements shown in the original figure. VLAN planning must follow the actual service design rather than arbitrary numbering. HCIA-Datacom emphasizes that campus VLAN planning should align with traffic isolation, gateway design, security policy deployment, and future scalability. Proper VLAN assignment helps simplify troubleshooting, reduce unnecessary broadcasts, and support service-based policy enforcement. This question tests the ability to read a service topology and identify which VLANs are actually required by the depicted design rather than choosing extra VLANs that are not part of the planned campus solution.

In the standard TCP/IP forwarding model, transport-layer headers such as TCP and UDP headers are added by the source host and are mainly interpreted by the destination host. Routers that forward packets between the source and destination operate primarily at the network layer, using the destination IP address in the IP header to make forwarding decisions. Therefore, under normal routing behavior, routers do not process transport-layer header information when deciding how to forward packets.

This is a key concept in layered communication. The source host encapsulates application data with a transport-layer header, then with an IP header, and finally with a data-link header. Each router along the path removes only the Layer 2 frame header, checks the Layer 3 destination IP information, decrements TTL, recalculates the IP header checksum when required, and forwards the packet. The transport-layer content remains unchanged in normal forwarding. HCIA-Datacom uses this principle to explain end-to-end communication and layer responsibilities. Although advanced devices may inspect higher-layer information for security or policy purposes, standard router forwarding in the basic TCP/IP model does not depend on transport-layer processing.

In a WAC + Fit AP architecture, the WAC (Wireless Access Controller) centrally manages and controls the Fit APs, so option A is correct. Service configurations such as SSIDs, security policies, radio parameters, and access control are generally delivered from the WAC to the APs. The Fit AP mainly forwards wireless user traffic and executes the configuration issued by the controller.

Option D is also correct because a Fit AP provides 802.11 wireless access for stations (STAs) and serves as a bridge between the wireless side and the wired network. This is one of its basic roles in enterprise WLAN deployment. Option B is incorrect because users or administrators do not normally need to log in to each Fit AP individually to configure wireless services; centralized management by the WAC is the whole advantage of this architecture. Option C is incorrect because CAPWAP communication between the WAC and AP does not require Layer 2 adjacency; the WAC and AP can communicate over Layer 3 as long as IP connectivity exists. HCIA-Datacom emphasizes centralized configuration, simplified operations, and scalable deployment as key benefits of WAC + Fit AP networking.

This statement is false. In campus network VLAN planning, VLAN IDs do not have to be allocated strictly consecutively without any gaps. In fact, leaving some reserved VLAN IDs is often a practical and recommended design approach. VLAN planning should focus on clarity, scalability, maintainability, and service separation, rather than on forcing all VLAN IDs to be contiguous.

For example, an administrator may reserve certain VLAN ranges for user access, voice services, management, wireless services, guest access, future expansion, or specific departments. Such structured planning makes later network expansion easier and reduces the risk of service conflicts or disruptive renumbering. HCIA-Datacom emphasizes that good campus network planning should consider current requirements and future growth. Consecutive allocation may look tidy at first, but it can actually reduce flexibility and make later additions more difficult. Therefore, the idea that VLAN IDs must be assigned consecutively without redundancy to avoid omissions is not a correct design principle. Reasonable reservation and categorized allocation are often more beneficial in real enterprise campus networks.

A /28 subnet mask corresponds to 255.255.255.240, which means each subnet contains 16 IP addresses. The subnet boundaries in the last octet increase in steps of 16: 0, 16, 32, 48, 64, 80, 96, 112, 128, 144, 160, and so on. The host address 192.168.1.147 falls within the subnet range 192.168.1.144 to 192.168.1.159.

In that subnet, the network address is 192.168.1.144, the usable host range is 192.168.1.145 through 192.168.1.158, and the broadcast address is 192.168.1.159. Therefore, option C is correct. Option D is the first usable host address, not the broadcast address. Option A is just another usable host address. Option B would be the broadcast address only for a /24 network, not for a /28. HCIA-Datacom requires learners to master subnetting because it is essential for IP planning, gateway deployment, route summarization, and troubleshooting Layer 3 communication issues in campus and enterprise networks.
