When configuring 802.1X authentication on edge ports of an AOS-CX switch and assigning VoIP phones to a 'voice' role, the correct approach is to configure VLAN 12 as the allowed trunk VLAN in the 'voice' role. This setup ensures that traffic tagged for VLAN 12 is appropriately managed by the role applied to the VoIP phones. In AOS-CX switches, the role-based VLAN configuration allows for more granular control and ensures that the VoIP phones' traffic is handled correctly without altering the edge port settings, which typically operate with default settings for authentication.

Wireshark: Follow TCP Stream:

Wireshark provides an intuitive feature to filter and display a complete TCP conversation.

By right-clicking any packet within the conversation and selecting 'Follow TCP Stream', Wireshark isolates and displays the entire conversation.

This feature allows you to view the communication in a simplified, sequential manner, including requests and responses.

Option Analysis:

Option A: Incorrect. Capture filters only apply during packet capturing, not for analyzing already saved packet captures.

Option B: Incorrect. Sorting packets helps with organizing data but does not isolate a complete conversation.

Option C: Incorrect. A capture filter for TCP port 5448 would have to be applied before capturing; it does not work for saved data.

Option D: Correct. Right-clicking a packet and choosing 'Follow TCP Stream' is the simplest way to display the full conversation between 10.1.70.90 and 10.1.79.11 on port 5448.

Steps in Wireshark to Follow a TCP Stream:

Locate any packet within the desired conversation (e.g., between 10.1.70.90 and 10.1.79.11 on TCP port 5448).

Right-click on the packet.

Choose 'Follow' 'TCP Stream'.

Wireshark will display the entire TCP conversation, including both directions of communication.

This feature is especially useful when troubleshooting or analyzing detailed interactions between hosts.

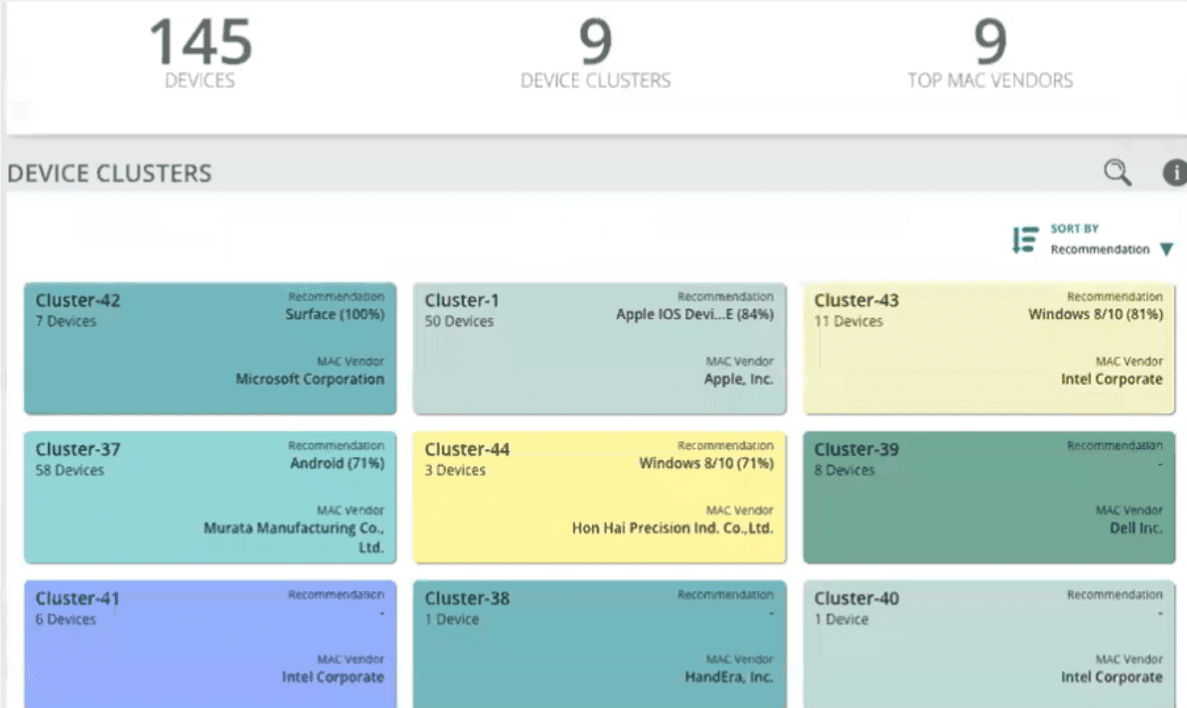

In HPE Aruba Networking ClearPass Device Insight (CPDI), the clusters shown in the exhibit represent groups of unclassified devices that CPDI's machine learning algorithms have identified as having similar attributes. These clusters are formed based on observed characteristics and behaviors of the devices, helping administrators to categorize and manage devices more effectively.

1.Machine Learning: CPDI uses machine learning to analyze device attributes and group them into clusters based on similarities.

2.Unclassified Devices: These clusters typically represent devices that have not yet been explicitly classified by admins but share common attributes that suggest they belong to the same category.

3.Management: This clustering helps in simplifying the process of managing and applying policies to groups of similar devices.

Custom Device Fingerprinting on CPPM:

To create a custom fingerprint, you first need to connect a known device of that type to the network.

CPPM will discover the device in its Endpoints Repository, allowing you to analyze its attributes (e.g., MAC OUI, DHCP options) and create custom profiling rules.

Option Analysis:

Option A: Correct. Discovering a known device in the Endpoints Repository is a prerequisite for creating accurate custom fingerprint rules.

Option B: Incorrect. CPDI integration is not required for custom fingerprints on CPPM.

Option C: Incorrect. XML rules are not pre-defined; they are created dynamically based on observed attributes.

Option D: Incorrect. The 'Automatically download Endpoint Profiler Fingerprints' setting is unrelated to custom profiling.

To capture traffic from a particular wireless client for a 15-minute period and then send the traffic in a PCAP file, you should go to the client's AP in HPE Aruba Networking Central and use the 'Security' page to run a packet capture. This method allows you to directly capture the client's traffic from the AP managing the wireless connection, ensuring that you gather the relevant traffic data for analysis.

1.Centralized Management: HPE Aruba Networking Central provides a centralized interface for managing and monitoring APs, making it easy to initiate packet captures.

2.Security Page: The 'Security' page in Aruba Central includes tools for running packet captures, allowing you to specify the duration and other parameters.

3.Ease of Use: This approach simplifies the process by using the built-in features of Aruba Central, avoiding the need for complex CLI commands or additional hardware.
