Fortinet NSE7_CDS_AR-7.6 Exam Dumps

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 AWS Administration Guide and the Public Cloud Security documentation regarding AWS VPC Flow Logs, the level at which a flow log is created determines the scope of the data collected:

Flow Log Scope and Hierarchy (Option A): AWS VPC Flow Logs can be created at three different levels: VPC, Subnet, or Network Interface (ENI).

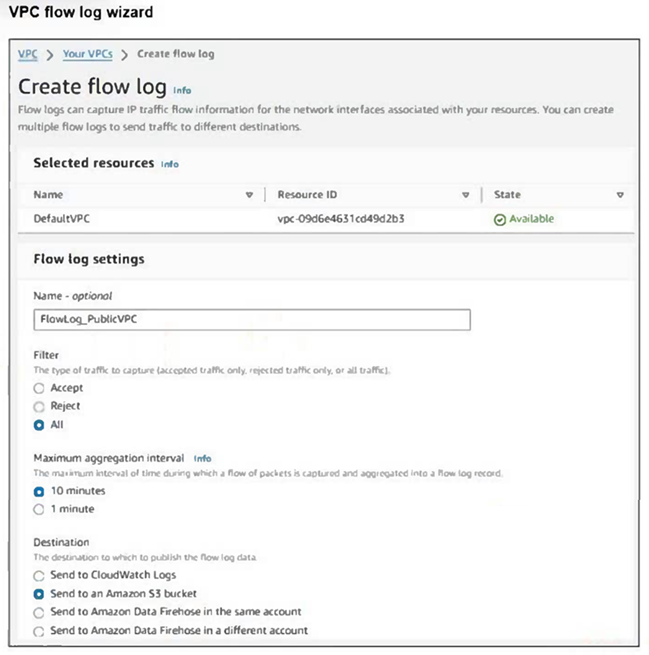

As seen in the exhibit (VPC flow log wizard), the flow log is being created for the resource vpc-09d6e4631cd49d2b3. When a flow log is created at the VPC level, it captures IP traffic for all network interfaces within that VPC.

To isolate traffic specifically for a single FortiGate EC2 instance and avoid seeing traffic from other instances in the same VPC or subnet, the administrator must create a flow log at the Network Interface level. This provides the most granular visibility and ensures the logs only contain traffic associated with the specific ENIs of that FortiGate instance.

Why other options are incorrect:

Option B: Changing the maximum aggregation interval from 10 minutes to 1 minute increases the frequency of log delivery and captures shorter-lived flows more accurately, but it does not change the scope of the resources being monitored.

Option C: This is a general troubleshooting statement and not a configuration action within the AWS Flow Log wizard that would filter the traffic by instance.

Option D: Changing the destination to Amazon Data Firehose changes how the logs are processed and delivered (e.g., for streaming to a SIEM), but the source data is still determined by the resource level selected (VPC vs. Interface).

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiCNAPP 24.x Administration Guide regarding Microsoft Azure onboarding and feature activation:

Separation of Integration Types (Option D): In FortiCNAPP, onboarding a cloud account via the automated configuration approach often initializes the Cloud Security Posture Management (CSPM) and Cloud Infrastructure Entitlement Management (CIEM) features. However, Workload Scanning (specifically Agentless Scanning) is treated as a distinct integration type within the platform.

Guided Configuration Requirement: Even after the account is onboarded, the administrator must navigate to the Integrations or Onboarding section and specifically add the Workload Scanning integration for that Azure account. This 'Guided Configuration' ensures that the necessary additional permissions (such as those required to create snapshots of disks and scan them) and resources (like the scanner VNet or regional scanners) are properly deployed within the Azure environment.

Why other options are incorrect:

Option A & B: Automated onboarding already handles the creation of necessary App Registrations and Service Principals. Manually adding more without following the specific integration workflow will not activate the workload scanning engine.

Option C: Threat policies are used to generate alerts based on existing data. If the raw workload scanning data is not being received from Azure, a policy will have no data to analyze; the issue is at the ingestion/integration layer, not the policy layer.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

As per the FortiOS 7.6 AWS Administration Guide and FortiWeb 7.4 cloud deployment documentation, understanding the AWS infrastructure layer is critical for integrating Fortinet virtual appliances. The two features that define AWS Network Access Control Lists (NACLs) are:

Stateless Nature (Option A): Unlike Security Groups, which are stateful (automatically allowing return traffic), NACLs are stateless. This means that if you allow inbound traffic on a specific port, you must also explicitly configure an outbound rule to allow the response traffic to leave the subnet. NACLs evaluate inbound and outbound traffic independently.

Default Configuration (Option C): Every VPC comes with a default NACL. By default, this NACL is configured to allow all inbound and outbound traffic. This is designed to ensure connectivity is not blocked until a custom security posture is defined. However, any custom NACL created manually starts by denying all traffic until rules are added.

Why other options are incorrect:

Option B: NACLs are associated at the subnet level, not the instance level. Security Groups are the components tied directly to an instance's Elastic Network Interface (ENI).

Option D: NACLs and Security Groups provide defense-in-depth and are designed to be used simultaneously. Traffic must pass through the NACL (subnet level) and then the Security Group (instance level) to reach its destination.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Automation Guide and the provided documentation for Ansible workflows, the following structure is required for managing multiple FortiGate nodes:

Inventory File (The Target List): The inventory is a single file that defines the list of managed nodes. It specifies critical information such as hostnames, connection details, and specifically the IP addresses of the target devices. According to the study guide, this inventory is a text file that lists all the systems you want to manage.

Playbook File (The Task List): You create and edit a separate file that acts as the playbook. This file is written in YAML format and contains the series of tasks that Ansible performs on the managed nodes to reach a desired state.

Minimum File Count: A basic Ansible workflow consists of exactly two files: one inventory file (text) and one playbook file (YAML). By listing the target IP address (e.g., 10.0.206.131) within the inventory text file, the administrator can manage the FortiGate device without needing individual files for every target.

Why other options are incorrect:

Option A & C: Creating a separate playbook or inventory file for each target is inefficient and contradicts the core Ansible workflow, which uses a single inventory to manage multiple hosts.

Option B: While the playbook is a .yaml file, the study guide specifically defines the inventory (where IP addresses are configured) as a text file in the context of the basic workflow.
