Fortinet NSE6_FAZ-7.2 Exam Dumps

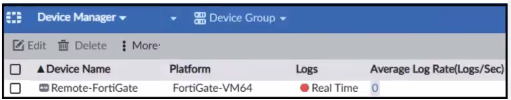

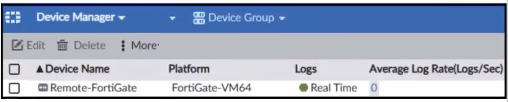

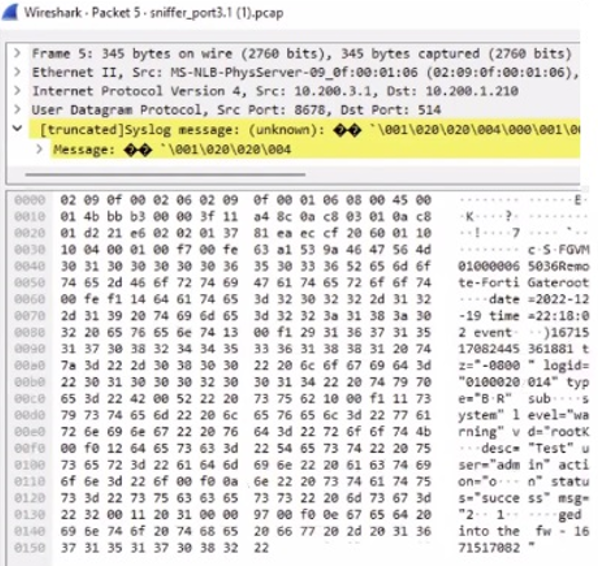

The exhibit shows a packet capture with a syslog message containing a log event from a FortiGate device. This log event includes several details such as the date, time, and event message. The corresponding image that matches this packet capture would be the one which shows that the FortiGate device has logs being received in real-time, as indicated by the highlighted section in the packet capture where it mentions 'real-time'. Therefore, Option A is the correct answer because it shows logs with 'Real Time' status for the FortiGate-VM64 device, indicating that this FortiAnalyzer is currently receiving real-time logs from the device, matching the activity in the packet capture. Reference: Based on the provided exhibits and the real-time logging information, correlated with the knowledge from the FortiAnalyzer 7.2 Administrator documentation regarding log reception and device management.

Link aggregation is a method used to combine multiple network connections in parallel to increase throughput and provide redundancy in case one of the links fail. This feature is used in network appliances, including FortiAnalyzer, to add redundancy to the network connections, ensuring that there is a backup path for traffic if the primary path becomes unavailable. Reference: The FortiAnalyzer 7.4.1 Administration Guide explains the concept of link aggregation and its relevance to

In a FortiAnalyzer Fabric, the FortiAnalyzer can recognize a Security Fabric group of devices, and it supports the Security Fabric by storing and analyzing logs from these units as if they were from a single device. The members of the Security Fabric group send their logs to the FortiAnalyzer, which acts as a supervisor for log storage and analysis, providing a centralized point of visibility and control over the logs. Reference: FortiAnalyzer 7.4.1 Administration Guide, 'Security Fabric' section.

The FortiAnalyzer command execute factory-reset is used to erase all device settings, images, databases, and logs on disk but preserves the current IP address and route information. This command effectively resets the FortiAnalyzer to its factory settings while maintaining its network configuration, allowing it to be quickly reconfigured with the same network settings. Reference: FortiAnalyzer 7.4.1 Administration Guide, 'Reset Commands' section.

In systems that support hardware RAID, hot swapping allows for the replacement of a failed disk without shutting down the system. This capability is crucial for maintaining uptime and ensuring data redundancy and availability, especially in critical environments. The RAID controller rebuilds the data on the new disk using redundancy data from the other disks in the array, ensuring no data loss and minimal impact on system performance.

In the context of a FortiAnalyzer unit equipped with hardware RAID support, the optimal approach to addressing a hard disk failure is to perform a hot swap of the disk. Hardware RAID configurations are designed to provide redundancy and fault tolerance, allowing for the replacement of a failed disk without the need to shut down the system. Hot swapping enables the administrator to replace the faulty disk with a new one while the system is still running, and the RAID controller will rebuild the data on the new disk, restoring the RAID array to its fully operational state. Reference: FortiAnalyzer 7.2 Administrator Guide - 'Hardware Maintenance' and 'RAID Management' sections.
