According to the SD-WAN 7.6 Core Administrator study guide and the FortiOS 7.6 Administration Guide, the selection of a preferred member in a Best Quality (priority) rule is determined by the measured quality metric (latency, in this case) and the link-cost-threshold.

Rule Logic (Best Quality): In the exhibit, the SD-WAN rule is configured with set mode priority, which corresponds to the Best Quality strategy. This strategy ranks members based on the link-cost-factor, which is set to latency.

The Link-Cost-Threshold: The exhibit shows link-cost-threshold(10), which is the default 10% value. This threshold is designed to prevent 'link flapping'. To replace the current preferred member, a new member must not only have a better latency but must be better by more than 10%.

The Calculation:

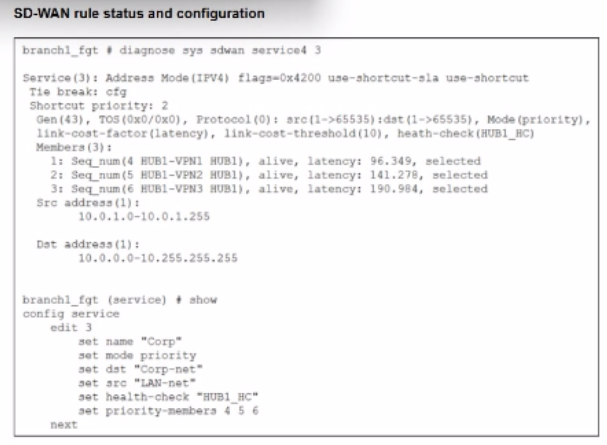

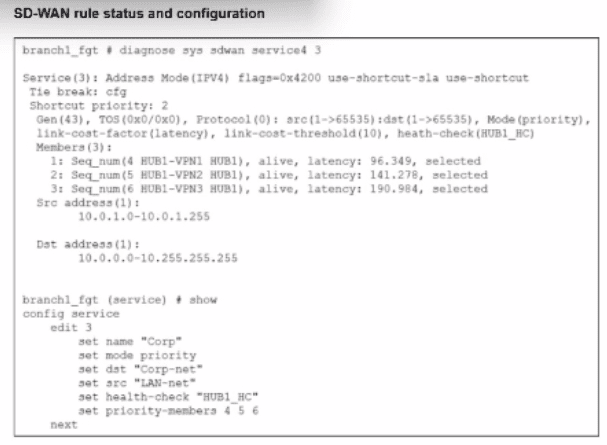

The current preferred member is HUB1-VPN1 with a real latency of 96.349 ms.

To calculate the 'target' latency a lower-priority member must achieve to take over, we use the formula: $Target = \frac{Current\_Latency}{(1 + \frac{Threshold}{100})}$.

$\frac{96.349}{1.1} = \mathbf{87.59\text{ ms}}$.

Evaluating Options:

Option A (80 ms): Since 80 ms is lower than the required 87.59 ms target, HUB1-VPN3 successfully overcomes the 10% advantage of HUB1-VPN1 and becomes the new preferred member.

Option D (90 ms): While 90 ms is lower than 96.349 ms, it is not lower than 87.59 ms. Therefore, the 10% threshold prevents a member switch, and HUB1-VPN1 remains preferred.

Option B: Incorrect because having a 'lower' latency is not enough due to the 10% threshold.

Option C: If HUB1-VPN1 moved to 200 ms, HUB1-VPN2 (at 141.278 ms) would likely become the new preferred member before HUB1-VPN3 (at 190.984 ms).

According to the SD-WAN 7.6 Core Administrator study guide and FortiOS 7.6 Administration Guide, the 'implicit rule' is the default rule at the bottom of the SD-WAN rule list (ID 0). It is only evaluated if traffic does not match any manually configured SD-WAN rules.

Policy Route Table Context (Option B): SD-WAN rules are technically a specialized form of policy-based routing. For a packet to match the implicit rule, it must first pass through the routing hierarchy. If traffic matches the implicit rule, it indicates that it did not match any higher-priority user-defined SD-WAN rules or any specific entries in the manual policy route table that would have intercepted the traffic earlier.

Session Information (Option E): When you use the CLI to inspect an active session (e.g., diagnose sys session list), the output contains a field for the SD-WAN Service ID. If traffic is steered by a user-defined rule, it displays the ID of that rule (e.g., service_id=1). However, when traffic falls through to the implicit rule, the session information displays no SD-WAN service ID (it often shows as 0 or is omitted), because the implicit rule does not function as a 'service' in the same way user-defined rules do.

Routing Behavior: The implicit rule follows the standard routing table (RIB/FIB) logic. It uses the priority and distance of the static routes to determine the path. If multiple paths have the same distance and priority, it uses the algorithm set by v4-ecmp-mode, but this is a function of the routing engine, not the SD-WAN engine itself.

Why other options are incorrect:

Option A: While v4-ecmp-mode (e.g., source-ip-based) is used for ECMP routing, this is part of the general FortiOS routing behavior for equal-cost paths in the FIB, whereas the implicit rule simply 'hands over' the decision to that routing table.

Option C: When traffic matches the implicit rule, the session is actually flagged with vwl_id=0 and potentially dirty if a route change occurs, but vwl_default is not the standard flag name used in this specific context in the curriculum.

Option D: This is incorrect because the implicit rule does respect weight, distance, and priority as defined in the static routes within the routing table; it does not distribute traffic 'regardless' of these values.

According to the SD-WAN 7.6 Core Administrator curriculum and the diagnostic outputs shown in the exhibit, the reason traffic is steered to HUB1-VPN3 instead of the expected HUB1-VPN1 (defined in SD-WAN rule ID 1) can be explained by two core routing principles in FortiOS:

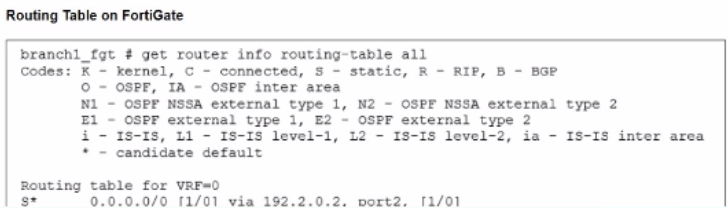

Valid Route Requirement (Option A): In the diagnose sys sdwan service 4 output (which corresponds to Rule ID 1), it shows the rule has members HUB1-VPN1, HUB1-VPN2, and HUB1-VPN3. A key principle of SD-WAN steering is that for a member to be 'selectable' by a rule, it must have a valid route to the destination in the routing table (RIB/FIB). If the routing table output (the third section of the exhibit) shows a route to 10.0.0.0/8 via HUB1-VPN3 but not through HUB1-VPN1, the SD-WAN engine will skip HUB1-VPN1 entirely because it is considered a 'non-reachable' path for that specific destination.

Policy Route Precedence (Option D): In the FortiOS route lookup hierarchy, Regular Policy Routes (PBR) are evaluated before SD-WAN rules. If an administrator has configured a traditional Policy Route (found under Network > Policy Routes) that matches traffic destined for 10.0.0.0/8 and specifies HUB1-VPN3 as the outgoing interface, the FortiGate will forward the packet based on that policy route and will never evaluate the SD-WAN rules for that session. This 'bypass' occurs regardless of whether the SD-WAN rule would have chosen a 'better' link.

Why other options are incorrect:

Option B: While member configuration priority (cfg_order) is a tie-breaker in some strategies, the SD-WAN rule logic is only applied if the routing table allows it or if a higher-priority policy route doesn't intercept the traffic first.

Option C: Lower route priority (which means higher preference in the RIB) affects the Implicit Rule (standard routing). However, SD-WAN rules are designed to override RIB priority for matching traffic. If HUB1-VPN1 was a valid candidate and no Policy Route existed, the SD-WAN rule would typically ignore RIB priority to enforce its own steering strategy.

According to the FortiSASE 7.6 Feature Administration Guide, steering bypass destinations (also known as split tunneling) allow administrators to optimize bandwidth by redirecting specific trusted traffic away from the SASE tunnel to the endpoint's local physical interface.

Destination Types (Option C): When creating a bypass destination, administrators can select from four distinct types: Infrastructure (pre-defined apps like Zoom/O365), FQDN (specific domains), Local Application (identifying processes on the laptop), or Subnet (specific IP ranges).

Apply Condition (Option B): The 'Apply' condition is a flexible setting that allows the administrator to choose when the bypass is active. It can be applied to endpoints that are On-net (inside the office), Off-net (remote), or Both. This ensures that if a user is in the office, they don't use the SASE tunnel for local resources, but if they are home, they might still bypass high-bandwidth sites like YouTube to preserve tunnel capacity.

Why other options are incorrect:

Option A: Subnet is one of four types and is not the only type supporting these conditions.

Option D: The system explicitly supports 'Both' to ensure consistency across network transitions.

According to the SD-WAN 7.6 Core Administrator study guide and the FortiOS 7.6 Administration Guide, for the FortiGate SD-WAN engine to successfully steer traffic using SD-WAN rules, three fundamental configuration components must be in place. This is because the SD-WAN rule lookup occurs only after certain initial conditions are met in the packet flow:

Interfaces (Option C): You must first define the physical or logical interfaces (such as ISP links, LTE, or VPN tunnels) as SD-WAN members. These members are then typically grouped into SD-WAN Zones. Without designated member interfaces, there is no 'pool' of links for the SD-WAN rules to select from.

Routing (Option D): For a packet to even be considered by the SD-WAN engine, there must be a matching route in the Forwarding Information Base (FIB). Usually, this is a static route where the destination is the network you want to reach, and the gateway interface is set to the SD-WAN virtual interface (or a specific SD-WAN zone). If there is no route pointing to SD-WAN, the FortiGate will use other routing table entries (like a standard static route) and bypass the SD-WAN rule-based steering logic entirely.

Firewall Policies (Option A): In FortiOS, no traffic is allowed to pass through the device unless a Firewall Policy permits it. To steer traffic, you must have a policy where the Incoming Interface is the internal network and the Outgoing Interface is the SD-WAN zone (or the virtual-wan-link). The SD-WAN rule selection happens during the 'Dirty' session state, which requires a policy match to proceed with the session creation.

Why other options are incorrect:

Security Profiles (Option B): While mandatory for Application-level steering (to identify L7 signatures), basic SD-WAN steering based on IP addresses, ports, or ISDB objects does not require security profiles to be active.

Traffic Shaping (Option E): This is an optimization feature used to manage bandwidth once steering is already determined; it is not a prerequisite for the steering engine itself to function.
