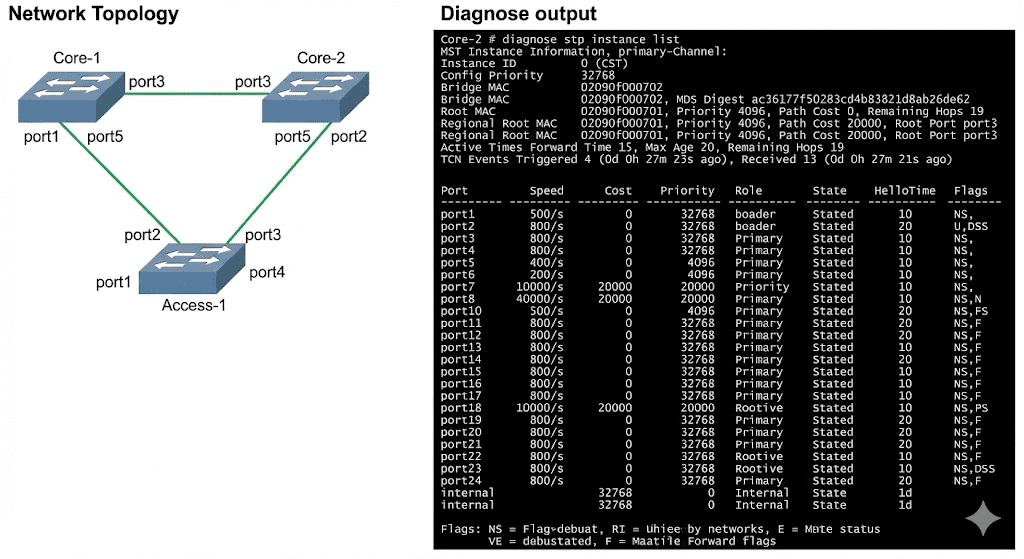

Fortinet NSE5_FSW_AD-7.6 Exam Dumps

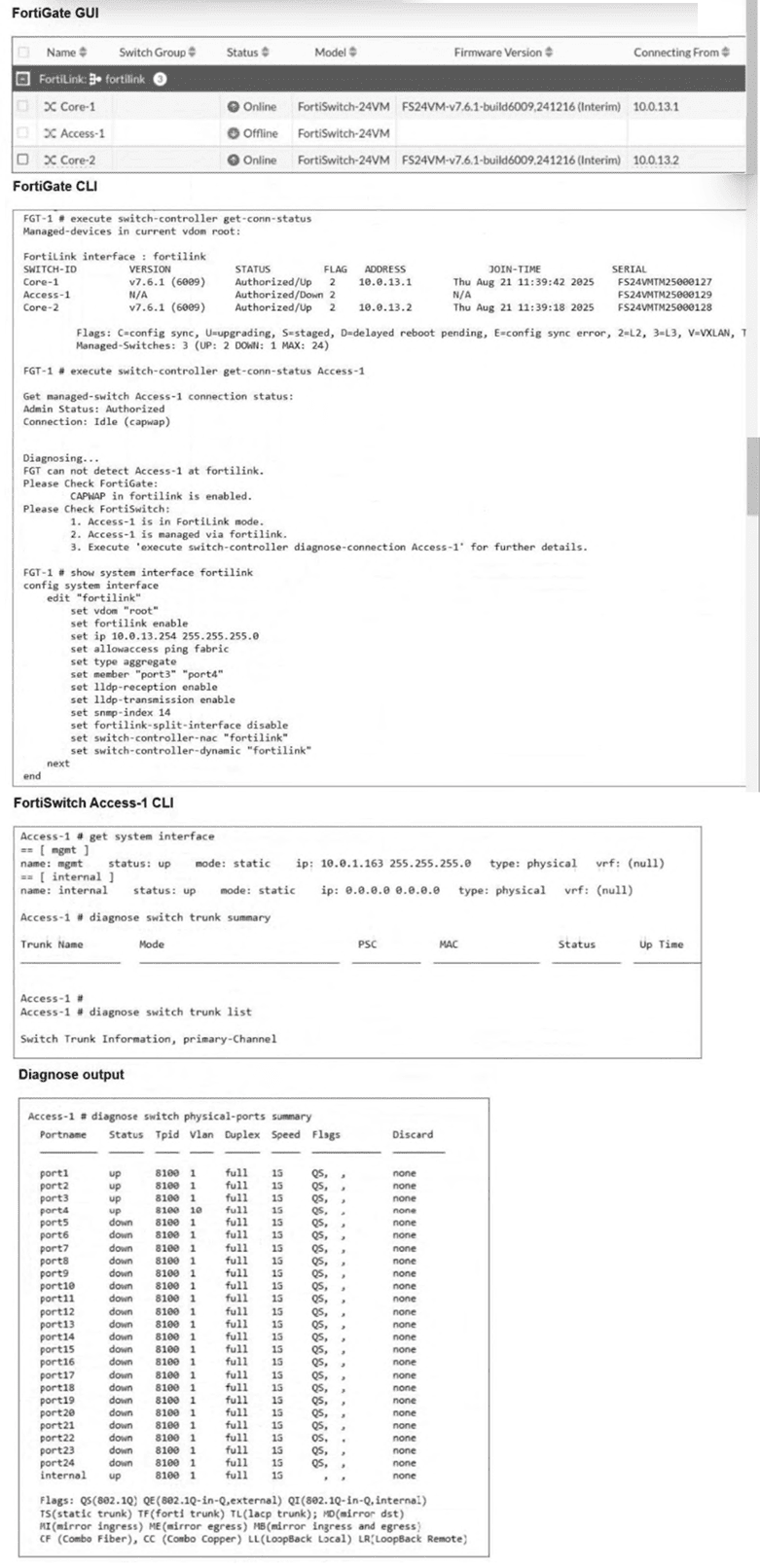

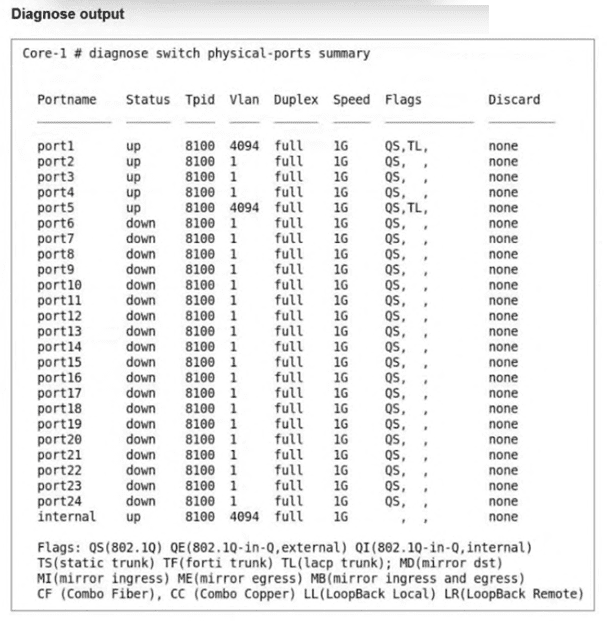

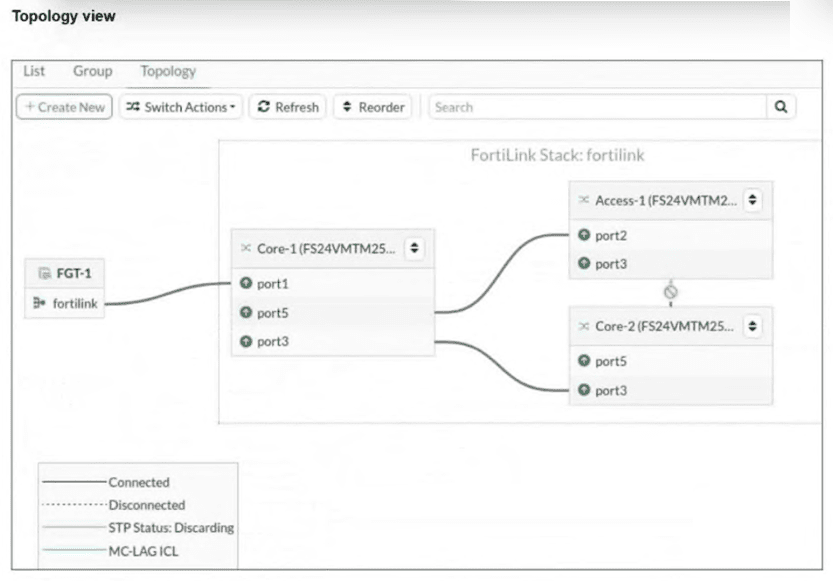

Fortinet's recommended approach for simplified management and full Security Fabric integration is to manage FortiSwitch devices directly from a FortiGate using FortiLink. According to the FortiOS 7.6 and FortiSwitchOS 7.6 documentation, FortiLink enables FortiGate to act as the centralized controller for all connected FortiSwitch units, providing seamless integration between switching, routing, and security services.

When FortiSwitch is managed through FortiGate with FortiLink, the switches become native members of the Security Fabric. This allows FortiGate to centrally define VLANs, enforce Layer 2 and Layer 3 security policies, control inter-VLAN routing, apply NAC and quarantine actions, and provide end-to-end visibility across users, devices, and applications. Inter-VLAN traffic is routed and inspected by FortiGate, ensuring consistent policy enforcement and logging.

FortiLink management significantly reduces operational complexity by eliminating the need for separate switch management platforms. Configuration, firmware upgrades, monitoring, troubleshooting, and topology visualization are all performed from the FortiGate GUI or CLI. This tightly integrated model is specifically designed for branch, campus, and mid-sized enterprise deployments that prioritize simplicity, security consistency, and operational efficiency.

The other options do not meet the stated objective. FortiSwitch-Manager is not a current management solution, FortiManager is intended for large-scale multi-device orchestration rather than direct Security Fabric integration, and FortiEdge Cloud focuses on cloud-based management without native FortiGate security enforcement.

Therefore, to simplify management and ensure full Security Fabric integration, the correct and fully verified choice is D. Manage FortiSwitch on FortiGate using FortiLink.

'Classification: FortiSwitch maps packets with a given CoS or DSCP marking to an egress queue. There are eight egress queues on each port: queues 0 to 7.'

In Quality of Service (QoS) mechanisms, the process of mapping packets with specific CoS (Class of Service) or DSCP (Differentiated Services Code Point) markings to an egress queue involves two key steps:classificationandqueuing.

Classification: This occurs on the ingress side (incoming traffic). The switch examines the packet headers (e.g., CoS or DSCP values) to determine how the traffic should be treated. Based on this classification, the switch assigns the packet to a specific priority level or queue.

Queuing: Once the packet is classified, it is mapped to an egress queue based on its priority level. The egress queues are used to manage how traffic is transmitted out of the switch.

Option A (Queuing for egress traffic)refers to managing how packets leave the switch, but it does not involve the initial mapping of CoS/DSCP values to a queue.

Option C (Rate limiting for egress traffic)is about controlling the rate of outgoing traffic, which is unrelated to CoS/DSCP mapping.

Option D (Marking for ingress traffic)involves modifying the CoS or DSCP values of packets as they enter the switch, but it does not map them to an egress queue.

Thus,classification for ingress trafficis the mechanism that identifies and maps packets with specific CoS or DSCP markings to an appropriate egress queue.

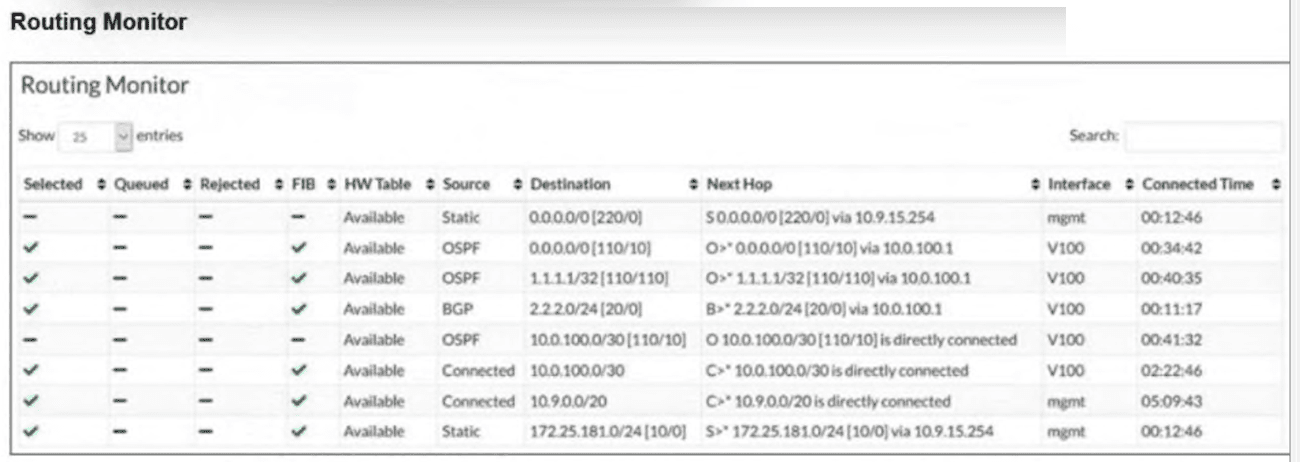

In dynamic routing on FortiSwitch, certain types of interfaces are utilized to participate in the routing processes. The types of interfaces that can be used include:

Loopback Interfaces (B):Loopback interfaces are virtual interfaces that are always up, making them ideal for use in routing protocols where a stable interface is necessary. They are commonly used to establish router IDs and manage routing information more reliably.

Switch Virtual Interfaces (C):Switch Virtual Interfaces (SVIs) are assigned to VLANs and can have IP addresses assigned to them, making them capable of participating in Layer 3 routing. SVIs are essential for routing between different VLANs on a switch and can participate in dynamic routing protocols to advertise networks or make routing decisions.

Physical Interfaces (D)andDetected Management Interfaces (A)are not typically used directly by dynamic routing protocols for their operations in the context of FortiSwitch.

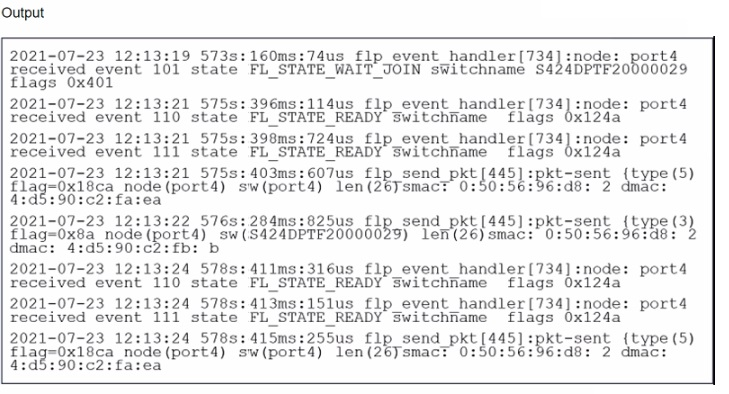

The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here's a breakdown of the relevant lines:

Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.

573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.

Event 101:This indicates the FortiSwitch is in a 'wait join' state (FL_STATE_WAIT_JOIN). This means it's discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.

switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.

flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.

Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).

Why the Other Options Are Less Likely:

C . FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the 'wait join' state suggests authorization hasn't necessarily completed yet.

D . FortiSwitch is ready to push its new hostname to FortiGate.There's no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.

In Summary:

The key point is the 'FL_STATE_WAIT_JOIN' state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.

According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch 7.6 Administrator Study Guide, Access Control Lists (ACLs) are used to perform multiple actions on matching traffic as it passes through the switch pipeline. The documentation explicitly categorizes these valid actions into three distinct functional groups:Traffic processing,QoS (Quality of Service), andVLANmodifications.

Traffic Processing (Option C):This is a primary category of ACL actions. It includes operations that dictate how a frame is physically handled or monitored. Valid specific actions under this category includedrop(discarding the packet),count(incrementing a packet counter for statistics),redirect(sending the packet to a specific interface or CPU queue), andmirror(copying the traffic to a monitor port).

QoS (Option E):The QoS category allows the switch to manage traffic prioritization and bandwidth. ACLs can be configured toset the egress queue(assigning a frame to one of the eight priority queues),remark CoS (Class of Service)orDSCP (Differentiated Services Code Point)values in the frame header, and applypolicersfor rate limiting.

VLAN / Set outer VLAN tags (Option D):Under the VLAN category, the most notable action is the ability toset outer VLAN tagson frames. This is particularly useful in scenarios involving Q-in-Q tunneling or service provider environments where a secondary tag is required for transport across a managed fabric.

It is important to note thatAssign the VLAN ID (Option A)is typically a function ofNAC (Network Access Control)orDynamic VLAN Assignmentrather than a standard ACL action; within an ACL context, vlan-id is primarily used as aclassifier(to match traffic) rather than an action.Quarantine devices (Option B)is a high-level security response triggered by the FortiGate NAC engine and is not a direct action available within the FortiSwitch ACL configuration menu.
