Fortinet NSE4_FGT_AD-7.6 Exam Dumps

''If SD-WAN is disabled, you can change the ECMP load balancing algorithm on the FortiGate CLI using the commands shown on this slide.''

''When SD-WAN is enabled, FortiOS hides the v4-ecmp-mode setting and replaces it with the load-balance-mode setting under config system sdwan. That is, when you enable SD-WAN, you control the ECMP algorithm with the load-balance-mode setting.''

''There are some differences between the two settings. The main difference is that load-balance-mode supports the volume algorithm, and v4-ecmp-mode does not.''

''These routes are called equal cost multipath (ECMP) routes...''

Technical Deep Dive:

The correct answers are A and D.

A is correct because when SD-WAN is enabled, FortiOS no longer uses v4-ecmp-mode; it uses load-balance-mode under config system sdwan. That is the explicit SD-WAN control point for ECMP behavior.

D is correct because when SD-WAN is disabled, ECMP configuration is done in the regular system routing settings, not under SD-WAN. The study guide states that you change the ECMP algorithm on the FortiGate CLI when SD-WAN is disabled, which corresponds to the classic config system settings ECMP controls.

Why the others are wrong:

B is wrong because the guide explicitly says load-balance-mode supports volume, while v4-ecmp-mode does not. So you cannot set v4-ecmp-mode to volume-based.

C is wrong because ECMP requires equal-cost routes. If distance or priority differ, they are no longer ECMP candidates; FortiGate selects the preferred route instead. The concept of ECMP itself requires equal route cost attributes.

From an implementation standpoint, the common CLI patterns are:

config system settings

set v4-ecmp-mode source-ip-based

end

and, with SD-WAN enabled:

config system sdwan

set load-balance-mode source-ip-based

end

On hardware platforms, ECMP still affects session distribution at the routing decision stage before later security services are applied. NP offload can accelerate forwarding after route selection, but the ECMP decision itself is a FortiOS control-plane routing function.

''With this method, you must create a user group and add the preconfigured remote server to the group. This setup allows you to select one or more pre-existing groups from the Radius server, enabling any user within those groups to be authenticated.''

''The response from the server reports success, failure, and group membership details.''

''Note that Fortinet has a vendor-specific attributes (VSA) dictionary to identify the Fortinet-proprietary RADIUS attributes. This capability allows you to extend the basic functionality of RADIUS.''

Technical Deep Dive:

The attribute shown in the exhibit is Fortinet-Group-Name = Training. This is a Fortinet RADIUS Vendor-Specific Attribute (VSA) used to return group membership information to FortiGate. FortiGate uses that returned value to match the authenticated user to the corresponding FortiGate user group, in this case Training.

That is why A is correct: the administrator needs this so FortiGate can authenticate users and place or match them into the Training group for identity-based policy control.

Why the others are wrong:

* B is wrong because the RADIUS secret is configured separately as the shared secret between FortiGate and the RADIUS server, not as a Fortinet-Group-Name attribute.

* C is wrong because OU matching is an LDAP concept, not standard RADIUS group matching.

* D is wrong because this attribute is not for ''any'' group; it is explicitly returning the specific group name Training.

In practice, this lets FortiGate apply firewall policies such as:

```bash

config user group

edit 'Training'

set member 'RADIUS_Server'

next

end

```

Then the RADIUS server returns Fortinet-Group-Name=Training, and FortiGate matches the user into that group for policy enforcement.

Based on the exhibit and the FortiOS 7.6 SSL/SSH Inspection documentation, the correct answer is C.

Understanding the Exhibit Configuration

In the SSL/SSH Inspection Profile, the following settings are shown:

Inspection method: Full SSL Inspection

Server certificate SNI check: Strict

This setting directly controls how FortiGate validates the Server Name Indication (SNI) provided by the client during the TLS handshake.

FortiOS 7.6 Behavior of ''Server certificate SNI check''

FortiOS supports three modes for Server certificate SNI check:

Disable

No validation between SNI and server certificate.

Enable

FortiGate checks SNI against the certificate.

If mismatch occurs, FortiGate may still allow the session with reduced validation.

Strict

FortiGate enforces a strict match.

The SNI must match either the CN (Common Name) or one of the SAN (Subject Alternative Name) entries in the server certificate.

If the SNI does not match either CN or SAN, the TLS session is immediately terminated.

The exhibit clearly shows Strict selected.

Why Option C is Correct

With Strict enabled, FortiGate rejects the TLS connection when:

The SNI does not match the CN, and

The SNI does not match any SAN entry

This results in the connection being closed, not allowed with warnings or fallback behavior.

Therefore:

C . FortiGate will close the connection if the SNI does not match the CN or SAN fields is exactly the documented behavior.

Why the Other Options Are Incorrect

A: FortiGate does not fall back to using the CN for URL filtering when Strict is enabled.

B: There is no ''accept with warning'' behavior in Strict mode.

D: Incorrect logical condition. FortiGate does not require mismatch with both CN and SAN simultaneously; a mismatch with either valid field set is sufficient to close the connection.

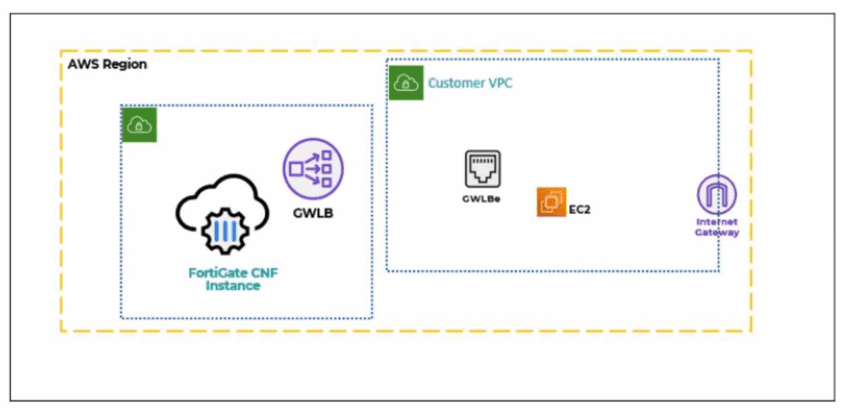

In the FortiGate Cloud-Native Firewall (CNF) for AWS architecture, traffic from workloads (such as an EC2 instance) in the customer VPC is redirected to the security service (FortiGate CNF) using AWS Gateway Load Balancer (GWLB) technology.

The key AWS component that must exist inside the customer VPC to steer workload traffic to the GWLB is the:

Gateway Load Balancer Endpoint (GWLBe)

This endpoint is what the customer VPC routes point to (for example, default route or subnet route entries), enabling transparent insertion of the FortiGate CNF inspection path for EC2 traffic.

Why the other options are not correct:

A: CNF does not ''create the customer VPC'' (that is customer-owned), and ''GWLBe'' is the only relevant created item here, not the whole VPC.

C: Customer VPC is not created by CNF, and GWLB is typically part of the CNF service side; the question specifically asks what must be created to handle traffic from the EC2 instance (that requires GWLBe in the customer VPC).

D: CNF does not create the Internet Gateway (IGW) in the customer VPC, and IGW is not the required CNF-created component for steering traffic to FortiGate CNF.

''If you create a firewall address object with the type Subnet or FQDN, you can use that firewall address as the destination of one or more static routes. First, enable Routing configuration in the firewall address configuration. After you enable it, the firewall address object becomes available for use in the Destination drop-down list for static routes with named addresses.''

Technical Deep Dive:

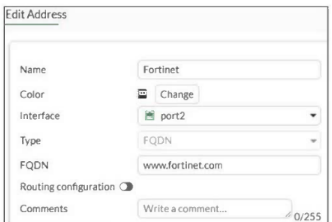

The correct answer is D. The exhibit shows an FQDN address object (www.fortinet.com), but Routing configuration is disabled. FortiGate does not make that object available as a selectable destination for named static routes until this option is enabled.

Why the others are wrong:

A is incomplete. Even if the static route uses Named Address, the object still will not appear unless Routing configuration is enabled on the address object.

B is not the first requirement from the study guide. DNS resolution matters operationally for FQDN objects, but the documented reason it does not appear in the drop-down is the missing Routing configuration setting.

C is unrelated. The interface does not have to be set to port2 first just to make the address object selectable.

In practice, the fix is:

config firewall address

edit 'Fortinet'

set type fqdn

set fqdn 'www.fortinet.com'

set allow-routing enable

next

end

After that, the object becomes available in the static route Destination field when using a named address.
