Refer to the exhibits.

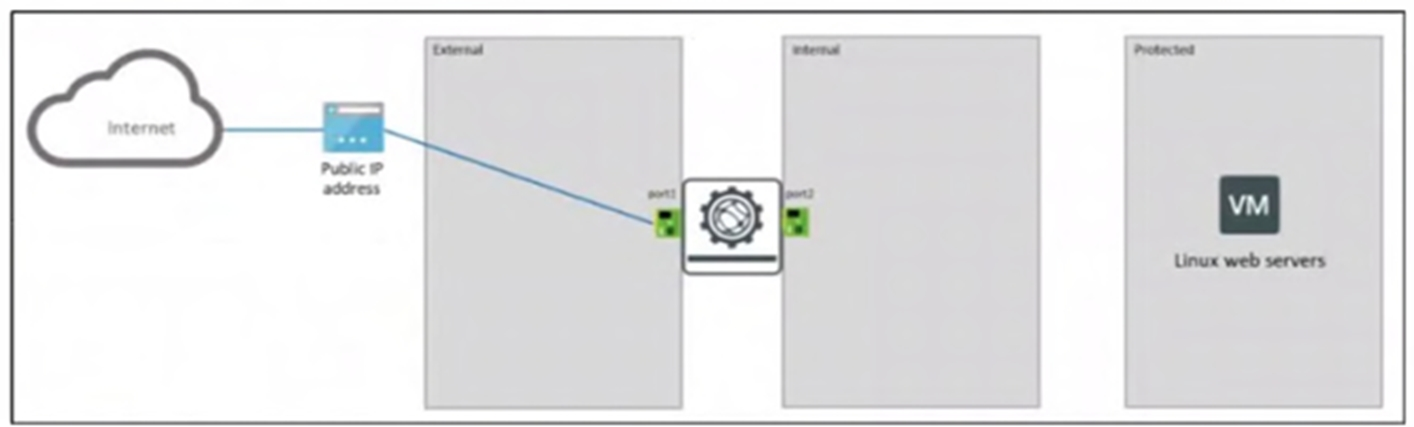

A high availability (HA) active-active FortiGate with Elastic Load Balancing (ELB) and Internal Load Balancing (ILB) was deployed with a default setup to filter traffic to a Linux server running Apache server.
Ports 80 and 22 are open on the Linux server, and on FortiGate a VIP and firewall policy are configured to allow traffic through ports 80 and 22. Traffic on port 80 is successful, but traffic on port 22 is not detected by FortiGate.
What configuration changes could you perform to allow SSH traffic?
Show Answer
Hide Answer
Correct Answer:
D

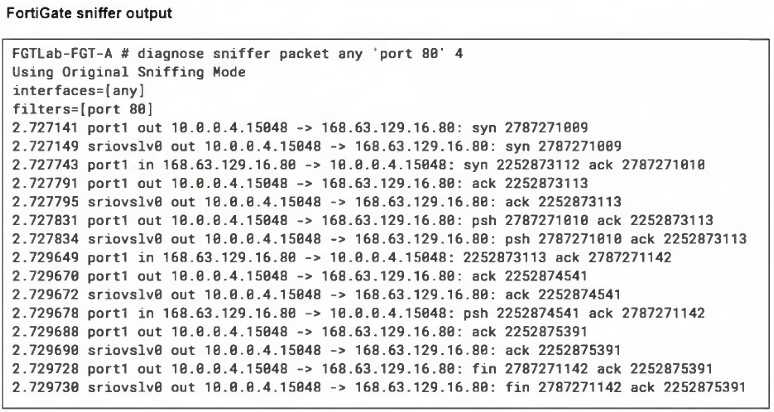

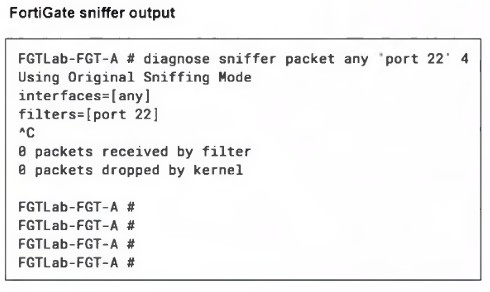

Since port 80 traffic is reaching the FortiGate (as shown in the sniffer output) but port 22 traffic is not, the issue lies before the FortiGate, at the Azure Load Balancer level. Azure Load Balancers require an Inbound NAT rule to forward specific ports (like SSH on port 22) to a specific backend VM. Creating a new Inbound NAT rule for port 22 will allow SSH traffic to be properly routed to the FortiGate VM.
