Fortinet FCP_FSA_AD-5.0 Exam Dumps

From the FortiClient EMS Integration lesson, the Study Guide states that FortiSandbox and FortiClient EMS integration helps break the kill chain by monitoring all downloads, removable media, mapped network drives, and email client file downloads --- intercepting threats at the Delivery stage before they can execute on the endpoint.

Additionally, from the Attack Methodologies section: 'When a USB is attached to a host protected with FortiClient, FortiClient can send the files on the USB drive to FortiSandbox for analysis, before allowing the user access to the files' --- further confirming the Delivery stage focus.

From the High Availability and Management lesson, the Study Guide states:

'You must configure the HA group name, password, and the cluster virtual IP. The worker nodes provide load balancing. The primary node distributes scan jobs to the worker nodes.'

'You must configure the HA group name, password, and the virtual IP only on the primary node... Devices will interact with the cluster using this virtual IP.'

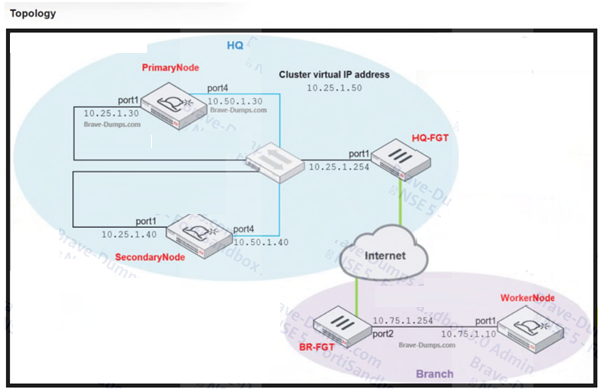

From the exhibit topology:

Cluster Virtual IP address = 10.25.1.50

Primary Node port1 = 10.25.1.30

Secondary Node port1 = 10.25.1.40

Worker Node port1 = 10.75.1.10

The worker node must be configured to point to the Cluster Virtual IP (10.25.1.50), not the individual primary node IP. This is because worker nodes join the cluster by connecting to the cluster virtual IP address.

Therefore the correct command is: hc-worker -a -sI0.25.1.50 -p

From the Deployment and System Settings lesson, the Study Guide explicitly states:

'The status command shows information about the system, including firmware level, device serial number, disk usage, Windows VM status, states of the boot and data disks, and more. For VM appliances, it will also show the FortiSandbox license status.'

The key phrase is 'For VM appliances, it will also show the FortiSandbox license status' --- making the status command the correct choice for verifying license validity on a FortiSandbox VM deployment.

While vm-license -l shows installed Windows/Microsoft Office license keys, and vm-status shows guest VM image information, neither directly reports on the FortiSandbox appliance license validity. The status command is the definitive command for checking overall system and license status.

From the Deployment and System Settings lesson, the Study Guide states:

'Other ports, with the exception of port3, can also be configured as management ports from CLI.'

'You can set additional ports as management port using the CLI command shown on this slide.'

From the Lab Guide (Exercise 4 - Using Inline Scanning):

'FortiGate and FortiSandbox communicate through port 4443. Management or API ports grant access through port 4443.'

'Enter the following command to enable API access on port2: set api-port port2'

Ports that are designated as either administration interfaces or API interfaces cannot be selected for 802.3ad aggregate bonding because:

Option A --- Port 4 configured as an administration interface is reserved for management traffic and cannot be repurposed for link aggregation

Option C --- Port 4 configured as an API interface is dedicated for API communication (port 4443) and is similarly restricted from being used in aggregate bonding configurations

Port 4 in the Lab Guide is specifically referenced as the HA communication and management port, confirming these restrictions apply when special roles are assigned to interfaces.

From the Scanning and Rating Components lesson, the Study Guide explicitly states:

'The rating engine analyzes the tracer engine's information.' --- confirms Option E

'FortiSandbox checks connection attempts to any URLs against the FortiGuard web filtering database. FortiSandbox submits hashes of files generated during sandbox analysis to the Sandbox Community Cloud to check for existing verdicts. Additionally, it compares these file hashes against the FortiGuard Cloud-Based Threat Intelligence database.' --- confirms Option B

'After analysis is complete, the rating engine generates a verdict.' --- confirms Option D

'Finally, the rating engine generates a report containing all details collected by the tracer engine.'

Option A is incorrect as the rating engine does not rate third-party device effectiveness. Option C is incorrect --- verdict sharing is done by the FortiSandbox system through malware/URL packages, not specifically by the rating engine component.
