Fortinet FCP_FAZ_AN-7.4 Exam Dumps

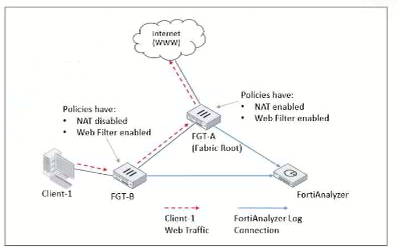

The topology shows a Security Fabric setup involving FortiGate devices (FGT-A and FGT-B) and a FortiAnalyzer for centralized logging. Let's break down the logging and traffic flow behavior:

Traffic Flow Analysis:

Client-1 initiates web traffic directed to the internet, which is routed through FGT-B and then FGT-A before reaching the internet. This is indicated by the direction of the red-dashed arrow from Client-1 through FGT-B to FGT-A.

Policy and NAT Settings:

On FGT-B, NAT is disabled, meaning it will pass the traffic through without altering the source IP. This device has a Web Filter enabled with a policy to log violations only.

On FGT-A, NAT is enabled, and a Web Filter profile is also applied. Like FGT-B, it logs only violations for web filtering.

Logging Behavior:

Since both FortiGate devices have logging enabled for traffic and web filtering, they can create logs if conditions are met.

FGT-B will log all traffic, as per its configuration, and will also create web filter logs if it detects a violation, as the web filter profile is applied. Because NAT is disabled on FGT-B, it processes the traffic but doesn't perform any address translation, allowing it to see the original source IP of Client-1.

FGT-A, as the Security Fabric root, will handle NAT and forward the traffic to the internet. However, in this case, the question is focused on where the traffic and web filter logs would be generated first, particularly by FGT-B.

Option Analysis:

Option A - Only FGT-B will create traffic logs: This is incorrect because FGT-B can create both traffic logs and web filter logs if it detects a violation.

Option B - FGT-B will see the MAC address of FGT-A and notify FGT-A to log: This is not how logging works in this setup. Each FortiGate logs independently based on configured policies.

Option C - FGT-B will create traffic logs and will create web filter logs if it detects a violation: This is correct, as FGT-B has logging enabled and will log traffic and web filter violations.

Option D - Only FGT-A will create web filter logs if it detects a violation: This is incorrect, as FGT-B can also log web filter violations independently.

Conclusion:

Correct Answe r : C. FGT-B will create traffic logs and will create web filter logs if it detects a violation.

FGT-B is responsible for logging the traffic from Client-1 and will generate web filter logs if there is a policy violation, as configured.

FortiOS 7.4.1 documentation on Security Fabric logging behavior and FortiAnalyzer log integration.

When a generated report does not include the expected information despite the logs being present, there are several factors to check to ensure accurate data representation in the report.

Option A - Check the Time Frame Covered by the Report:

Reports are generated based on a specified time frame. If the time frame does not encompass the period when the relevant logs were collected, those logs will not appear in the report. Ensuring the time frame is correctly set to cover the intended logs is crucial for accurate report content.

Conclusion: Correct.

Option B - Disable Auto-Cache:

Auto-cache is a feature in FortiAnalyzer that helps optimize report generation by using cached data for frequently used datasets. Disabling auto-cache is generally not necessary unless there is an issue with outdated data being used. In most cases, it does not directly impact whether certain logs are included in a report.

Conclusion: Incorrect.

Option C - Increase the Report Utilization Quota:

The report utilization quota controls the resource limits for generating reports. While insufficient quota might prevent a report from generating or completing, it does not typically cause specific log entries to be missing. Therefore, this option is not directly relevant to missing data within the report.

Conclusion: Incorrect.

Option D - Test the Dataset:

Datasets in FortiAnalyzer define which logs and fields are pulled into the report. If a dataset is misconfigured, it could exclude certain logs. Testing the dataset helps verify that the correct data is being pulled and that all required logs are included in the report parameters.

Conclusion: Correct.

Conclusion:

Correct Answe r : A. Check the time frame covered by the report and D. Test the dataset.

These actions directly address the issues that could cause missing information in a report when logs are available but not displayed.

FortiAnalyzer 7.4.1 documentation on report generation settings, time frames, and dataset configuration.
