Although /var/log/ltm is primarily associated with Local Traffic Manager events, it is also the primary destination for system-level alerts generated by the Control Plane's chmand (Chassis Manager Daemon). Hardware status changes, including power supply failures, fan speeds, and temperature warnings, are logged as 'notice' or 'critical' events within the LTM log file.

Reporting device status includes monitoring physical resource exhaustion, such as memory. The Control Plane provides both a command-line method via TMSH (show /sys memory) and a graphical method under Statistics > Module Statistics > Memory to report on how memory is allocated across TMM and the Linux host494949494949494949. This is essential for identifying potential 'Aggressive Mode' triggers or hardware performance bottlenecks50.

The EUD is a 33hardware-level diagnostic tool that runs outside of the TMOS operating system. Because it is used when the system cannot boot or is in a pre-boot state, it cannot be accessed via the GUI or management network. The administrator must connect physically via the serial Console Port to interact with the boot menu and initiate the hardware tests.

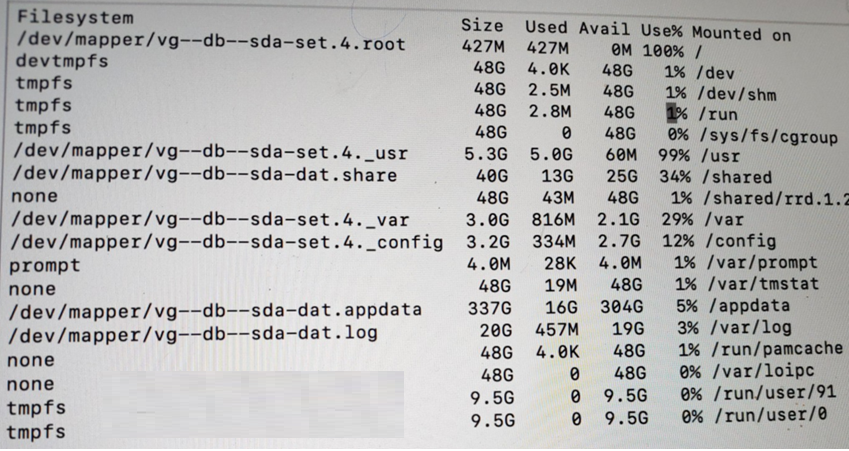

When troubleshooting a BIG-IP system where a partition is reported as full (100% utilization), identifying and removing large or unnecessary files is the immediate next step for restoration of system stability.

Symptoms of Full Partitions: If a file system (such as the root / or /var) becomes full, it can result in unpredictable system behavior, failure to save configurations, and the inability to log in to the Web UI.

The Root (/) Partition: This partition is intentionally kept small on F5 systems. It is highly sensitive to the storage of third-party software or diagnostic files that should ideally be stored in the /shared or /var directories.

Procedural Resolution: To resolve 100% disk usage, administrators should check for large files on the affected partition using CLI commands like du -ah or find / -xdev -type f -exec du {} \; | sort -rn | head -20.

Common Culprits: Large files typically causing these issues include old core files, tech support bundles, large diagnostic logs (packet diags), or temporary files created during administrative tasks.

Diagnostics vs. Remediation: While tests like the EUD (End User Diagnostics) or platform diagnostics are useful for hardware verification, they do not resolve file system exhaustion issues that have already reached a critical 100% state.

Time synchronization is a critical component of Control Plane management, as it ensures that logs are accurately timestamped and that High Availability (HA) trust relationships remain valid1.

Configuration Location: The list of configured NTP (Network Time Protocol) servers and their status is managed under System > Configuration > Device > NTP .

Procedural Importance: If the system clock drifts significantly between two devices in an HA pair, the Control Plane may experience a 'Time Delta' error33. This drift often causes a failure in device trust, preventing the ConfigSync process from functioning correctly.

System Integrity: Accurate time is also essential for the validity of SSL/TLS certificates used for both administrative management access and high availability communication.

Verification: Administrators can use this section of the Configuration Utility to confirm that the BIG-IP is communicating with its designated upstream time sources and that the local clock is correctly synchronized to the network environment .
