To determine if an iRule is influencing traffic for a specific Virtual Server, the administrator must verify the association between the Virtual Server object and any applied scripts. In the BIG-IP Configuration Utility (GUI), this association is found under the Resources tab of the specific Virtual Server. While there is an 'iRules' sub-menu under Local Traffic, checking the Virtual Server's Resources tab is the definitive way to see which specific rules are currently active and in what order they are being processed for that particular traffic flow.

From the Command Line Interface (CLI), the tmsh list /ltm virtual <virtual_server> command provides a full text-based output of the virtual server's configuration. If iRules are applied, they will appear within a 'rules { ... }' block in the command output. This is more effective than Option A, which only lists the contents of the iRule itself but does not show if or where it is applied. Option C is a common misconception; while some versions of the GUI have reorganized menus, the standard location for managing the association of profiles, policies, and iRules to a Virtual Server remains the 'Resources' section. By identifying the applied iRule, an administrator can then review the script logic---often containing commands like pool or node---to see if it is overriding the default pool selection based on specific HTTP headers, URI paths, or client IP addresses.

In F5 BIG-IP administration, iApps are designed to manage complex application configurations as a single unit. When an iApp is deployed, it creates an 'Application Service' object that owns all the associated LTM objects, such as Virtual Servers, Pools, and Nodes. By default, these iApps are created with Strict Updates enabled. Strict Updates is a safety mechanism that prevents administrators from making manual 'out-of-band' changes to the individual objects created by the iApp. The system enforces this because manual changes would be overwritten the next time the iApp template is updated or re-entered.

When the administrator attempts to change the destination IP address directly on the Virtual Server object, the BIG-IP system checks the 'Strict Updates' flag. If it is set to 'Enabled,' the system blocks the modification and generates the error message stating the service must be updated via the application management interface. To resolve this, the administrator must navigate to the iApp >> Application Services menu, select the specific application service, and go to the 'Reconfigure' tab. Within the iApp configuration form, the destination IP can be safely changed. Alternatively, if the administrator specifically wants to manage the objects manually and forgo the benefits of the iApp template management, they could disable 'Strict Updates' in the iApp properties, though this is generally discouraged as it breaks the template's logic. The error is not related to subnetting or duplicate IPs, but strictly to the configuration authority assigned to the iApp service.

The issue described is a classic symptom of asymmetric routing, which frequently occurs when the BIG-IP system and the back-end servers reside on the same subnet (often referred to as a 'one-arm' deployment).

The Routing Problem: By default, the BIG-IP system preserves the original client source IP address when forwarding traffic to a pool member. If the server is in the same subnet as the client or if the server's default gateway is not the BIG-IP, the server will attempt to send its response directly back to the client's IP address, bypassing the BIG-IP.

Stateful Failure: Since the BIG-IP is a Full Proxy, it maintains a state table. Because the response packet never returns through the BIG-IP, the system cannot complete the three-way handshake or manage the application session, resulting in a connection failure for the user.

The Solution (SNAT): Enabling Source Network Address Translation (SNAT) solves this by changing the source IP address of the request to an IP address owned by the BIG-IP (typically a self-IP).

Requirement for Subnet Alignment: To ensure the server sends the response back to the BIG-IP, the translation address must be reachable. By using a self-IP configured in the same subnet as the servers, the BIG-IP ensures that the server sees the request coming from a local 'neighbor.' The server will then naturally send the response back to that self-IP, allowing the BIG-IP to translate the packet back and forward it to the client.

Why other options are incorrect:

A: Disabling address translation would ensure the server-side traffic uses the client IP, making asymmetric routing inevitable in this scenario.

B: This is technically contradictory; 'Auto Map' specifically uses existing self-IPs and does not require or use a 'SNAT pool' configuration.

C: While using a specific translation address can work, it does not inherently guarantee the Layer 2/Layer 3 reachability mentioned in the scenario as effectively as ensuring the self-IP is correctly placed in the server's subnet.

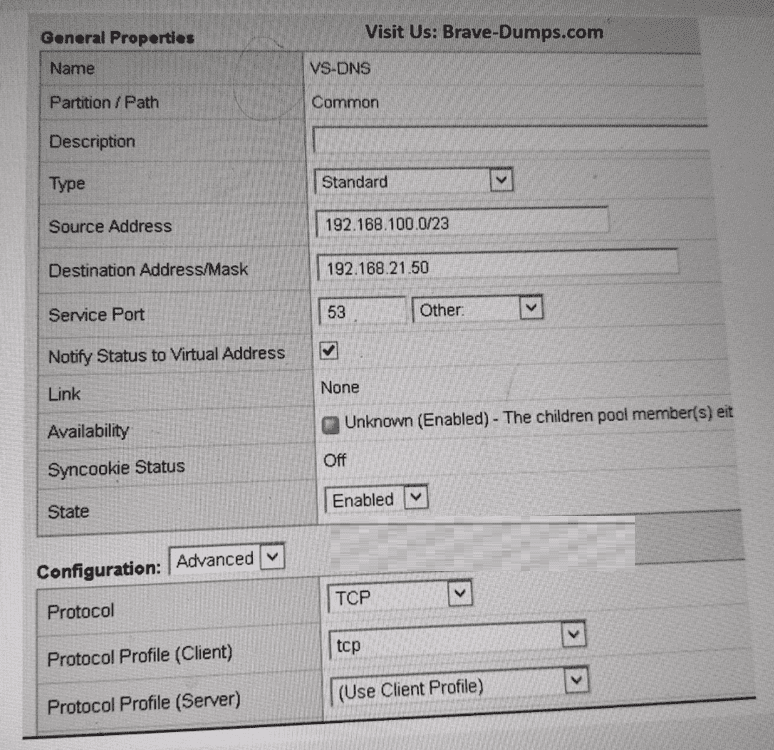

DNS traffic is primarily transported using UDP port 53. In the exhibit, the Virtual Server is configured with the Protocol set to TCP, which prevents standard DNS queries from being processed correctly. BIG-IP Virtual Servers must be configured with the correct Layer 4 protocol to match the application traffic they are handling.

According to the BIG-IP Administration: Data Plane Configuration documentation:

The Protocol setting on a Virtual Server defines whether traffic is processed as TCP, UDP, or another supported transport protocol.

Standard DNS queries and responses use UDP, while TCP is only required for DNS zone transfers (AXFR) or exceptionally large responses.

When a DNS Virtual Server is incorrectly configured with TCP, UDP-based DNS queries are dropped, causing all requests to fail.

Why the other options are incorrect:

A . Protocol profile (Client) to DNS_OPTIMIZEDA DNS profile enhances DNS functionality but does not correct an incorrect transport protocol configuration.

B . Type to Performance (HTTP)Performance (HTTP) Virtual Servers are designed for HTTP traffic and are not suitable for DNS services.

C . Source Address to 192.168.10.0/24The existing source IPs already fall within the allowed range, so this setting does not address the failure.

Correct Resolution:

Changing the Protocol to UDP aligns the Virtual Server with standard DNS transport requirements, allowing DNS queries to be successfully processed and load-balanced.

Standard BIG-IP administration dictates that hardware-level physical attributes are managed within the Network section of the configuration. When a network switch and a BIG-IP fail to successfully negotiate speed and duplex settings (Auto-Negotiation), it can result in CRC errors, late collisions, or a total lack of link. To resolve this manually, the administrator must navigate to the Configuration Utility (GUI) and go to Network > Interfaces.
