Understanding the default behavior of a Standard Virtual Server regarding address and port translation is fundamental to BIG-IP administration.

Source Address Translation (SNAT): By default, the BIG-IP system does not perform Source Address Translation (SNAT). This means that the packet's source IP address (the Client IP) remains preserved as it passes through the BIG-IP to the pool member. This is critical for backend servers to identify the original client for logging and security purposes. Therefore, the client IP address is unchanged between the client-side and server-side connections.

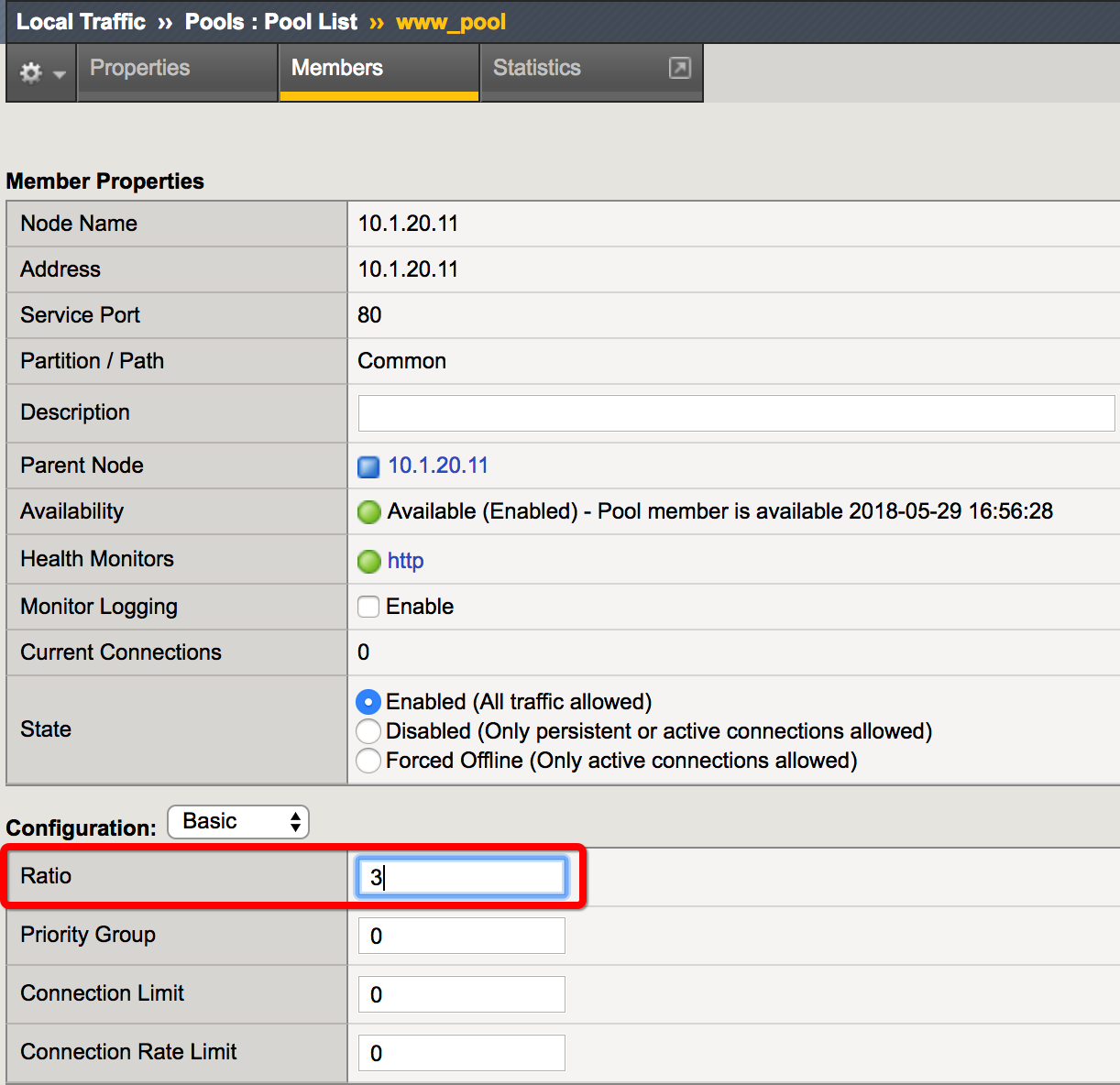

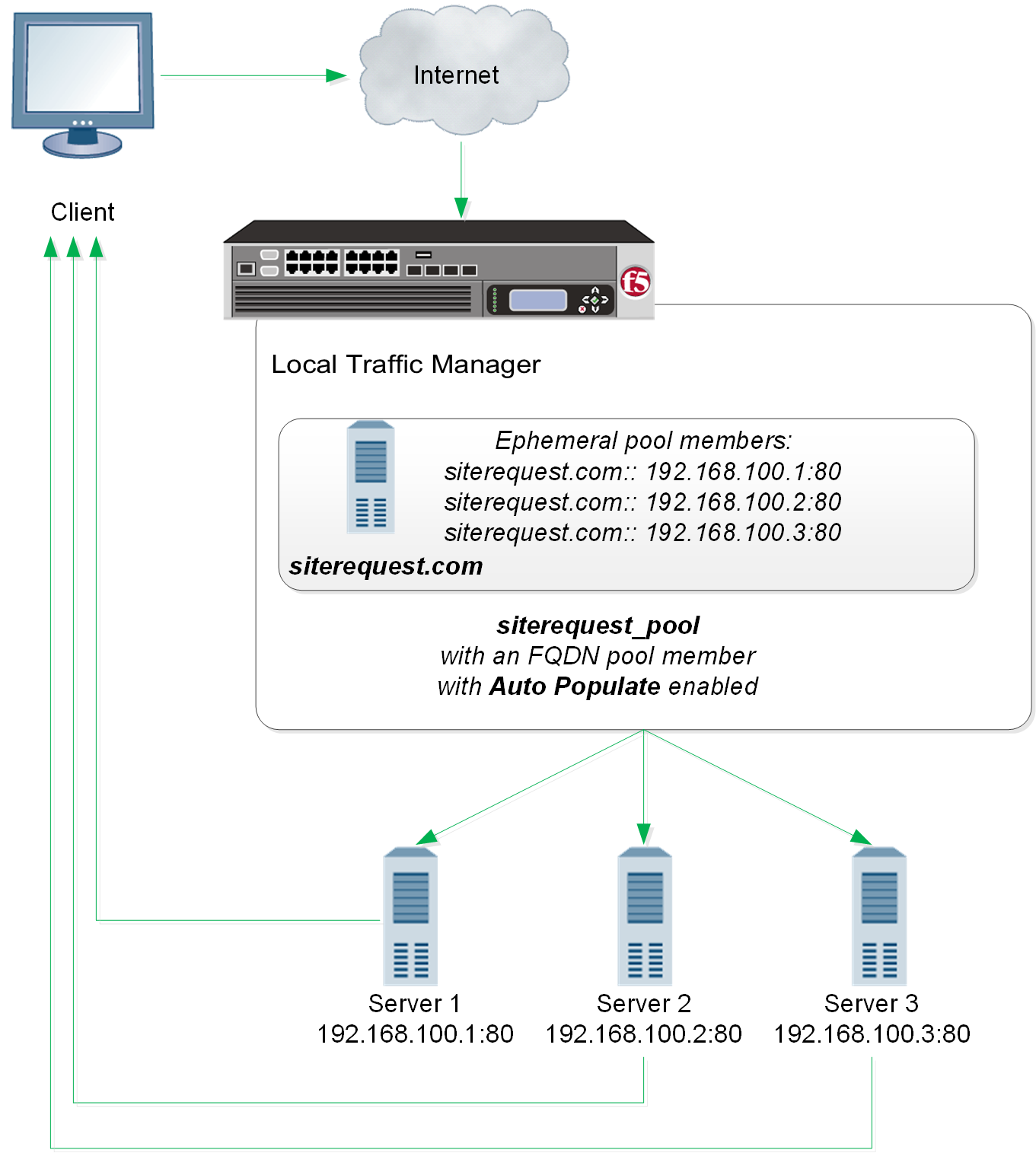

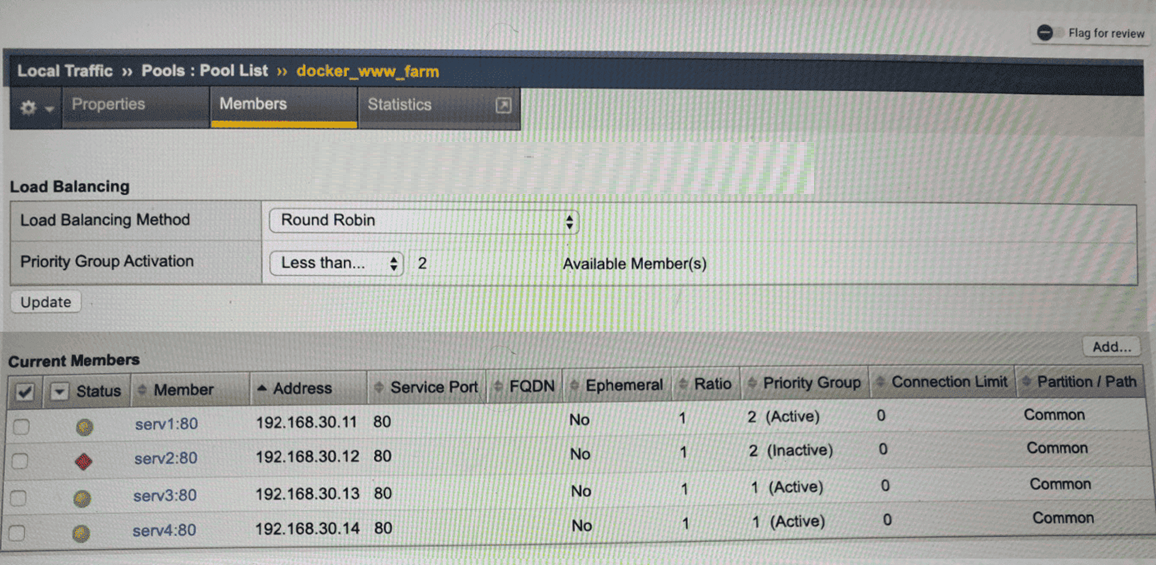

Destination Address Translation (DAT): By default, a Standard Virtual Server always performs Destination Address Translation. The BIG-IP system changes the destination IP from the Virtual Server's IP address to the IP address of the specific Pool Member selected by the load balancing algorithm. Consequently, the server-side destination IP is different from the client-side destination IP.

Port Translation: By default, Port Translation is enabled. If a Virtual Server is listening on port 80 and the selected pool member is configured for port 8080, the BIG-IP will translate the destination port. Even if the ports happen to be the same, the setting allows for change, whereas the default SNAT setting (None) ensures the client IP remains static.

When managing a large environment with hundreds of Virtual Servers, the most efficient way to identify the relationship between an iRule and the objects it manages is to view the properties of the iRule itself.

iRule Properties: Within the BIG-IP Configuration Utility, navigating to Local Traffic > iRules and selecting a specific iRule provides a 'Statistics' or 'Usage' tab (depending on the version). This view explicitly lists all Virtual Servers currently associated with that specific iRule.

Centralized Management: Instead of manually checking 235 individual Virtual Servers under the 'Virtual Servers' menu, the iRules menu acts as a central point of reference for that specific logic.

Data Plane Impact: Because iRules can modify traffic flow, headers, and load balancing decisions, seeing the full list of affected Virtual Servers is critical before making adjustments to avoid unintended side effects across the application portfolio.

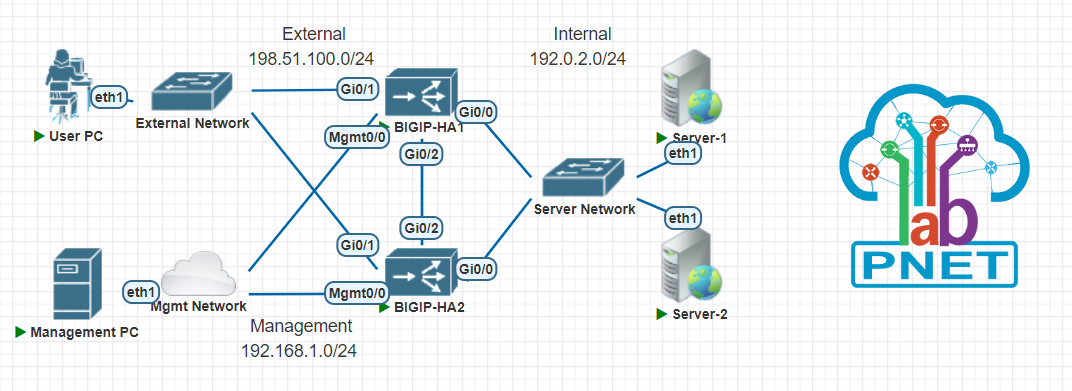

In the F5 BIG-IP ecosystem, a trunk is a logical grouping of two or more physical interfaces that the system treats as a single data path. This configuration is based on the Link Aggregation Control Protocol (LACP) or static link aggregation.

Trunks provide two primary benefits to the data plane:

Increased Bandwidth: By aggregating multiple physical interfaces (e.g., combining two 10Gbps interfaces), the aggregate throughput of the logical connection is increased. This allows the BIG-IP to handle higher traffic volumes than a single interface could support.

Link Redundancy: Trunks provide high availability at the physical layer. If one physical interface within the trunk fails or the cable is disconnected, the BIG-IP system automatically redistributes traffic across the remaining active interfaces in the trunk. This prevents a single cable or port failure from causing a network outage.

Why the other options are incorrect:

Option C: While VLAN tags are often used on trunks, the ability to use tagged VLANs is a property of the VLAN configuration and 802.1Q tagging, not the trunk itself. A single interface can support tagged VLANs without being part of a trunk.

Option D: Trunks are agnostic to the type of application traffic (such as VoIP) passing through them. They operate at Layer 2 to provide a reliable pipe for any Layer 3+ traffic.

In BIG-IP terminology, a Trunk is the object used to implement Link Aggregation (IEEE 802.3ad/802.1AX). When a network engineer refers to 'interface binding' or 'EtherChannel' with LACP, the BIG-IP equivalent is a Trunk.

LACP (Link Aggregation Control Protocol): This is a protocol that allows the BIG-IP system to communicate with the upstream switches to negotiate the bundling of multiple physical links into a single logical link.

Resilience and Redundancy: By creating a trunk that includes interfaces connected to two different switches (typically configured as a VPC, VSS, or MLAG cluster on the switch side), the administrator ensures that the BIG-IP remains reachable even if one physical interface or one switch fails.

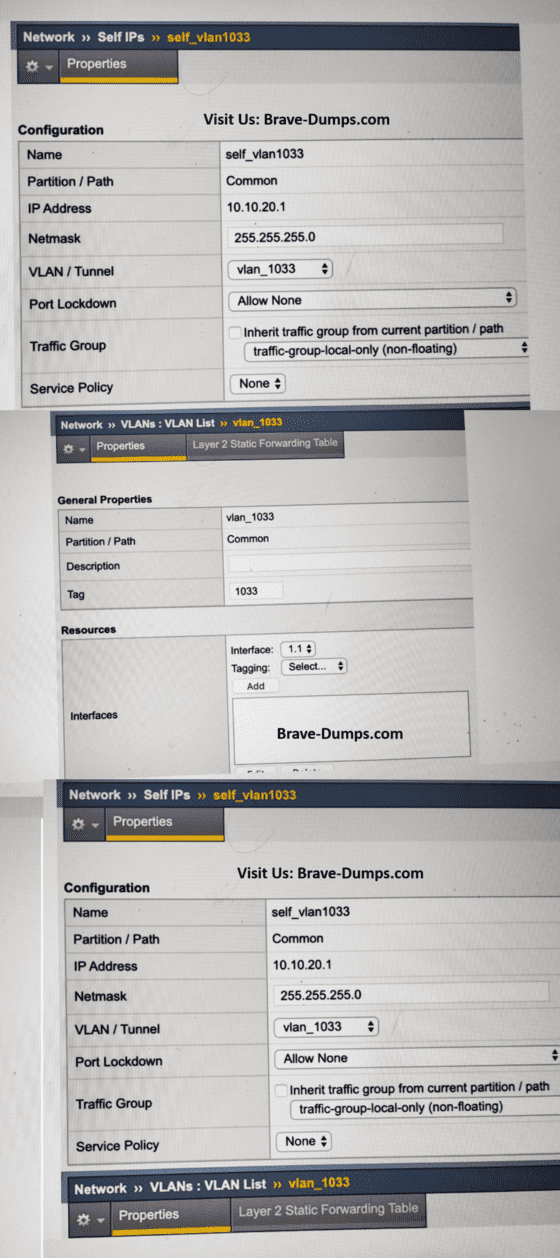

Data Plane Logic: The BIG-IP treats the trunk as a single Layer 2 interface. VLANs are then associated with the trunk rather than individual physical ports.

Why the other options are incorrect:

Option B: Trunks aggregate physical interfaces. While VLANs are associated with trunks, the trunk configuration itself does not 'list' MAC addresses of the switches; it uses LACP to negotiate the connection.

Options C & D: Virtual Servers are Layer 4-7 objects used for traffic processing and load balancing. They do not possess 'LACP profiles,' nor are physical interfaces or management IPs treated as pool members for the purpose of link aggregation.

In a large-scale BIG-IP environment with hundreds of virtual servers, the Network Map is the most effective tool for visualizing and auditing the relationships between various ADC objects.

The Network Map Functionality: The Network Map provides a hierarchical view of the local traffic objects. It allows an administrator to see the status and dependencies of Virtual Servers, Pools, Pool Members, and associated iRules all in one screen.

Search and Filter: By navigating to Local Traffic > Network Map, the administrator can use the Advanced Filter. This feature allows for searching specifically for an iRule name or a string within an iRule definition. Once the filter is applied, the system displays only the Virtual Servers that are associated with that specific iRule.

Efficiency: While the 'Virtual Server List' (Option D) can be customized to show columns for iRules, it is often cumbersome to scroll through hundreds of entries. The 'iRules List' (Option B) displays the scripts themselves but does not provide a reverse-lookup list of all associated virtual servers in a single view as efficiently as the Network Map.

Summary of Relationships: The Network Map is specifically designed to answer the question, 'What is this object connected to?' making it the primary administrative interface for impact analysis during configuration changes.
