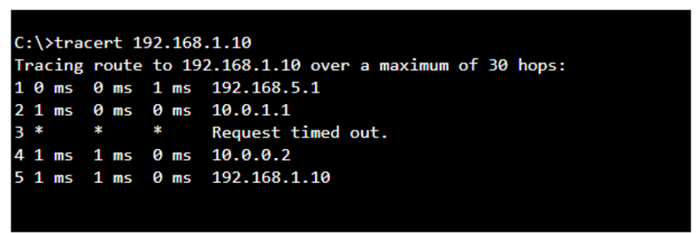

The tracert command output shows the path taken to reach the destination IP address, 192.168.1.10. The command output indicates:

* Hops 1 and 2 are successfully reached.

* Hop 3 times out, meaning the router at hop 3 did not respond to the tracert request. However, this does not necessarily indicate a problem with forwarding packets, as some routers may be configured to block or not respond to ICMP requests.

* Hops 4 and 5 are successfully reached, with hop 5 being the destination IP 192.168.1.10, indicating that the server is reachable.

Thus, the correct answer is C. The server with the address 192.168.1.10 is reachable over the network.

* Cisco Traceroute Command

* Understanding Traceroute

The tracert command output indicates that the server with the address 192.168.1.10 is reachable over the network. The asterisk (*) at hop 3 suggests that the probe sent to that hop did not return a response, which could be due to a variety of reasons such as a firewall blocking ICMP packets or the router at that hop being configured not to respond to ICMP requests. However, since the subsequent hops (4 and 5) are showing response times, it means that the packets are indeed getting through and the server is reachable12.

* How to Use Traceroute Command to Read Its Results

* How to Use the Tracert Command in Windows

When devices within a VLAN are unable to reach addresses outside their VLAN, it typically indicates that they do not have a configured path to external networks. The engineer should configure a default gateway for VLAN2. The default gateway is the IP address of the router's interface that is connected to the VLAN, which will route traffic from the VLAN to other networks12.

* Understanding and Configuring VLAN Routing and Bridging on a Router Using the IRB Feature

* VLAN 2 not able to ping gateway - Cisco Community

=========================

* VLANs: Virtual Local Area Networks (VLANs) logically segment network traffic to improve security and performance. Devices within the same VLAN can communicate directly.

* Default Gateway: For devices in VLAN2 to communicate with devices outside their VLAN, they need a default gateway configured. The default gateway is typically a router or Layer 3 switch that routes traffic between different VLANs and subnets.

* Additional VLAN: Not needed in this scenario as the issue is related to routing traffic outside VLAN2, not creating another VLAN.

* Default Route: While a default route on the router may be necessary, the primary issue for devices within VLAN2 is to have a configured default gateway.

* Static Route: This is used on routers to manually specify routes to specific networks but does not address the need for a default gateway on the client devices.

* Cisco VLAN Configuration Guide: Cisco VLAN Configuration

* Understanding and Configuring VLANs: VLANs Guide

Statement A: 'A detailed description of the fault.' This is essential for support staff to understand the nature of the problem and begin troubleshooting effectively.

Statement C: 'A description of the conditions when the fault occurs.' This helps in reproducing the issue and identifying patterns that might indicate the cause of the fault.

Statement B: 'Details about the computers connected to the network.' While useful, this is not as immediately critical as understanding the fault itself and the conditions under which it occurs.

Statement D: 'The actions taken to resolve the fault.' This is important but typically follows the initial report.

Statement E: 'The description of the top-down fault-finding procedure.' This is more of a troubleshooting methodology than information typically included in an initial support ticket.

Best Practices for Submitting Support Tickets: Support Ticket Guidelines

The private IP address ranges that are set aside specifically for use within private networks and not routable on the internet are as follows:

Class A: 10.0.0.0 to 10.255.255.255

Class B: 172.16.0.0 to 172.31.255.255

Class C: 192.168.0.0 to 192.168.255.255

These ranges are defined by the Internet Assigned Numbers Authority (IANA) and are used for local communications within a private network123.

Given the options: A. 172.16.0.0 to 172.31.255.255 falls within the Class B private range. B. 192.16.0.0 to 192.16.255.255 is not a recognized private IP range. C. 11.0.0.0 to 11.255.255.255 is not a recognized private IP range. D. 192.168.0.0 to 192.168.255.255 falls within the Class C private range.

Therefore, the correct selections that the company should use for their private networks are A and D.

Reserved IP addresses on Wikipedia

Private IP Addresses in Networking - GeeksforGeeks

Understanding Private IP Ranges, Uses, Benefits, and Warnings

Firewall: A firewall is a network security device that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It permits or denies traffic based on IP addresses, port numbers, or applications.

Access Point: This is a device that allows wireless devices to connect to a wired network using Wi-Fi. It does not perform traffic filtering based on IP, port, or application.

VPN Gateway: This device allows for secure connections between networks over the internet, but it is not primarily used for traffic filtering based on IP, port, or application.

Intrusion Detection System (IDS): This device monitors network traffic for suspicious activity and policy violations, but it does not actively permit or deny traffic.

Understanding Firewalls: Firewall Basics
