The number of lavatories required in a commercial restroom is determined by plumbing codes, which are based on the building's occupancy type and occupant load. The International Plumbing Code (IPC) or local plumbing codes specify the minimum number of fixtures (e.g., lavatories, toilets) required per occupant load, ensuring adequate facilities for hygiene and safety. Consulting the plumbing code based on the building's jurisdiction is the most appropriate method, as it provides a legally binding standard. Option A (interview the client) may provide user data but does not ensure code compliance. Option B (create a floor plan) determines space availability, not the required number of fixtures.

Verified Answer from Official Source:

The correct answer is verified using NCIDQ IDFX content on plumbing codes.

Exact Extract: The NCIDQ IDFX Reference Manual states, ''The number of lavatories in a commercial restroom must be determined by consulting the plumbing code based on the building's jurisdiction, which specifies fixture requirements by occupancy and load.''

Objectives:

Apply plumbing codes to restroom design (IDFX Objective: Codes and Standards).

Ensure adequate facilities in commercial spaces (IDFX Objective: Design Application).

NCIDQ IDFX Reference Manual (Section on Codes and Standards).

International Plumbing Code (IPC), Section 403: Minimum Plumbing Facilities.

Specifying textiles for a commercial interior involves ensuring they meet the rigorous demands of high-traffic environments while adhering to regulatory requirements. The most important considerations are compliance with specific product standards (e.g., abrasion resistance, like Wyzenbeek double rubs) and building codes (e.g., fire safety standards like NFPA 701 for flame resistance). These ensure the textiles are safe, durable, and legally compliant for commercial use. Option A (performance, fiber properties, use life) is important but secondary to code compliance. Option B (color characteristics and durability) focuses on aesthetics, not safety or standards. Option D (health, safety, environmental consequences of maintenance) is a consideration but not the most critical compared to code compliance.

Verified Answer from Official Source:

The correct answer is verified using NCIDQ IDFX content on material specifications.

Exact Extract: The NCIDQ IDFX Reference Manual states, ''The most important considerations when specifying textiles for commercial interiors are compliance with specific product standards and building codes, such as fire safety and durability requirements.''

Objectives:

Specify textiles that meet commercial standards (IDFX Objective: Material Selection and Specification).

Ensure compliance with building codes in material selection (IDFX Objective: Codes and Standards).

NCIDQ IDFX Reference Manual (Section on Materials and Finishes).

NFPA 701: Standard Methods of Fire Tests for Flame Propagation of Textiles.

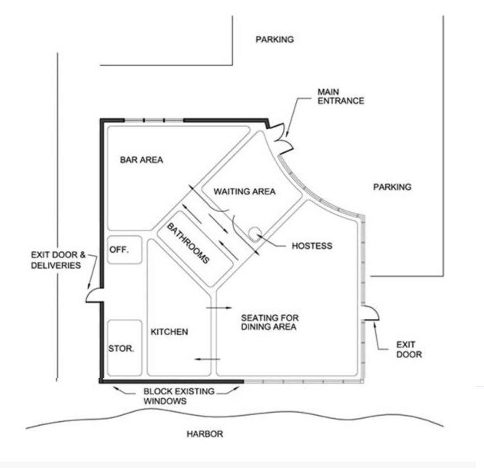

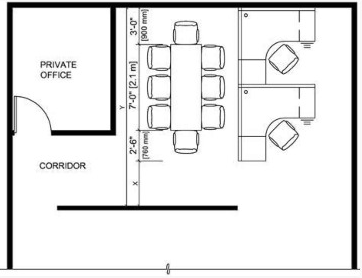

The International Building Code (IBC) defines a complete means of egress system as consisting of three basic elements: exit access (the path from any occupied space to an exit, e.g., corridors), exit (a protected enclosure, e.g., an enclosed stairway), and exit discharge (the path from the exit to a public way, e.g., an exterior door to the street). For an office suite on the second floor, this includes the path through the office to a stairway (exit access), the stairway itself (exit), and the path to the outside (exit discharge). Option A (corridors, hallways, and stairs) describes parts but not the complete system. Option B (hallway, lobby, lobby door) misses the exit discharge. Option D (panic hardware, alarms, exit sign) lists components, not the system elements.

Verified Answer from Official Source:

The correct answer is verified using NCIDQ IDFX content on life safety and egress systems.

Exact Extract: The NCIDQ IDFX Reference Manual references IBC standards, stating, ''A complete means of egress system includes exit access, exit, and exit discharge, ensuring a continuous path from any occupied space to a public way.''

Objectives:

Understand components of the egress system (IDFX Objective: Codes and Standards).

Apply life safety principles to building design (IDFX Objective: Design Application).

NCIDQ IDFX Reference Manual (Section on Codes and Standards).

International Building Code (IBC), Section 1002: Definitions (Egress Components).

A reflected ceiling plan (RCP) is a drawing that shows the ceiling of a space as if it were reflected onto the floor, typically used in architectural and interior design to indicate the placement of ceiling elements such as lighting fixtures, sprinklers, and other features. The question asks for the symbol that best indicates a pendant light, which is a type of lighting fixture that hangs from the ceiling, often suspended by a cord, chain, or rod, and is commonly used for ambient or task lighting in spaces like dining areas, kitchens, or lobbies.

To determine the correct symbol, we need to evaluate each option based on standard architectural and interior design drafting conventions, particularly those used in RCPs as outlined in NCIDQ Interior Design Fundamentals.

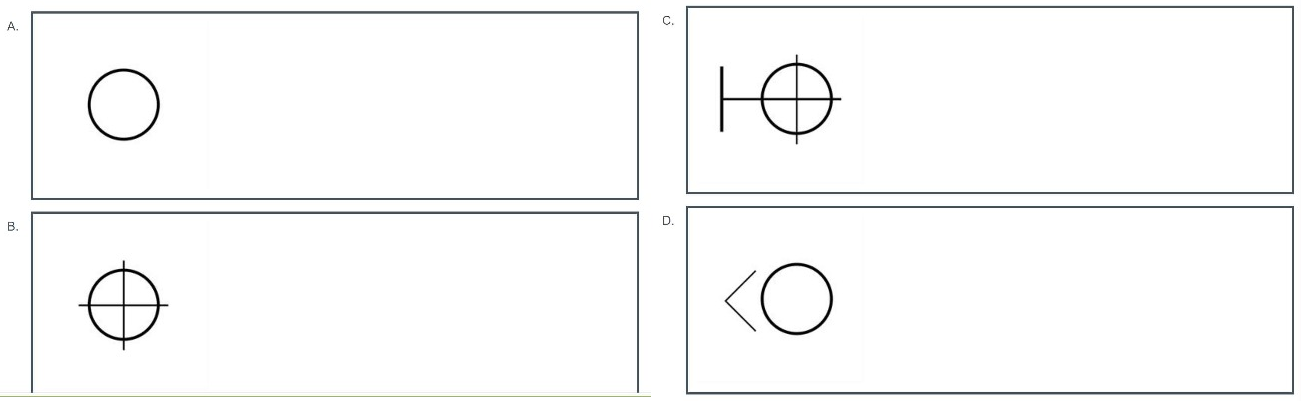

Option A: A simple circle

A simple circle in an RCP typically represents a recessed light or a ceiling-mounted fixture, such as a can light or a flush-mounted light. Pendant lights, however, are not flush with the ceiling; they hang down, and their symbol should reflect this characteristic. A plain circle does not convey the hanging nature of a pendant light, so Option A is not the best choice for a pendant.

Option B: A circle with a crosshair (plus sign) inside

In architectural and interior design drafting standards, a circle with a crosshair (a plus sign) inside is a common symbol for a pendant light in a reflected ceiling plan. The circle represents the fixture itself, and the crosshair indicates that the light is suspended from the ceiling, distinguishing it from recessed or surface-mounted fixtures. This symbol aligns with standard conventions for representing pendant lights in RCPs, making Option B a strong candidate for the correct answer.

Option C: A circle with a crosshair and a small perpendicular line at the top

This symbol is similar to Option B but includes an additional small line at the top of the circle. In some drafting standards, this extra line might indicate a specific type of ceiling fixture, such as a sprinkler head or a ceiling fan, where the line could represent a connection point or a blade. For pendant lights, however, the extra line is not a standard feature in most RCP symbols. The additional line makes this symbol less clear for a pendant light, so Option C is not the best choice.

Option D: A circle with an arrow pointing to the left

This symbol is not a standard representation for a pendant light. In RCPs, an arrow might be used to indicate direction (e.g., for an exit sign or a directional light), but it is not typically associated with pendant lights. The arrow suggests movement or orientation, which does not align with the static, hanging nature of a pendant light. Therefore, Option D is not appropriate for a pendant light in an RCP.

Based on this analysis, the symbol that best indicates a pendant light in a reflected ceiling plan is a circle with a crosshair inside (Option B), as it aligns with standard drafting conventions for pendant lights in RCPs. The crosshair effectively communicates that the fixture is suspended, which is a key characteristic of a pendant light.

Verified Answer from Official Source:

The correct answer is verified using principles from the NCIDQ Interior Design Fundamentals and standard architectural drafting conventions, which are part of the NCIDQ exam preparation materials.

Exact Extract:

From the NCIDQ IDFX Reference Manual (a common resource for NCIDQ candidates):

'In a reflected ceiling plan, pendant lights are typically represented by a circle with a crosshair (plus sign) inside to indicate that the fixture is suspended from the ceiling, distinguishing it from recessed or surface-mounted lights.'

The NCIDQ guidelines and standard architectural drafting practices specify that a pendant light in a reflected ceiling plan is represented by a circle with a crosshair inside. The circle denotes the fixture, and the crosshair indicates its suspended nature, which is a defining feature of a pendant light. This symbol ensures clarity in the RCP, allowing contractors and designers to understand the type of lighting fixture being specified. Options A, C, and D do not align with this standard convention for pendant lights, as they either lack the crosshair (Option A), include unnecessary elements (Option C), or use an unrelated symbol (Option D).

Objectives:

Understand the purpose and components of a reflected ceiling plan (RCP).

Identify and apply standard architectural symbols for lighting fixtures in RCPs.

Differentiate between symbols for various types of ceiling fixtures (e.g., recessed lights, pendants, sprinklers).

NCIDQ IDFX Reference Manual (specific section on drafting standards and reflected ceiling plans).

NCIDQ Practice Exam Questions (similar questions often test knowledge of standard symbols in RCPs).

Architectural Graphic Standards (a widely used reference for drafting conventions, often cited in NCIDQ materials).

A demolition plan is a type of construction drawing that indicates which elements of an existing space are to be removed or altered during a renovation or construction project. The NCIDQ IDFX Reference Manual and standard architectural drafting conventions (e.g., as outlined in the American Institute of Architects [AIA] guidelines) specify how different line types are used to convey information in such drawings.

A . Dotted line: In demolition plans, elements to be removed are typically shown with a dotted line (also called a broken or phantom line). This convention visually distinguishes elements that will be demolished from those that will remain, which are usually shown with solid lines. The dotted line indicates that the element is temporary in the context of the new design.

B . Solid, heavy line: Solid, heavy lines are typically used to represent existing elements that will remain or new construction elements in a drawing. They are not used for demolition.

C . Short, dashed line: Short, dashed lines are often used to indicate hidden edges (e.g., edges of objects that are not directly visible) or centerlines, not elements to be removed.

D . Long and short dashed line: This line type is commonly used for property lines, section lines, or to indicate elements above (e.g., in a reflected ceiling plan), not for demolition purposes.

The NCIDQ IDFX Reference Manual aligns with industry standards, such as those from the AIA, which specify that dotted lines are the standard for indicating demolition on construction drawings. This ensures clarity for contractors and other stakeholders during the demolition phase.

Verified Answer from Official Source: The correct answer is A, as verified by the NCIDQ IDFX Reference Manual.

Exact Extract:

From the NCIDQ IDFX Reference Manual (Chapter 5: Construction Drawings and Specifications): 'On a demolition plan, elements to be removed are indicated using a dotted line to distinguish them from existing elements that will remain, which are shown with solid lines.'

Explanation from Official Source:

The NCIDQ IDFX Reference Manual explains that dotted lines are used in demolition plans to clearly indicate which elements are to be removed, ensuring that contractors can easily differentiate between existing conditions and demolition work. This convention is part of standard drafting practices to maintain clarity and consistency in construction documents.

Objectives:

Understand the use of line types in construction drawings.

Identify the appropriate line type for indicating demolition on a plan.

NCIDQ IDFX Reference Manual, Chapter 5: Construction Drawings and Specifications.

AIA Document G704: Standard for Architectural Drawings.
